Motorola Edge (2022) Back Cover Replacement

Geschrieben von: Spencer Day
  • Kommentare: 0
Motorola Edge (2022) Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 - 40 Minuten

Einleitung

Use this guide to remove or replace the back cover on your Motorola Edge (2022).

You'll need replacement adhesive to complete this repair.

  1. mAD3kSnCr6vwg3XZ

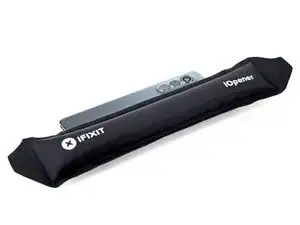

    • Completely power off your phone before you begin.

    • Heat an iOpener and apply it to the back cover's right edge for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. MbE5y3sb2aqHjA6U
    MbE5y3sb2aqHjA6U
    WytGf1BmOS1yXHb4
    p5PfJbxQFUavKAUv

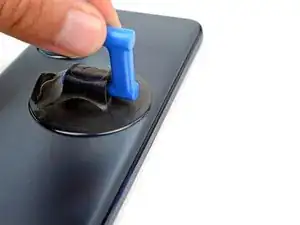

    • Apply a suction cup to the back of the phone, as close to the middle of the right edge as possible.

    • Pull up on the suction cup with a strong, steady force to create a gap between the back cover and the frame.

    • Depending on the age of your phone, this may be difficult. If you're having trouble, apply more heat to the edge and try again.

    • Insert an opening pick into the gap.

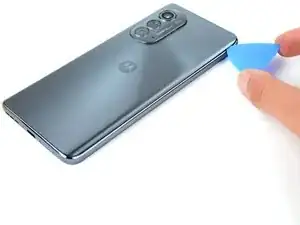

  3. rJna1rVElAklcIi2
    rJna1rVElAklcIi2
    5N4dQrQwxTpQ25yS

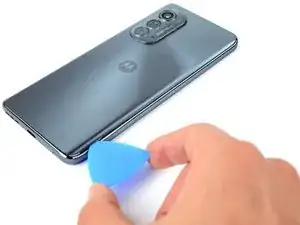

    • Slide the pick along the right edge to slice the adhesive.

    • Leave the pick in the bottom right edge to prevent the adhesive from resealing.

  4. EGl4JjA5LhM2q4Xi

    • Apply a heated iOpener to the back cover's bottom edge for two minutes.

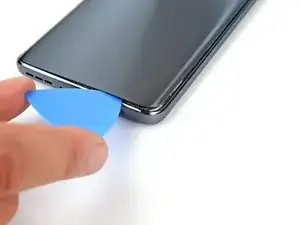

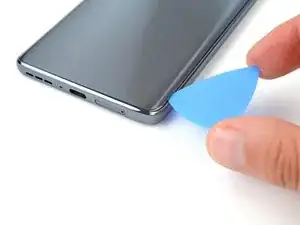

  5. MockXUEMMMHaQQAZ
    MockXUEMMMHaQQAZ
    LXJkGAu135AEFOLM

    • Rotate the pick around the bottom right corner to slice the adhesive.

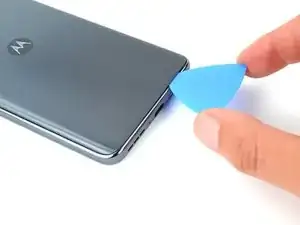

  6. lZXNDP1KSF35rxp5
    lZXNDP1KSF35rxp5
    YZKAeoopsSfl3BFF

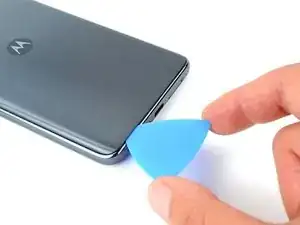

    • Slide the pick along the bottom edge to slice the adhesive.

    • Leave the pick in the bottom left edge to prevent the adhesive from resealing.

  7. cpWAKw5nN6CSwLOd

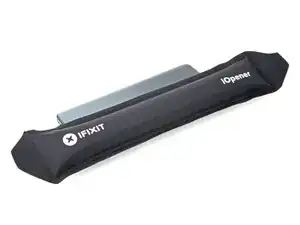

    • Apply a heated iOpener to the back cover's left edge for two minutes.

  8. ZAGaQkElY1fAlm55
    ZAGaQkElY1fAlm55
    ayfA1rtQC1FHEngH

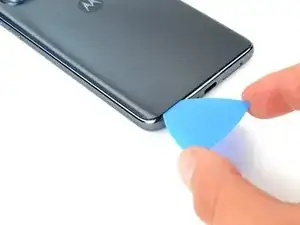

    • Rotate the pick around the bottom left corner to slice the adhesive.

  9. PyLaOtQpObFwEFZP
    PyLaOtQpObFwEFZP
    2LjABBTQMNLquOPQ

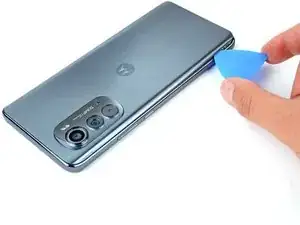

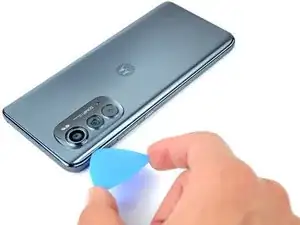

    • Slide the pick along the edge to slice the adhesive.

    • Leave the pick in the top left edge to prevent the adhesive from resealing.

  10. heHJGmBRhAgBn4US

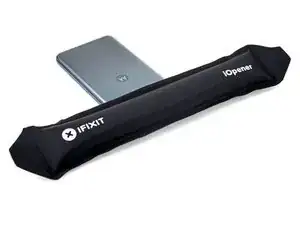

    • Apply a heated iOpener to the back cover's top edge for two minutes.

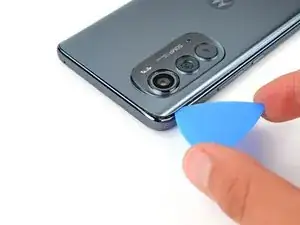

  11. DjjdJgl3TU6SjOMN
    DjjdJgl3TU6SjOMN
    KcIpBLWFMUUlIPZS

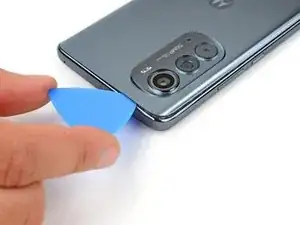

    • Rotate the pick around the top left corner to slice the adhesive.

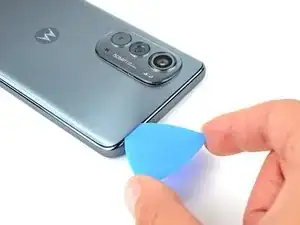

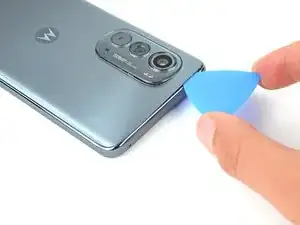

  12. TfbpBv1I3FsLcfBb
    TfbpBv1I3FsLcfBb
    pbDmweuTYHMO5g1T

    • Slide the pick along the top edge to slice the adhesive.

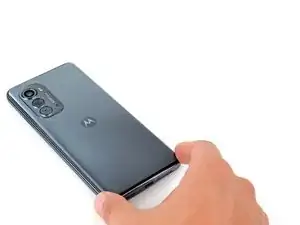

  13. gm4MRaluYBfCZdED
    gm4MRaluYBfCZdED
    ZHPn4KBUTTCukD4J

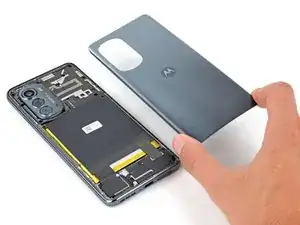

    • Lift the back cover from the phone and remove it.

    • If the back cover is still stuck to the midframe, slide an opening pick around the edges of the phone until the cover separates completely.

Abschluss

To reassemble your device, follow the instructions in reverse order.

Follow this guide to replace the back cover adhesive.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
