Motorola Edge (2022) Camera Bezel Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the camera bezel on your Motorola Edge (2022).

You'll need replacement adhesive in order to complete this repair.

  1. QY2vHKsJYvRvwZRM

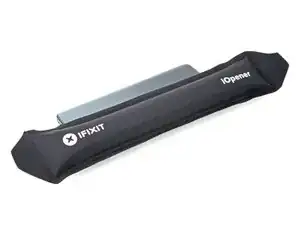

    • Heat an iOpener and apply it to the back cover's right edge for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. C4ElphVvSgMaTRpJ
    C4ElphVvSgMaTRpJ
    YKDEK1EZZiC5FRED

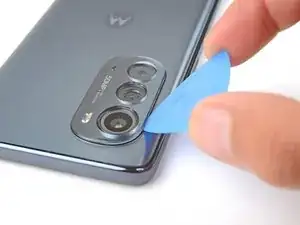

    • Insert an opening pick between the camera bezel and the back cover.

  3. UVEWtINmVxZE11AK
    UVEWtINmVxZE11AK
    YLiNTAOVQg3S4t5Y

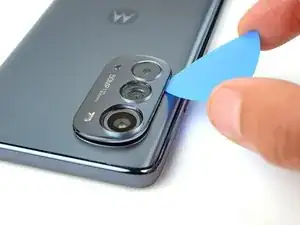

    • Slide the pick around the perimeter of the camera bezel to slice all the adhesive securing the bezel.

    • You may have to repeat this process multiple times to completely cut all of the adhesive.

  4. s6TpZS6XuqEotMHa
    s6TpZS6XuqEotMHa
    ZvKpfX6ewK2RwWSy

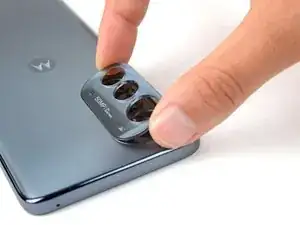

    • Lift the camera bezel away from the phone and remove it.

Abschluss

To reassemble your device, follow the instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
