Motorola Edge Display Panel Replacement

Find the SIM tray located at the top of the phone.

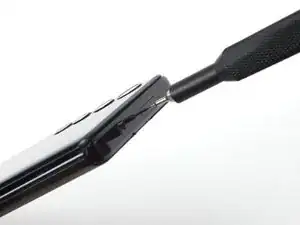

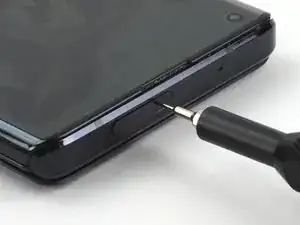

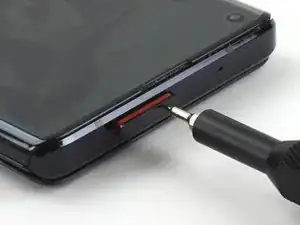

Insert a SIM eject tool or SIM eject bit into the small hole in the SIM card tray.

Press to eject the tray.

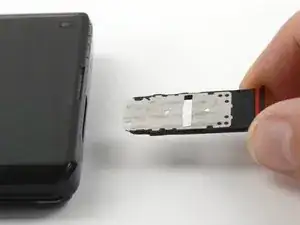

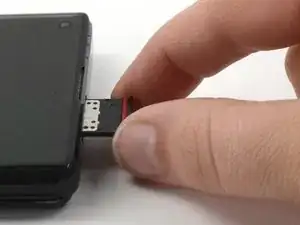

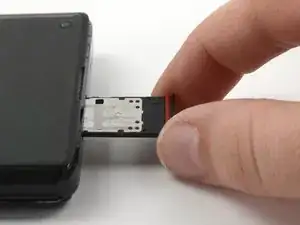

Remove the SIM card tray from the phone.

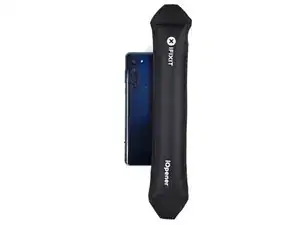

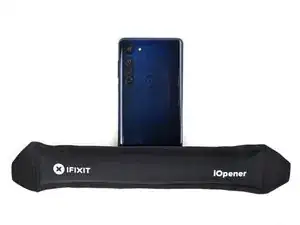

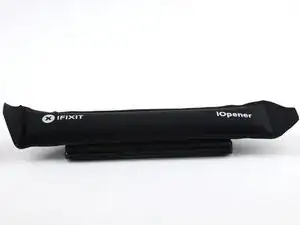

Heat an iOpener, then apply it along the bottom edge of the back cover for two minutes.

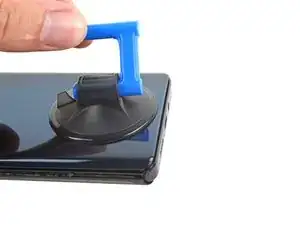

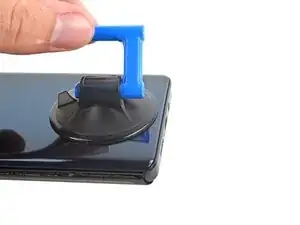

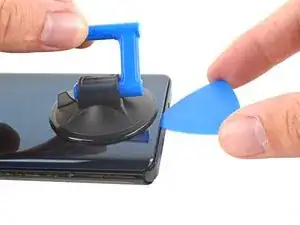

Apply a suction cup to the back of the phone, as close to the center of the bottom edge as possible.

Pull up on the suction cup with strong, steady force to create a gap between the back cover and the frame.

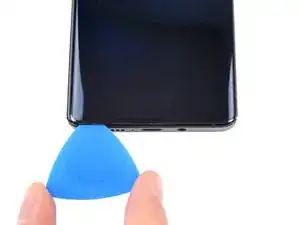

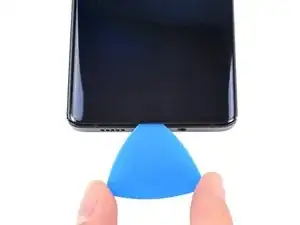

Insert an opening pick into the gap.

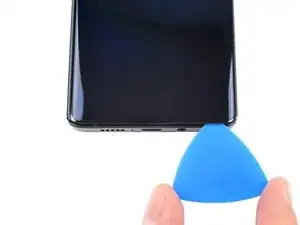

Slide the pick back and forth along the bottom edge to slice through the adhesive.

Leave the pick in to prevent the adhesive from resealing.

Apply a heated iOpener to the back cover's right edge for two minutes.

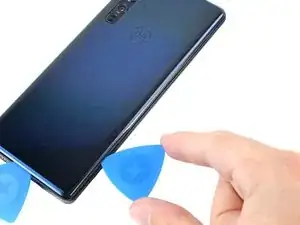

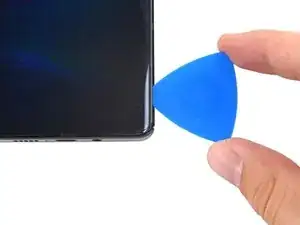

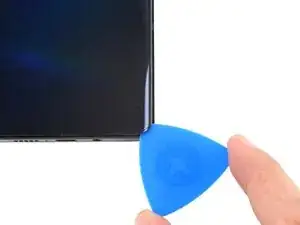

Rotate the opening pick around the bottom-right corner of the phone.

Insert a new opening pick into the gap you just created.

Slide the pick along the right edge of the phone to separate the adhesive.

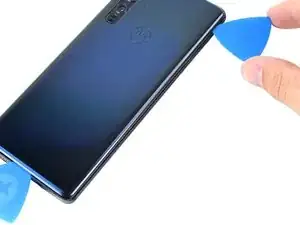

Repeat the heating, slicing, and leaving opening picks for the remaining edges of the device.

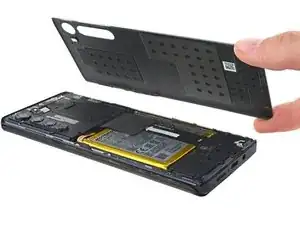

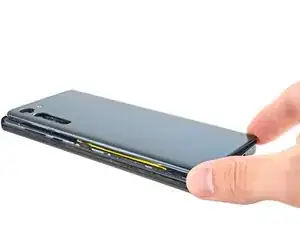

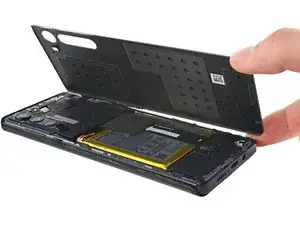

Remove the back cover, taking care not to damage the components inside the phone.

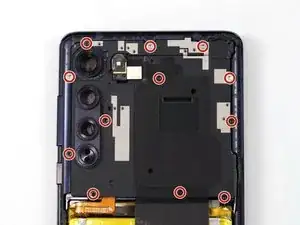

Use a T5 Torx screwdriver to remove the twelve 3.4 mm-long screws securing the motherboard cover.

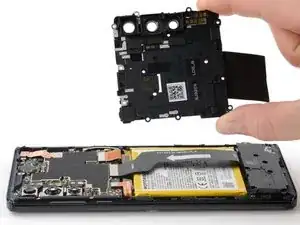

Use a pair of blunt tweezers or your fingers to lift up and remove the motherboard cover.

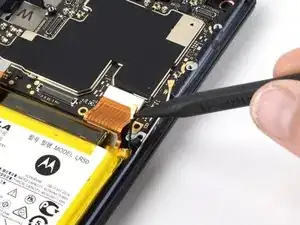

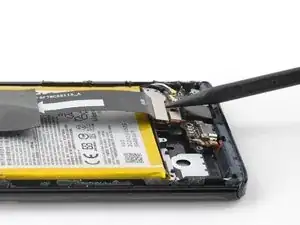

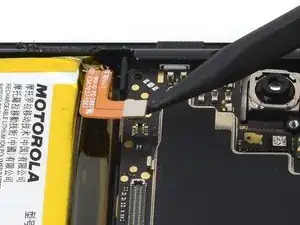

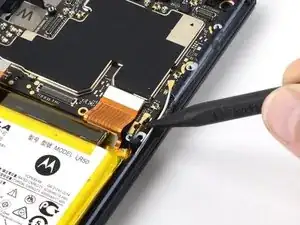

Use a spudger to pry up and disconnect the battery cable's press connector from the motherboard.

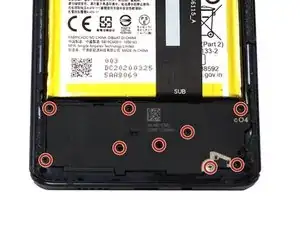

Use a T5 Torx screwdriver to remove the nine 3.4 mm screws securing the daughterboard.

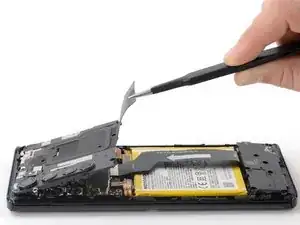

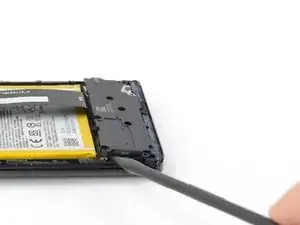

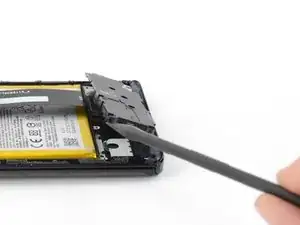

Use a spudger to pry up the plastic daughterboard cover and disconnect it from the rest of the phone.

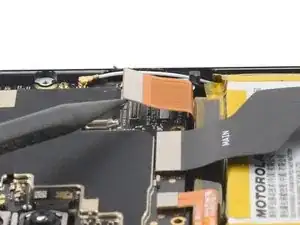

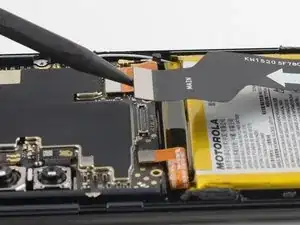

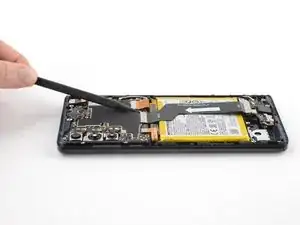

Use a spudger to pry up and disconnect the interconnect cable's press connector from the motherboard.

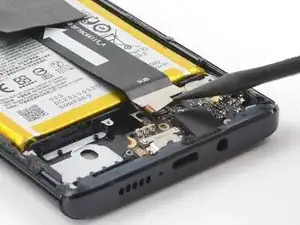

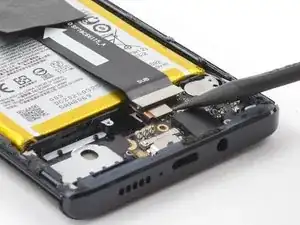

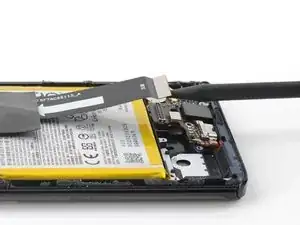

Use a spudger to pry up and disconnect the interconnect cable's press connector from the daughterboard.

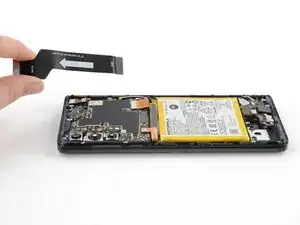

Use your fingers to remove the interconnect cable after it has been disconnected from both the motherboard and daughterboard.

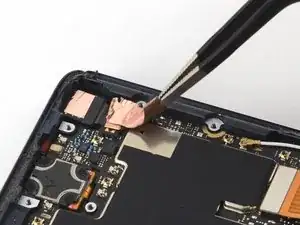

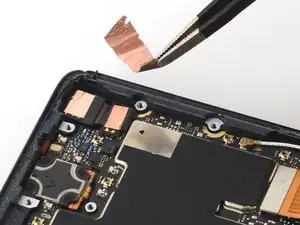

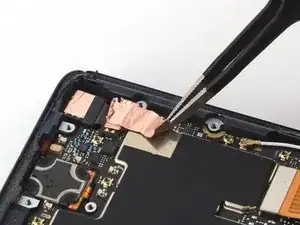

Use a pair of blunt tweezers to peel up and remove the copper tape covering the front camera ribbon cable.

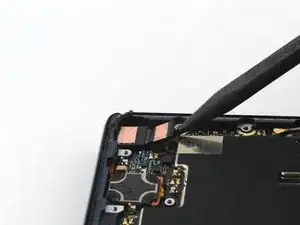

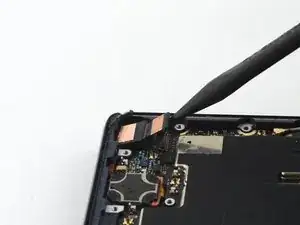

Use a spudger to pry up the front camera cable's press connector and disconnect it from the motherboard.

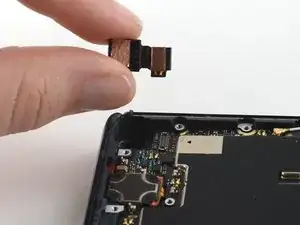

Remove the front camera.

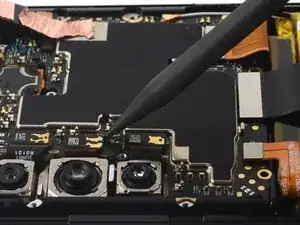

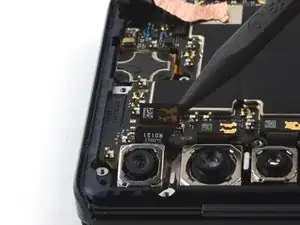

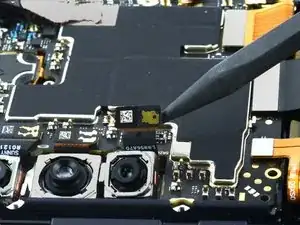

Use a spudger to pry up the wide angle camera cable's press connector and disconnect it from the motherboard.

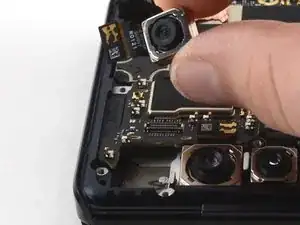

Remove the wide angle camera.

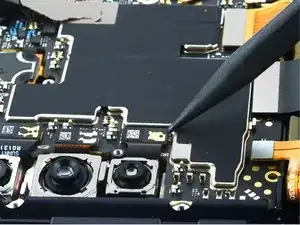

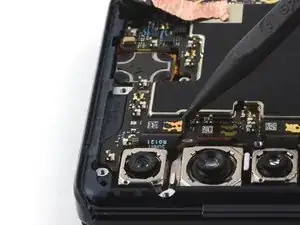

Use a spudger to pry up the main camera cable's press connector and disconnect it from the motherboard.

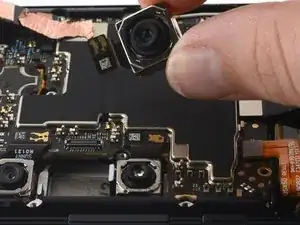

Remove the main camera.

Use a spudger to pry up and disconnect the telephoto camera cable's press connector from the motherboard.

Remove the telephoto camera.

Use a spudger to pry up and disconnect the screen ribbon cable's press connector from the motherboard.

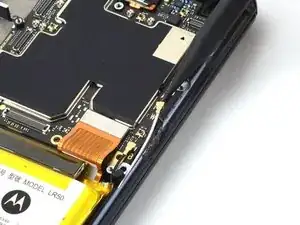

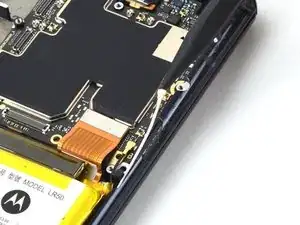

Use a spudger to pry up the black coaxial cable and detach it from the motherboard.

Use a spudger to pry up the white coaxial cable and detach it from the motherboard.

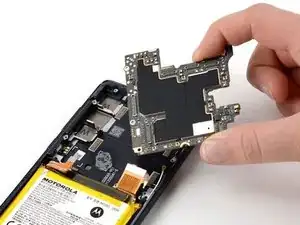

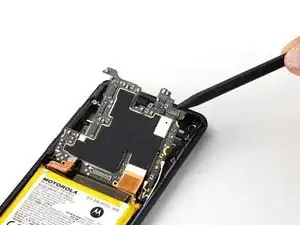

Use a spudger to pry up and remove the motherboard.

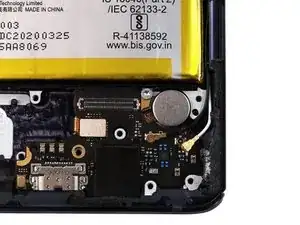

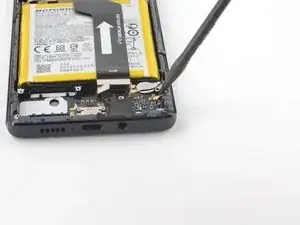

Use a spudger to pry up the fingerprint sensor cable's press connector and disconnect it from the daughterboard.

Use a T5 Torx screwdriver to remove the single 3.2 mm screw securing the daughterboard.

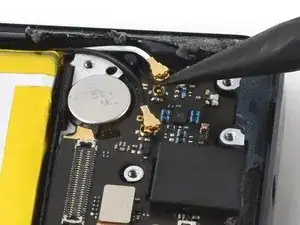

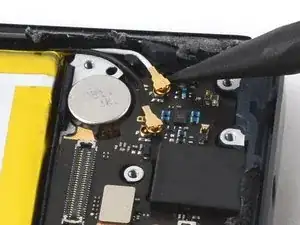

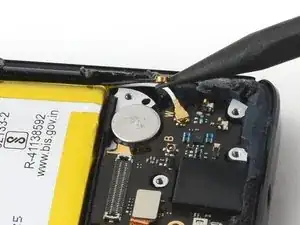

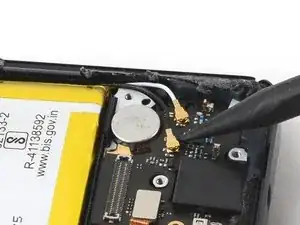

Use a spudger to pry up the black coaxial cable and detach it from the daughterboard.

Use a spudger to pry up the white coaxial cable and disconnect it from the daughterboard.

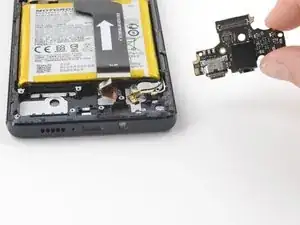

Use a spudger to pry up and separate the daughterboard from the rest of the phone.

Heat an iOpener and place it on the screen for two minutes in order to loosen the adhesive on the battery.

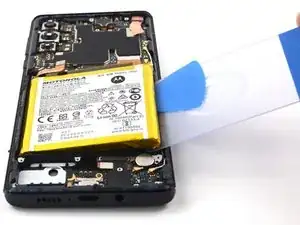

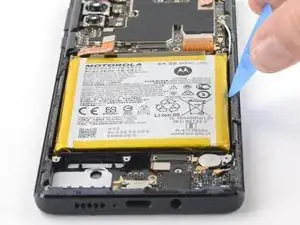

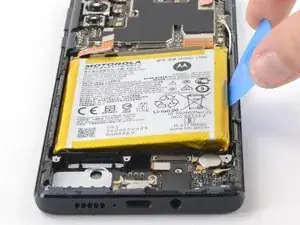

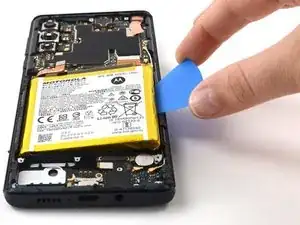

Wedge the pointed end of an opening pick between the right side of the battery and the midframe.

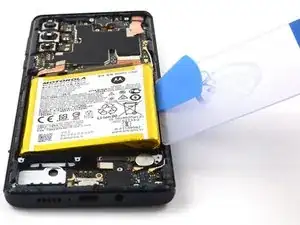

After making a gap between the battery and the frame, replace the opening pick with a plastic card.

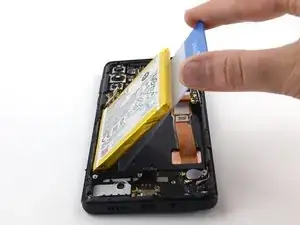

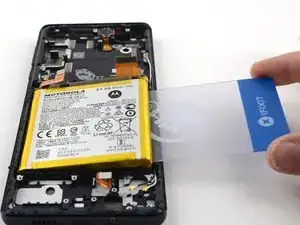

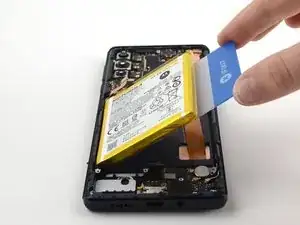

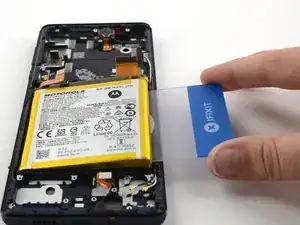

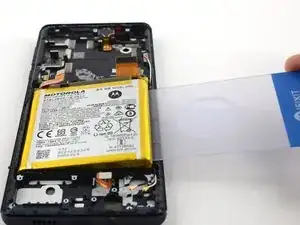

Carefully slide a plastic card underneath the battery to cut through the adhesive.

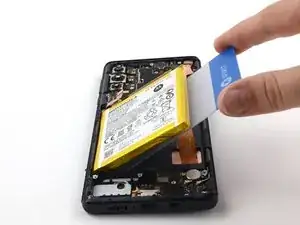

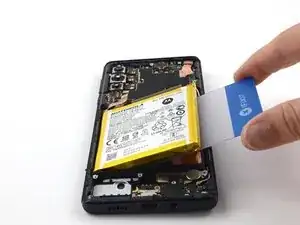

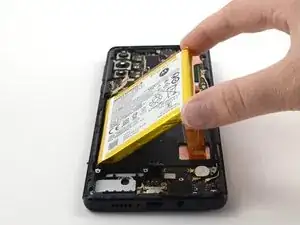

Slide a plastic card under the battery, then carefully lift the battery up until the adhesive is loose enough to remove the battery.

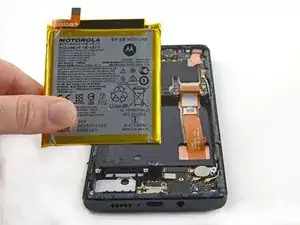

Separate and remove the battery from the midframe.

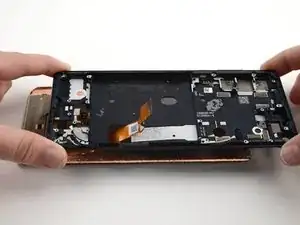

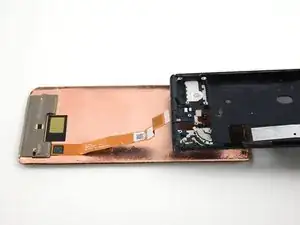

Turn the phone over and remove the midframe while gently threading the screen ribbon cable through the opening in the midframe.

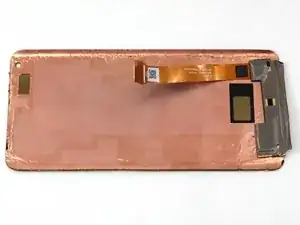

All that remains is the display panel.
