Use this guide to remove the LCD and digitizer of your Motorola Moto E4 Plus (XT1771).

Before disassembling your phone, discharge the battery below 25%. The battery can catch fire and/or explode if accidentally punctured, but the chances of that happening are much lower if discharged.

This guide replaces only the display while leaving the original frame, motherboard, and battery in place. Some replacement screens for this phone come pre-installed on a new frame (a.k.a. chassis), which requires following a very different procedure—transplanting your phone's internals and installing a new battery. Make sure you have the correct part before starting this guide.

You’ll need replacement adhesive to reattach components during reassembly.

  1. PCCXuPCwmVpwtTCZ
    PCCXuPCwmVpwtTCZ
    bPy2yicrAdZxADOP
    2lalNWm6HLMBs6AH
    • Power off your phone before beginning disassembly.

    • Insert the edge of the spudger into the notch on the bottom right corner of the phone.

    • Twist the spudger to start releasing the back cover from the phone.

    • Slide the spudger along the bottom edge to separate the back cover from the phone.

  2. BUAOpKayenHBerHv
    BUAOpKayenHBerHv
    Hajy1vGJYVD5BJSq
    • Lift the phone unit out of the back cover.

  3. uQUf2htv3tBFguXy
    • Remove the eighteen 3.3 mm Phillips screws securing the midframe assembly.

  4. OB1nkHUu13UkPsEx
    OB1nkHUu13UkPsEx
    rBkIaTHeKhMtjbnV
    • Remove the charging board cover.

  5. qvAwQyXWkDpEM63D
    qvAwQyXWkDpEM63D
    oUeTRnhFSk3kbbsG
    pAjwAZVrCdQmOVNV
    • Remove the battery cover.

    Hoe kom ik aan een nieuwe cover of waar is die te koop.

    Antoinet -

  6. SG3BidfIJhuNVmRI
    SG3BidfIJhuNVmRI
    LW6CdknPWSEdboFQ
    • Insert an opening pick underneath the bottom left corner of the motherboard cover.

    • Slide the opening pick between the cover and the second SIM tray to release the plastic clip.

  7. dLcpNWeDPW1VGJRG
    dLcpNWeDPW1VGJRG
    UDi3hWIsviVro5EK
    • Insert an opening pick underneath the bottom right corner of the motherboard cover.

    • Use the opening pick to pry up the motherboard cover.

  8. Sc63bxRyFcvihlew
    Sc63bxRyFcvihlew
    HfOHa1LZakKp1sxy
    • Remove the motherboard cover.

  9. HBto2G6tNJGtUVDf
    HBto2G6tNJGtUVDf
    ZoFWKvCn4ZLJMlmU
    • Use the edge of a spudger to pry up and disconnect the battery flex cable from the motherboard.

  10. FX1cDOGpcyLIVGtC
    • Remove the two 2.9 mm Phillips screws.

  11. gYiWtfhsnHTpASr3
    gYiWtfhsnHTpASr3
    qUFBVrMTabQr6Rsi
    WaRI6UoDMQODCvEp
    • Use the edge of a spudger to pry up the flap of the ZIF connector located below the SIM slot on the left side of the motherboard.

    • Use a pair of tweezers to pull the power and volume button flex cable out of the ZIF connector.

    • To reattach ZIF connectors like this one, carefully insert the flex cable into the ZIF connector up to the marked line on the cable, and then close the locking flap.

  12. aOQCHRCCZuTMYjOJ
    aOQCHRCCZuTMYjOJ
    6JhDtdhMbGAye1qb
    • Use a pair of tweezers to pry up and disconnect the antenna cable.

  13. ldwJg2KQKHrfbViD
    ldwJg2KQKHrfbViD
    ExeLaQZUPCxbTWb2
    • Use the flat end of a spudger to pry up and disconnect the interconnect flex cable.

  14. bfDl3W1iYCKGV4RL
    bfDl3W1iYCKGV4RL
    FnQOkfDXQpvyCKOF
    JSTORVdSDKKvMATK
    • Use the tip of a spudger or an opening pick to pry up the flap of the ZIF connector, located in the bottom right corner of the motherboard.

    • Use a pair of tweezers to pull the display flex cable out of the ZIF connector.

  15. JTbcM3tCJUjWWLjI
    JTbcM3tCJUjWWLjI
    qHEHHnld6ufuZSmu
    • Grasp the motherboard by the top corners and remove it by lifting up and pulling it carefully out of its recess.

  16. HySGdVerPsZJkGMl
    • Remove the single 2.9 mm Phillips screw holding the charging board to the frame.

  17. PMRQ3MWveXBlFeZ5
    PMRQ3MWveXBlFeZ5
    dsj2kLKUV2IkICrl
    • Use a pair of tweezers to pry up and disconnect the antenna cable.

  18. UM5RSZMqasMYxqDm
    UM5RSZMqasMYxqDm
    N6iTYUYaVfVnCsHf
    • Use the edge of a spudger to pry up and disconnect the interconnect flex cable.

  19. ZUtYWRRGn22FSGjR
    ZUtYWRRGn22FSGjR
    w4UZWvjaQXIR1RUE
    • Use the edge of a spudger to pry up and disconnect the fingerprint sensor flex cable.

  20. RdFBHVRYgQ6nCtTS
    RdFBHVRYgQ6nCtTS
    cvh4UkSQpfnOiRGg
    • Insert the tip of a spudger underneath the bottom edge of the charging board and pry upwards.

    • Remove the charging board.

    • Before reassembly check your new part for any components that might need to be transferred from the old one (e.g. microphone rubber gasket).

  21. HrZE15ZLaMyNbEmY
    HrZE15ZLaMyNbEmY
    md3iYqFIoncppsQ1

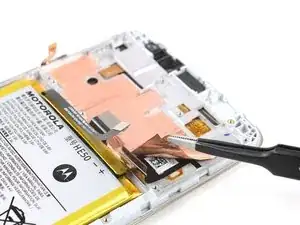

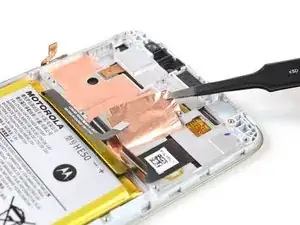

    • Use a pair of tweezers to peel the copper tape from the right edge until the display flex cable underneath is fully exposed.

  22. IEccYp6b6kWPUmHT
    IEccYp6b6kWPUmHT
    61FAGXIIhFTQLNlv
    • Use a pair of tweezers to carefully peel the display flex cable off of the midframe.

  23. eNtvJNvQSmPXVITa
    • Prepare an iOpener and apply it to the display for at least two minutes to loosen the adhesive underneath.

  24. WSnWQD3lhZT4rUM2
    WSnWQD3lhZT4rUM2
    KeUUplfDRGpoPdVI
    HMdJvBRck6ZMMSXB
    • Once the screen is warm to the touch, apply a suction cup near the top edge of the phone right under the earpiece speaker.

    • If the phone's screen is cracked, the suction cup may not stick. Try lifting it with strong tape, or superglue the suction cup in place and allow it to cure so you can proceed.

    • Pull up the suction cup, and insert the tip of an opening pick under the display where the earpiece speaker is located.

    • Slide the opening pick to the top left corner of the phone to cut the adhesive.

  25. SJxQtLNUFUP332Wa
    SJxQtLNUFUP332Wa
    3RBJZvFcRGR6yNrR
    • Insert a second opening pick and slide it to the top right corner of the phone.

  26. ga1jZMgNbuAZyyGq
    ga1jZMgNbuAZyyGq
    SoowZRFiQSVePpJ6
    yrXvF1kCEQvkOGh5
    • If cutting becomes too difficult, reheat and reapply the iOpener.

    • Slide the opening pick from the top right corner down the right edge of the phone and cut the adhesive with it.

    • While cutting, make sure the pick slides under the display panel and not just between the display and the front glass.

    • Slide the opening pick around the bottom right corner.

  27. q1jamxQUWy2lMAxk
    q1jamxQUWy2lMAxk
    GXBVKBnRJFGCA2Mn
    RAVCYOYjJHqGpgoL
    • Slide the opening pick along the bottom edge of the phone and cut the adhesive.

    • Be careful around the home button, inserting only the tip of the opening pick to prevent damaging the button.

  28. Gxlq4ePuEBwPDxsZ
    Gxlq4ePuEBwPDxsZ
    cIJcXSWdpl2DAseJ
    • Repeat the previous heating and cutting procedure on the left edge of the phone to cut the remaining adhesive.

    • Try not to remove the display all the way yet. The fingerprint and display flex cables are still threaded through the midframe.

  29. BNW11qHThLGbRoCa
    BNW11qHThLGbRoCa
    WR4a6lPPKMEDNVbR
    13bvB6QKCx5X3BdV
    • Carefully thread the display cable at the top and the fingerprint sensor cable on the bottom through their gaps in the midframe.

    • Remove the LCD and digitizer.

    • Remove any remaining adhesive from the midframe, and clean the glued areas with isopropyl alcohol and a lint-free cloth.

    • In case your new LCD and digitizer doesn't include the fingerprint sensor, you will need to continue with the fingerprint sensor guide to transfer it to the new LCD and digitizer.

Abschluss

The best way to secure the new screen is with a sheet of custom-cut double-sided tape. Apply the tape to the back of the screen, then carefully feed the display cable through the frame. Align the screen and press it into place.

To reassemble your device, follow these instructions in reverse order.

If possible, turn on your phone and test your repair before installing new adhesive and resealing the phone.

Take your e-waste to an R2 or e-Stewards certified recycler.
