Motorola Moto G4 Plus Rear Camera Replacement

Geschrieben von: Turki Al-Mulla

Kommentare: 12

Motorola Moto G4 Plus Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will walk you through the process of replacing the rear camera in a Motorola Moto G4 Plus phone.

Werkzeuge

Ersatzteile

Moto G4 Plus Rear Camera Replacement

Schritt 1

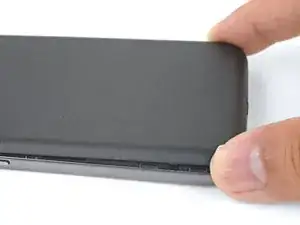

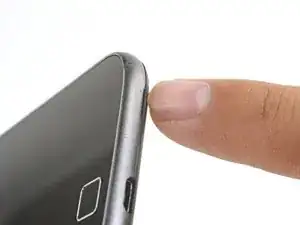

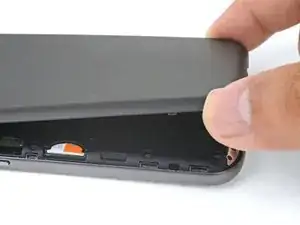

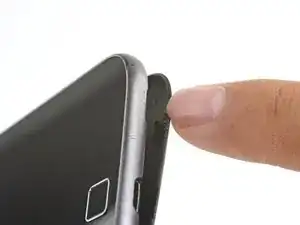

Insert a fingernail or a spudger into the notch on bottom edge of the phone near the charging port.
Pry the back cover away from the body of the phone.

Schritt 2

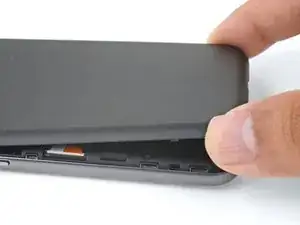

Continue to gently lift the back cover until all plastic clips have been released.
Remove the back cover.
To reinstall the back cover, align the cover over the body and gently press all around the edges until you feel the clips snap into place.

Schritt 3

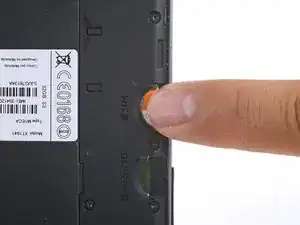

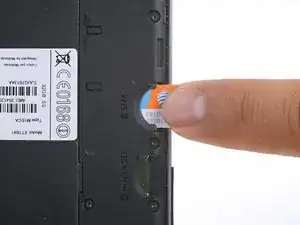

Slide out and remove the SIM card.

Tenho un Motorola g4 plus 64 G

El celular se volvía loco abriendo y cerrando aplicaciones

Ahora no reconoce la tarjeta SIM

Internet y Wasapp funciona

Alguien sabe donde lo reparan soy de Argentina Buenos Aires CABA

Florencia Garrido - 04/10/18

Schritt 4

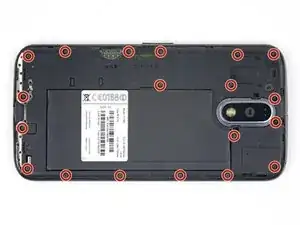

Remove the nineteen 3.1 mm T3 screws securing the midframe.

A pair of binocular magnifiers is helpful here. Also, a magnetic pickup will help pull the tiny screws out of their counterbores.

John Fossey - 17/08/19

Well I'm stuck. 3 screw heads are stripped on mine, not lucky as they are two on USB port end and screw in-between two SIM slots. Phone bought new and this is 1st time screws have been touched, could see they were already stripped before getting screwdriver near them. Any tips on removing stripped screws?

Mark Wintle - 04/01/21

Hi Mark,

I’m sorry to hear that! You can try some techniques from the stripped screw guide.

Arthur Shi - 05/01/21

Schritt 5

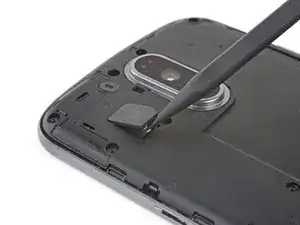

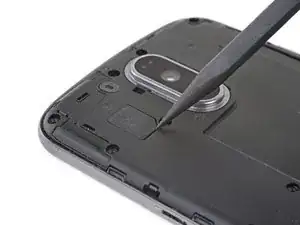

Use the point of a spudger to pry up the rubber cover over the camera flash connector.
Remove the rubber cover.

Schritt 6

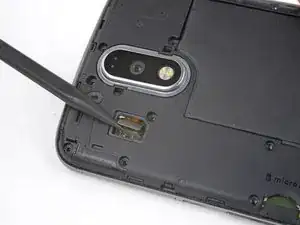

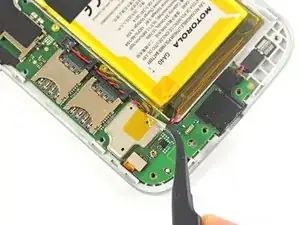

Use the point of a spudger to pry up and disconnect the camera flash connector.

Schritt 7

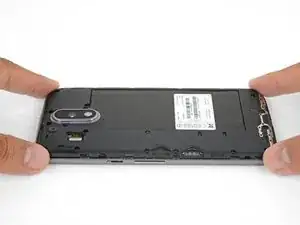

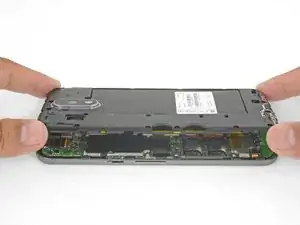

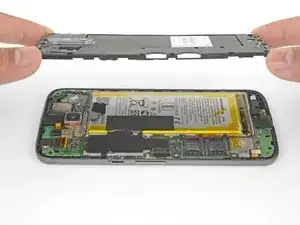

Loosen the midframe along the edges and lift it away from the body.
Remove the midframe.

Schritt 8

Be very careful not to puncture the battery with any sharp tools. A damaged lithium-ion battery can catch fire and/or explode.
Peel up and remove the tape securing the battery wires.
Peel up and remove the black tape that bridges the battery and the phone.
While neither tape pieces are necessary for the operation of the phone, save them if they are in good condition for the reinstallation process.

Schritt 9

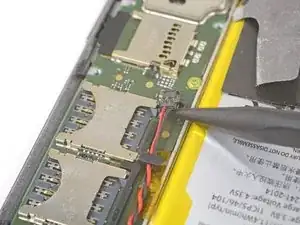

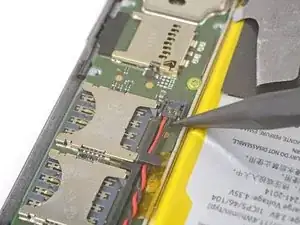

Slip the point of a spudger underneath the red and black battery wires and gently pry straight up.
Do not pull the plug out, or you will tear the board socket out. Be careful where you pry. Do not pry against the board socket.
During reassembly, align the connector in its socket, then press straight down to reconnect it.

Schritt 10

Use tweezers or your fingers to de-route the battery wires from the plastic brackets.

Schritt 11

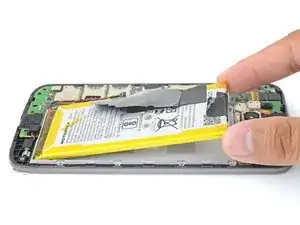

Peel the black pull tab from battery and pull slowly but firmly to separate the battery from the frame.
A few drops of high concentration (90% or higher) isopropyl alcohol along each side may help soften the adhesive.
If the pull tab breaks, use a spudger to gently pry around the edges of the battery until it comes loose.
Don't deform or puncture the battery—it can catch fire and/or explode if damaged.
Never reinstall a damaged or deformed battery. Replace the battery.

Does anybody know, what the black tape covering the metal cans an the battey is made of? It seems to have a heat insulating effect.

David Kilias - 13/08/18

No, but the tape completely separated from itself when I removed it. Glue separated from the backing. I figure the glue in the frame is holding it well enough.

Alan Kristensen - 27/11/18

I found prying the battery out was the trickiest part of this job. Take your time and pry with the plastic tool, working from the end away from the wires, but try not to deform the battery in the process. It does finally come out.

John Fossey - 17/08/19

Hi, I cannot remove the Battery, it has too strong glue. Any Ideas?

Regards

Moritz Strack - 24/05/20

You can try to drip some high concentration isopropyl alcohol along the battery edge to help loosen the adhesive.

Arthur Shi - 26/05/20

Schritt 12

Remove the battery.
To install a battery, orient the new battery such that the wires exit near the bottom of the phone, and the battery connector is on the motherboard side.
Clean off any adhesive residue which may prevent the battery from sitting flush against the frame. Use a few strips of adhesive included in the battery kit or some double-sided tape to secure the battery to the frame.

Schritt 13

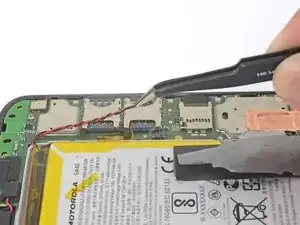

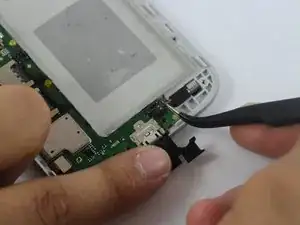

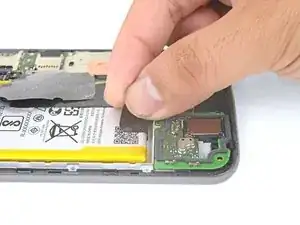

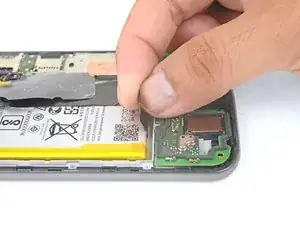

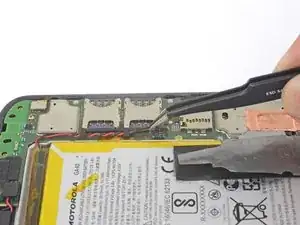

Using tweezers, lift up the black silicon piece connecting the motherboard to the front casing.

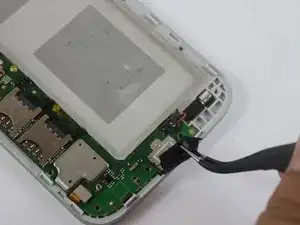

Using tweezers, remove the red and black cable connecting the motherboard to the front casing.

Schritt 14

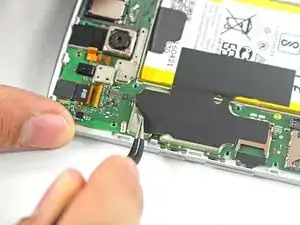

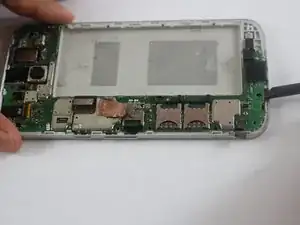

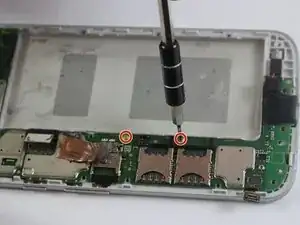

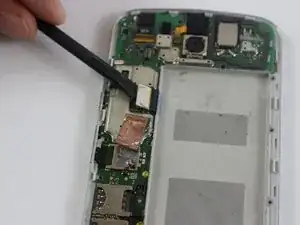

Using a spudger, remove the two metal pieces connecting the motherboard to the front casing.

What is the purpose of that metal piece that is connected to the motherboard on the bottom left-hand side.

Rondre Weaver - 01/03/19

Its for the fingerprint scanner (only on the G4 Plus)

bob fredderson - 14/02/20

Schritt 15

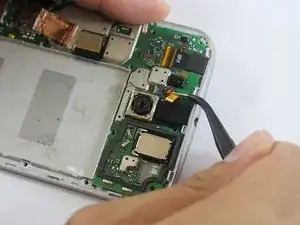

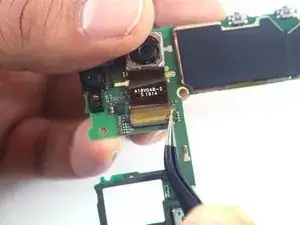

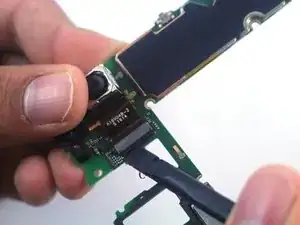

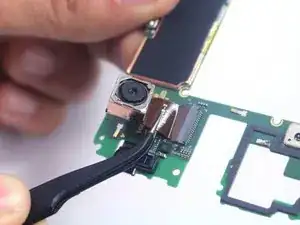

Using tweezers, remove the yellow film connecting the rear camera to the motherboard.
The film is connected by an adhesive, so it may take some jostling to remove.
