Einleitung
Hier wird der Austausch einer beschädigten Hauptplatine am Motorola Moto G5 Plus gezeigt.
Ersatzteile
-
-

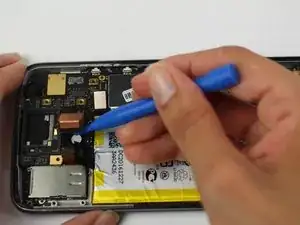

Hebele die beiden Rasten auf, welche die Hauptplatine am Rahmen des Smartphones befestigen.
-
-
-
Heble die Hauptplatine mit dem Plastiköffnungswerkzeug vom Smartphone weg und entferne sie.
-
-
-

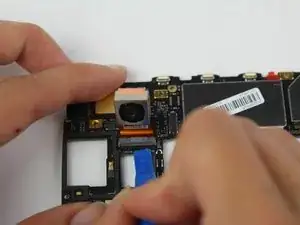

Heble die 12 MP G5 Plus Kamera mit dem Plastiköffnungswerkzeug vorsichtig hoch, dadurch wird der ZIF Verbinder sichtbar.
-
-
-

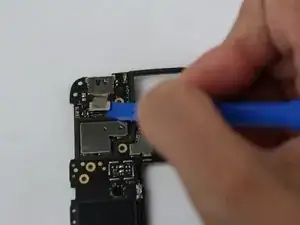

Drehe die Hauptplatine wieder um.
-

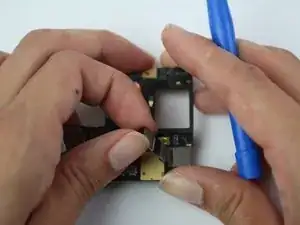

Löse vorsichtig die Frontkamera aus der Klebeverbindung zur Hauptplatine. Schiebe dabei das Kabel durch die kleine Öffnung.
-
Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
