Motorola Moto G6 Charging Port Replacement

Geschrieben von: Bradley Samuel

Kommentare: 21

Motorola Moto G6 Charging Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

50 Minuten

Einleitung

The Motorola Moto G6 features a USB type C charging port. The charging port allows the battery to recharge through an external power source. If the charging port is damaged, it may lead to a damaged battery, or a nonchargeable device. This will require a charging port replacement.

This guide teaches how to perform a charging port replacement. No repair experience is required. However, this replacement will require tools to pry the back shell open, unscrew plates within the device, remove interior pieces, and solder inside of the device. The specific device model in this guide is XT1925-12. Other model numbers include: XT1925-4, XT1925-5, XT1925-6, and XT1925DL.

Before beginning the repair, make sure the device is turned off and disconnected from an external power source. Gather the suggested tools listed below and a new Motorola Moto G6 charging port.

Werkzeuge

Ersatzteile

Precut Adhesive Card

Schritt 1

Power your phone off before you begin.
If possible, drain the battery before disassembly. When the battery is charged, there's an increased risk of a dangerous thermal event if the battery is overheated or damaged during repairs.
If the rear glass is cracked, completely cover it with packing tape to contain the glass shards and avoid injury.
Prepare an iOpener and heat the back of the phone along its bottom edge for about two minutes, or until it's slightly too hot to touch. This will help soften the adhesive securing the rear glass.
You may need to reheat and reapply the iOpener several times to get the phone warm enough. Follow the iOpener instructions to avoid overheating.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

At what temperature shold the glass be heated to? My heat gun goes from 250 up to 1350.

Miles Raymond -

Schritt 2

Apply a suction cup to the bottom edge of the rear glass.
Pull up on the suction cup with firm, constant pressure to create a slight gap between the rear glass and the frame.
If the glass is cracked, the suction cup may not stick. Try lifting it with strong tape, or superglue the suction cup in place and allow it to cure so you can proceed.
This may require a significant amount of force, but you only need to open a very slight gap with the suction cup to insert your tool.
If you have trouble, apply more heat to further soften the adhesive, and try again. The adhesive cools quickly, so you may need to heat it repeatedly.
Insert an opening pick into the gap you created under the rear glass.

I'm stuck on this step (literally and figuratively). I've heated it pretty hot and pulled pretty hard on the suction cup, but I can't see a gap…

Andy Mach - 10/08/20

I used a piece of laminating plastic instead of the pick and managed to slide it in!

Andy Mach - 10/08/20

My back delaminated at this point. That is, the clear plastic started to come away leaving the paint layer behind. Mine is (was) the indigo blue one.

Neil Hoskins -

Schritt 3

Slide the pick all along the bottom edge of the phone to slice through the adhesive securing the rear glass.
Slow down and slice very carefully as you get to the corners. The curved part of the glass along the left and right edges can crack very easily if the pick pushes up against the curved glass.
After being cut, the adhesive will sometimes stick back together as it cools. To prevent this you can leave the pick in this edge after cutting, and continue the next steps with a new pick. Repeat this with each edge, leaving a pick and continuing with a new one.

Schritt 4

Heat the right edge of the back of the phone to soften the adhesive underneath.

Schritt 5

Slide the pick along the right edge of the rear glass to separate the adhesive underneath.

Schritt 6

Heat the top edge of the back of the phone to soften the rear glass adhesive.

Schritt 7

Slide the pick all along the top edge of the phone to slice through the adhesive securing the rear glass.
Slow down and slice very carefully as you get to the corners. The curved part of the glass along the left and right edges can crack very easily if the pick pushes up against the curved glass.

Schritt 8

Heat the left edge of the back of the phone to soften the adhesive underneath.

Schritt 9

Slide a pick along the left edge of the phone to slice through the rear glass adhesive.

Schritt 10

If the glass remains stuck, re-heat and slice the adhesive repeatedly as needed.
Lift the rear glass carefully, making sure it's fully separated from any adhesive.
Remove the rear glass.
During reassembly, pause here to replace the adhesive on the rear glass using a precut adhesive card or high-strength double-sided adhesive tape, such as Tesa 61395.
After closing your device back up during reassembly, stack something heavy, like a textbook or two, on top of the device for 30-60 minutes. This ensures a strong adhesive bond.

When cleaning old adhesive off the back glass, be careful not to scratch the inner coating of the glass. If you scratch this coating with tweezers, it will leave visible “nicks” on the back glass.

Sarah Braden -

Schritt 11

Use a pair of tweezers to carefully peel up the black tape covering the battery.
Remove the tape.
If possible, keep the tape intact so it can be reused during reassembly.

On my phone the sticker was covered by another NFC tag that was attached to the board under the cover. I yanked it out, breaking it in the process, but if you peel that sticker off the batter sticker first and leave it attached at the end, you should have more success.

Stuart - 04/05/21

Yes, there's the NFC tag that isn't mentioned, with its connection to the left. Thanks for the tip, Stuart; I gently lifted mine to the left and it seems to be intact. I guess I won't know until I try to pay for something.

Neil Hoskins - 10/08/22

Schritt 12

Use a Phillips driver to remove seventeen screws securing the plastic cover:
Eleven grey 3 mm-long screws
Five black 2.5 mm-long screws
One silver 3.5 mm-long screw

The holes for the black screws are marked with a small triangle to differentiate them from the holes for the gray ones. I found this super helpful when reassembling!

Jamie Bell -

Schritt 13

Insert the pointed end of a spudger into the notch at the top left edge of the plastic cover.
Pry up with the spudger to lift the upper edge of the cover and release the clips holding the cover down.
Remove the plastic cover.

When reinstalling plastic cover, alignment is critical for underlying contacts to line up. Test all functions before sealing up the phone. If camera or speaker don’t work, recheck plastic cover installation and correct until all phone functions operate.

Eric Oberer - 07/05/21

Schritt 14

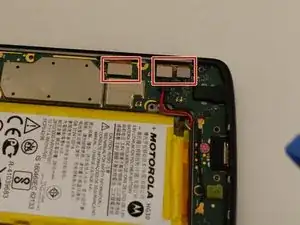

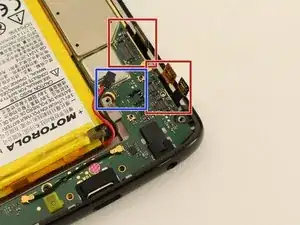

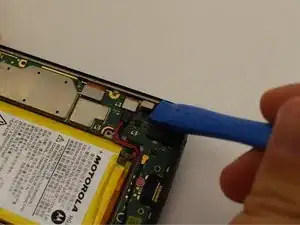

Using the iFixit opening tool, pop up the three press-fit connectors in the bottom right corner of the motherboard.

Schritt 15

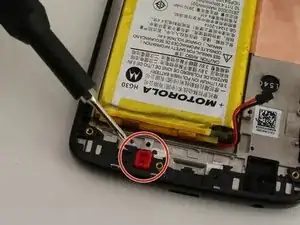

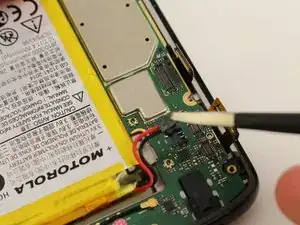

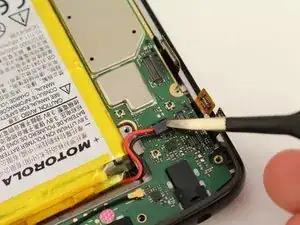

Using tweezers, pull up the battery connector to remove it from its port in the motherboard.
Before moving on ensure your device has all four the connections undone from the third picture.

Schritt 16

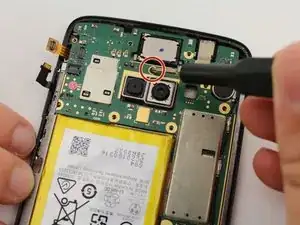

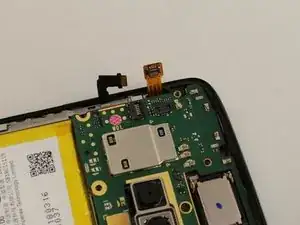

Use the opening tool to disconnect the press-fit connection on the top left of the motherboard, similar to the previous step.

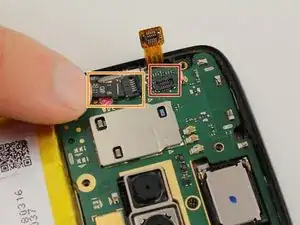

Use either your fingernail or tweezers to pull the orange boxed connector out. Unlike the other connections, this one is pulled down and not up from the device.

Schritt 17

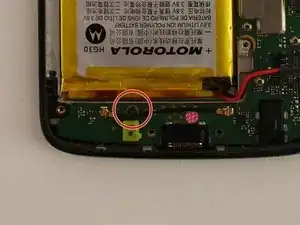

Remove the two black 2.7 mm screws from the motherboard.

Schritt 18

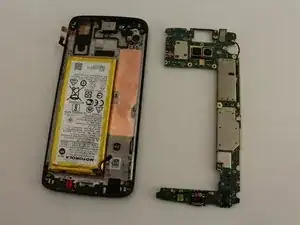

Remove the motherboard out of place.
When reassembling your device ensure you set the mother board under all of the connectors and make sure the cameras and the marked red piece remain in place.

Removing the SIM tray is required before the motherboard will come out.

Thys de Wet - 30/12/19

Schritt 19

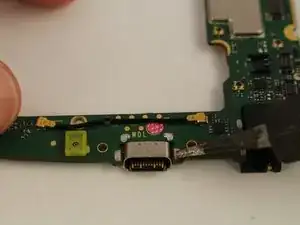

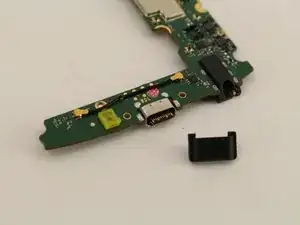

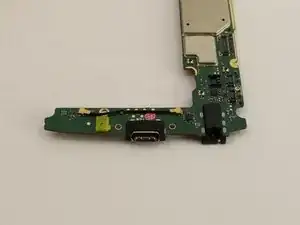

Take off the black rubber cover around the charging port with a pair of tweezers.

Schritt 20

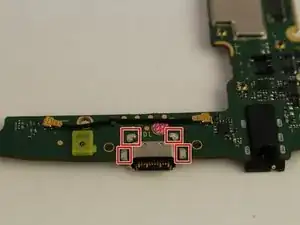

Carefully desolder the four pins which physically hold the port in place.
Carefully de-solder the electrical pins which connect the port to the circuit board.
For assistance soldering, check out this soldering guide.

Thanks! now I’ve ripped off all the important pads from the PCB!

[!!!USE HEAT-GUN AND ALUMINUM TAPE TO DE-SOLDER ALL THE PINS!!!]

lauris - 25/01/20

This is where the difficult rating comes in. Could use a picture from the other side of the port showing the small electrical pins. After all the work to get to this point, this is the easiest step to fail on and ruin the phone. The soldering guide does not cover this size, even under advanced. A proper soldering station heat gun seems the way to go.

TODD MALONE -

I have been told that Motorola Moto G⁶ XT1925-6 charging board is bad, because even with new battery of 46% charge, it doesn't booth the fully before shutting down. When you plug in charge, it display that the phone will charge after cooling down then it would turn off. For a phone which is turned off for days! I have been to AliExpress to order for another charging board, but the pictures I am seeing are different from the one in my phone, which looks exactly like this one, that is, the continuation from motherboard to charging board. Please what should I do?

Enya Ivara - 01/09/22

Abschluss

To reassemble your device, follow these instructions in reverse order.
