The Motorola Moto G6 features a headphone jack used to connect various types of headphones and earbuds to the device. If the headphone jack is damaged, the connected device may not play clearly, or with a low volume. A headphone jack replacement may be required.

This guide teaches how to perform a headphone jack replacement. No repair experience is required. However, this replacement will require tools to pry the back shell open, unscrew plates within the device, remove interior pieces, and solder inside of the device. The specific device model in this guide is XT1925-12. Other model numbers include: XT1925-4, XT1925-5, XT1925-6, and XT1925DL.

Before beginning the repair, make sure the device is turned off and disconnected from an external power source. Gather the suggested tools listed below and a new Motorola Moto G6 headphone jack

.

  1. oOkDK2PfcAZZka2v
    • Power your phone off before you begin.

    • If possible, drain the battery before disassembly. When the battery is charged, there's an increased risk of a dangerous thermal event if the battery is overheated or damaged during repairs.

    • If the rear glass is cracked, completely cover it with packing tape to contain the glass shards and avoid injury.

    • Prepare an iOpener and heat the back of the phone along its bottom edge for about two minutes, or until it's slightly too hot to touch. This will help soften the adhesive securing the rear glass.

    • You may need to reheat and reapply the iOpener several times to get the phone warm enough. Follow the iOpener instructions to avoid overheating.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

    At what temperature shold the glass be heated to? My heat gun goes from 250 up to 1350.

    Miles Raymond -

  2. fr4jVcfvhheifPgF
    fr4jVcfvhheifPgF
    x3sZ6aHMMe1NWFZr
    PWCRYqLV2SwDxanP
    • Apply a suction cup to the bottom edge of the rear glass.

    • Pull up on the suction cup with firm, constant pressure to create a slight gap between the rear glass and the frame.

    • If the glass is cracked, the suction cup may not stick. Try lifting it with strong tape, or superglue the suction cup in place and allow it to cure so you can proceed.

    • This may require a significant amount of force, but you only need to open a very slight gap with the suction cup to insert your tool.

    • If you have trouble, apply more heat to further soften the adhesive, and try again. The adhesive cools quickly, so you may need to heat it repeatedly.

    • Insert an opening pick into the gap you created under the rear glass.

    I'm stuck on this step (literally and figuratively). I've heated it pretty hot and pulled pretty hard on the suction cup, but I can't see a gap…

    Andy Mach -

    I used a piece of laminating plastic instead of the pick and managed to slide it in!

    Andy Mach -

    My back delaminated at this point. That is, the clear plastic started to come away leaving the paint layer behind. Mine is (was) the indigo blue one.

    Neil Hoskins -

  3. QryndCP4giKDICLQ
    QryndCP4giKDICLQ
    tNci1QthQbiieNqu
    NrkNHuixRCJleKTw
    • Slide the pick all along the bottom edge of the phone to slice through the adhesive securing the rear glass.

    • Slow down and slice very carefully as you get to the corners. The curved part of the glass along the left and right edges can crack very easily if the pick pushes up against the curved glass.

    • After being cut, the adhesive will sometimes stick back together as it cools. To prevent this you can leave the pick in this edge after cutting, and continue the next steps with a new pick. Repeat this with each edge, leaving a pick and continuing with a new one.

  4. yF4HOZEhJlFreLvQ
    • Heat the right edge of the back of the phone to soften the adhesive underneath.

  5. DcL2qyeYNMRYNRCt
    DcL2qyeYNMRYNRCt
    bHmwDMS6Oci1vcPV
    MQbtRiXjDECXTTHB
    • Slide the pick along the right edge of the rear glass to separate the adhesive underneath.

  6. WNTdNvrSOCdorpoY
    • Heat the top edge of the back of the phone to soften the rear glass adhesive.

  7. 4DIxSWZJB4YUgtxs
    4DIxSWZJB4YUgtxs
    1XpdlVmr1WkmThAd
    sDFJJbrtklNCYDPB
    • Slide the pick all along the top edge of the phone to slice through the adhesive securing the rear glass.

    • Slow down and slice very carefully as you get to the corners. The curved part of the glass along the left and right edges can crack very easily if the pick pushes up against the curved glass.

  8. C25atjP52WKlBHpZ
    • Heat the left edge of the back of the phone to soften the adhesive underneath.

  9. 1KaQyGiUmPXSZFRF
    1KaQyGiUmPXSZFRF
    SFBK3kqEWSisiHq4
    CpeKXujnpWvnGLEa
    • Slide a pick along the left edge of the phone to slice through the rear glass adhesive.

  10. PpoVYbWEpEiZqGRk
    PpoVYbWEpEiZqGRk
    FfGCfPVSCMCbaZ4T
    • If the glass remains stuck, re-heat and slice the adhesive repeatedly as needed.

    • Lift the rear glass carefully, making sure it's fully separated from any adhesive.

    • Remove the rear glass.

    • During reassembly, pause here to replace the adhesive on the rear glass using a precut adhesive card or high-strength double-sided adhesive tape, such as Tesa 61395.

    • After closing your device back up during reassembly, stack something heavy, like a textbook or two, on top of the device for 30-60 minutes. This ensures a strong adhesive bond.

    When cleaning old adhesive off the back glass, be careful not to scratch the inner coating of the glass. If you scratch this coating with tweezers, it will leave visible “nicks” on the back glass.

    Sarah Braden -

  11. b5hWUHcnKaH42vZw
    b5hWUHcnKaH42vZw
    cIJx1ucCQAJJJ6Rp
    • Use a pair of tweezers to carefully peel up the black tape covering the battery.

    • Remove the tape.

    • If possible, keep the tape intact so it can be reused during reassembly.

    On my phone the sticker was covered by another NFC tag that was attached to the board under the cover. I yanked it out, breaking it in the process, but if you peel that sticker off the batter sticker first and leave it attached at the end, you should have more success.

    Stuart -

    Yes, there's the NFC tag that isn't mentioned, with its connection to the left. Thanks for the tip, Stuart; I gently lifted mine to the left and it seems to be intact. I guess I won't know until I try to pay for something.

    Neil Hoskins -

  12. tgOUTZfhcKg5bRiU
    • Use a Phillips driver to remove seventeen screws securing the plastic cover:

    • Eleven grey 3 mm-long screws

    • Five black 2.5 mm-long screws

    • One silver 3.5 mm-long screw

    The holes for the black screws are marked with a small triangle to differentiate them from the holes for the gray ones. I found this super helpful when reassembling!

    Jamie Bell -

  13. IQxuSSpRI6mkTqI3
    IQxuSSpRI6mkTqI3
    oL36RmgHDujVEOG6
    alXtAX2rILVQG2Zc
    • Insert the pointed end of a spudger into the notch at the top left edge of the plastic cover.

    • Pry up with the spudger to lift the upper edge of the cover and release the clips holding the cover down.

    • Remove the plastic cover.

    When reinstalling plastic cover, alignment is critical for underlying contacts to line up. Test all functions before sealing up the phone. If camera or speaker don’t work, recheck plastic cover installation and correct until all phone functions operate.

    Eric Oberer -

  14. JSmb3uUBxdlriQfZ
    JSmb3uUBxdlriQfZ
    wpKaGl2cc1WoDmMh
    • Using the iFixit opening tool, pop up the three press-fit connectors in the bottom right corner of the motherboard.

  15. YpJsPuvp3nNy1oKS
    YpJsPuvp3nNy1oKS
    Ovrgn1KcEYmwfdwH
    GHuRXJSbO4YZZ2Ap
    • Using tweezers, pull up the battery connector to remove it from its port in the motherboard.

    • Before moving on ensure your device has all four the connections undone from the third picture.

  16. OayQ2xQDBKg45sin
    OayQ2xQDBKg45sin
    PQhT4Jhu1xjJTSGa
    ub2dLVtMxB5kSSIG
    • Use the opening tool to disconnect the press-fit connection on the top left of the motherboard, similar to the previous step.

    • Use either your fingernail or tweezers to pull the orange boxed connector out. Unlike the other connections, this one is pulled down and not up from the device.

  17. MIXq6UPyZKA5hWr2
    MIXq6UPyZKA5hWr2
    AyQqBlZPDjkgMLPa
    • Remove the two black 2.7 mm screws from the motherboard.

  18. I4ZIdBSkFybXWLGJ
    I4ZIdBSkFybXWLGJ
    pvXnE25dBXObasWw
    • Remove the motherboard out of place.

    • When reassembling your device ensure you set the mother board under all of the connectors and make sure the cameras and the marked red piece remain in place.

    Removing the SIM tray is required before the motherboard will come out.

    Thys de Wet -

  19. CcqvHCNZ6ZIfMfpW
    CcqvHCNZ6ZIfMfpW
    5CYpZSPpFb4VBDr3
    R5RYBWMFR5inr1eI

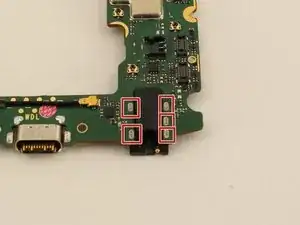

    • Locate the headphone jack on the bottom right side of the mother board.

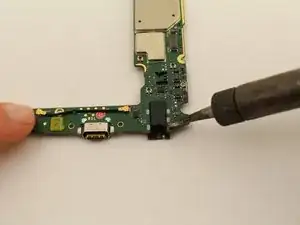

    • Using a soldering iron, solder the five contact points and remove the charging port from your device.

    • For assistance soldering, check out this guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
