Mr. Coffee TF6 Power Cord Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

Replacing the power cord on the TF6 requires several wiring tools and previous experience with soldering. For soldering tips and directions, consult the guide on how to solder and desolder connections.

  1. KOk2NJJLKYcPG6nR

    • Facing the bottom of the TF6, carefully pull the two rubber feet out with your hands.

  2. ZOtqFHMGIVvjGvuB
    ZOtqFHMGIVvjGvuB
    wtGPtRteiWYPQr1W

    • Using a Phillips #1 screwdriver, remove the six 11mm Phillips screws that are holding the bottom cover in place.

  3. j6y6jlYdABtxCNSv

    • Gently lift the bottom cover, detaching it from the main body of the TF6.

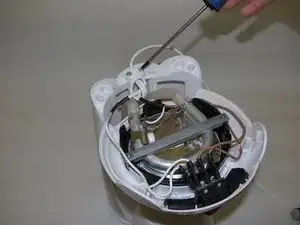

  4. 6a6dcxKLy4YtA5lS

    • Using a Phillips #1 screwdriver, remove the two 13mm Phillips screws that are securing the wire harness.

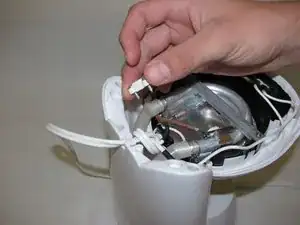

  5. FIb2gVAGiSS5G1A1

    • Carefully lift the wire harness from the base of the TF6, detaching it completely.

    • The power cord wiring is now completely accessible.

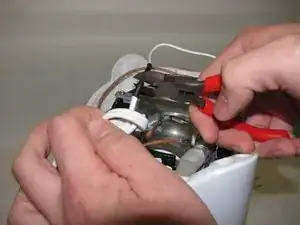

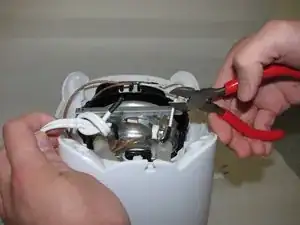

  6. ZghLHYoyKGCEkwCJ
    ZghLHYoyKGCEkwCJ
    4VmiKNGGELA4XhEv

    • Using a set of wire cutters, cut both leads of the power cord at the heatshrinked area where the leads split.

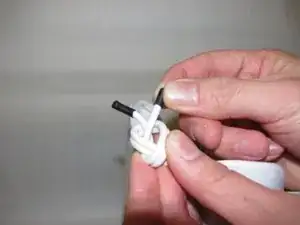

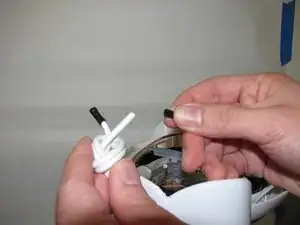

  7. ABl6h1YFavqNpgml
    ABl6h1YFavqNpgml
    QsKFqRtvATl4JP2S

    • Using your fingers, pry the heatshrink off from the power cord leads.

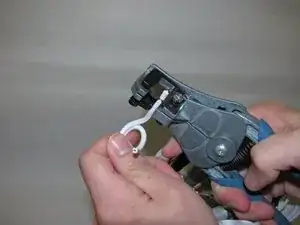

  8. QJZKnHErHMFik1Mf

    • Using a 14-16 AWG wire stripper, strip the leads on the replacement power cord.

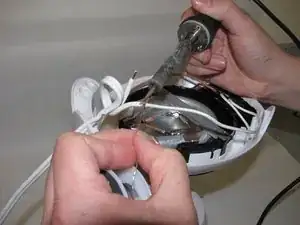

  9. seuUORtk1VK1CQpp

    • Solder the power cord's positive lead to the white nylon wire.

    • Solder the power cord's ground lead to the bronze nylon wire.

    • Ensure the correct leads are being soldered together (power to power, ground to ground). Soldering the incorrect leads together will result in hazardous conditions for both the TF6 and the user when the unit is powered on.

    • Consult the replacement power cord's user manual, packaging, or manufacturer in order to verify the power and ground leads.

Abschluss

To reassemble your device, follow these instructions in reverse order.
