Nest Dropcam Pro LEDs Replacement

Geschrieben von: David Foens
  • Kommentare: 1
Nest Dropcam Pro LEDs Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

2 Minuten

Einleitung

This guide is used to replace the LEDs inside the Nest Dropcam Pro in case they are broken or blown. Make sure the device is unplugged before opening.

  1. Dfp2UFPw3WrMDPmR

    • Press in the mounting clips on each side of the case to remove the camera from the mount.

  2. JECD2EotCvakCJqM
    JECD2EotCvakCJqM
    bVDDDuTCpAFtPYOP

    • Using a Philips #0 screwdriver, remove the four 3 mm screws.

  3. KEaSEKUOmOrCuK4X
    KEaSEKUOmOrCuK4X
    kl2GLvtkMGEZvhxS

    • Lift the front of the case slowly, as there is an antenna cable attached to the motherboard.

    • Carefully disconnect the antenna cable from the motherboard. You will feel this cable "pop" out of place when disconnected.

  4. RajGwnwvZhBevugY
    RajGwnwvZhBevugY
    RJTYaRjb2BMsZqHr

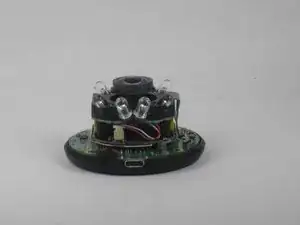

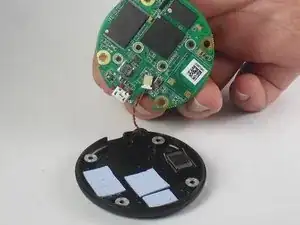

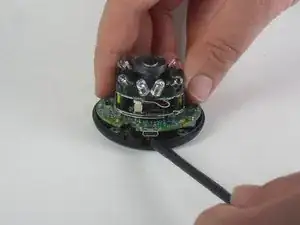

    • Insert a spudger tool under the micro-USB port and lift to separate the motherboard from the back case.

  5. GEQHjlKLHAXrVWnA
    GEQHjlKLHAXrVWnA
    SjWbcrFWWjOsaFpl

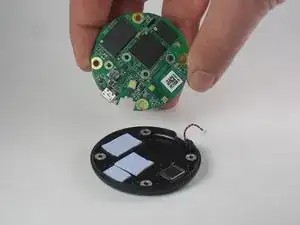

    • Pull the motherboard away from the back case.

    • Unplug the red and black cable connecting the motherboard to the back case.

    may i know what those chips are?

    Thanks.

    julian -

  6. ngER6YxMkHXKBbfK
    ngER6YxMkHXKBbfK
    NtBWU3JCOyo6PZa3

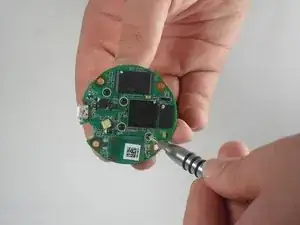

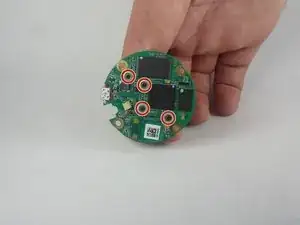

    • Using a Philips #0 screwdriver, remove the four 2 mm screws.

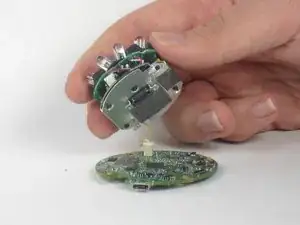

  7. 6XrSahEstYR1aBu3
    6XrSahEstYR1aBu3
    l1l1tjOf5gWnFiHa

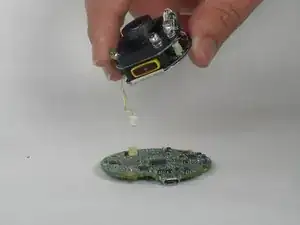

    • Lift the lens and LED assembly away from the motherboard.

    • Unplug the yellow and white cable from the motherboard.

  8. VdJOXfLlgfxXEHBb
    VdJOXfLlgfxXEHBb
    3JLEDRZOfuhIqXVn

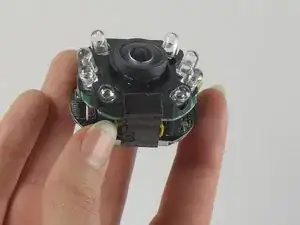

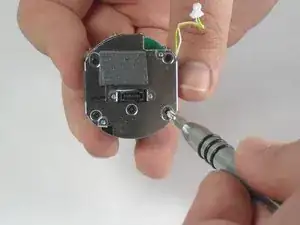

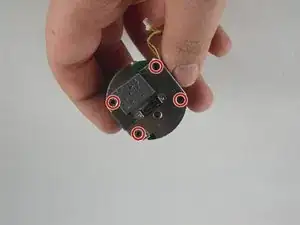

    • Using a Philips #0 screwdriver, remove the four 2mm screws.

  9. VbgjCRnIDIwXGsZR
    VbgjCRnIDIwXGsZR
    NHqMRbyh3GGxaNX1
    CHbtDgZmqmVSsvTE

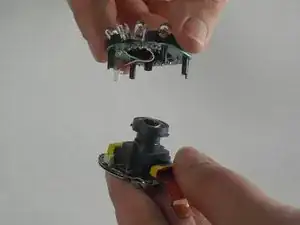

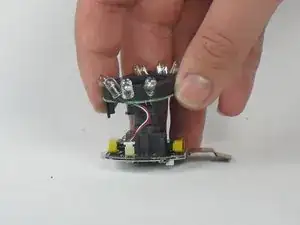

    • Peel off the paper seal holding the Lens and LEDs together.

    • Disconnect the red and white wire from the bottom board.

  10. oIsJbSxyCaX1pXew
    oIsJbSxyCaX1pXew
    6GSEaoJMSeinXDnl

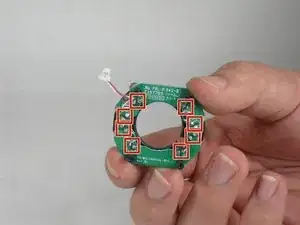

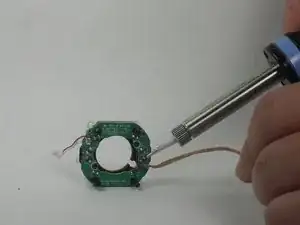

    • Using a de-soldering tool, disconnect the LEDs from the motherboard.

    • If you don't know how to solder, check out How To Solder and Desolder Connections.

    • Soldering irons are extremely hot and can burn you if you touch them!

    • If you hold the soldering iron tip at the same spot for too long, it can strip the metal from the plastic board. You may not be able to solder wire to that point again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
