Nexus 5X LCD-Display& Digitizer ersetzen

Geschrieben von: Richard Suovanen

Kommentare: 48

Nexus 5X LCD-Display& Digitizer ersetzen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

45 Minuten

Einleitung

Diese Austauschanleitung für das Nexus 5X zeigt, wie du nur das LCD-Display und den Digitizer deines Nexus 5X austauschen kannst - und nicht die [Produkt|IF293-008|ganze Displayeinheit]. Wenn dein Ersatzteil den Kunststoffrahmen enthält, musst du zusätzliche Teile (LED, Vibrationsmotor, Ohrhörer, Kopfhörerbuchse, Strom-/Lautstärketasten und Näherungssensordichtungen) auf deine neue Rahmeneinheit übertragen. Lies dir die Schritte und Kommentare sorgfältig durch, bevor du mit dem Austausch beginnst.

Wenn dein Glas (Digitizer) gesprungen ist, beschädigt wurde oder nicht auf Berührung reagiert, hilft dir diese Anleitung, das beschädigte Glas zu ersetzen und die Funktionsfähigkeit des Geräts wiederherzustellen.

Wenn dein Bildschirm tote Pixel hat, verzerrte oder verschwommene Bilder zeigt oder überhaupt nichts anzeigt, hilft die diese Anleitung beim Austausch des beschädigten LCD-Display.

Die Klebekraft und der Gerätezustand können variieren; bitte sei vorsichtig, wenn du Komponenten aus deinem Gerät entfernst.

Werkzeuge

Ersatzteile

Nexus 5X Display Adhesive

Schritt 1

Setze ein Auswurfwerkzeug für SIM-Karten in das Loch im SIM-Kartenfach an der linken Kante des Telefons.
Drücke das Auswurfwerkzeug hinein, um das SIM-Kartenfach auszuwerfen.
Entferne das SIM-Kartenfach.

Schritt 2

Setze ein Plektrum in die Öffnung des SIM-Karteneinschubs und verdrehe es zur Seite, um die erste Plastikklammer zu lösen, mit der die Rückabdeckung befestigt ist.
Schiebe das Öffnungswerkzeug um die Oberkante des Gerätes, um die Plastikklammer zu lösen, mit der die Rückabdeckung befestigt ist.

A guitar pick is a good substitution for the plastic opening tool.

Sam Sippe - 29/01/18

Here’s a photo of the location of the 18 tabs that hold the back cover in place

Steve - 12/05/18

Twisting sideways didn’t do it for me, but sliding along the edge did. However, at first I didn’t realize that the pick was between the motherboard and midframe, rather than between midframe and back cover like it was supposed to. This led to breaking off a spring-loaded connector on the motherboard, connecting to an antenna (I guess) in the back cover. So far I haven’t noticed any reception issues, but I can’t say for sure.

In essence: be careful to get the pick towards the back cover, and not “straight in” under the midframe.

Hampus - 26/08/20

Schritt 3

Schiebe das Plektrum um alle Seiten des Smartphones herum, um alle Klammern zu lösen, mit denen die Rückabdeckung befestigt ist.

Schritt 4

Kippe das Plektrum, um die Rückabdeckung ein wenig anzuheben.
Beim Fingerabdrucksensor befinden sich noch zwei weitere Plastikklammern. Löse sie, indem du die Rückabdeckung behutsam wegziehst.
Entferne die Rückabdeckung.

Schritt 5

Entferne die zehn 3,6 mm Kreuzschlitzschrauben #000, mit denen der Mittelrahmen befestigt ist.

Some models use a Y1 screw head.

Kyle Wright - 07/05/18

Schritt 6

Setze ein Plektrum in den SIM-Karteneinschub ein. Drehe es zur Seite hin, damit sich die Kunststoffraste löst.

The photo seems to show that the person is opening from the top, which is the opposite of your advice. So, just want to be clear.

Robert Konigsberg - 10/03/17

yes, open from bottom first... the pic above shows the finished product after reaching top of phone. I found it best to actually start close to the right of the usbC connector. Pushing inbetween the 2 tabs and up will release the shell.. then work clockwise.

Chris Mayberry - 21/03/17

Chris, your advice to start to the right of the usbC connector was excellent, thank you!

Robert Konigsberg - 24/03/17

I found that my middle panel was already broken at the narrowest part just to the left of the 2-D scan code on the battery, perhaps from some ham-fisted previous repair. This seems of little consequence, there do not seem to be any electrical connections running through this part.

Wiley Sanders - 10/12/17

After a long amount of prying, I discoved that, if used gently, a jimmy can really help get the plastic off

Timothy Owens - 26/12/17

I could not remove the cover with the opening tool but had success with the opening picks (the triangle parts). Just slide them under the cover and gently bend and twist the pick to release the cover from the locks. By the way: it’s perfectly normal for the bottom cover part to come loose from the top cover part. It’s designed that way (they interlock).

Marco Miltenburg - 08/01/18

Here’s a photo of the location of the 20 tabs that hold the middle assembly in place, and the pry angle needed.

Steve - 12/05/18

This is the scariest part but it is the same process of taking a bike tire off the rim: lift up one part of the cover then put a wedge under the lifted section to hold it up then continue around the frame lifting it up and holding it up with the blue picks. You’ll find that after you life the bottom you can wriggle free the rest by hand.

The 10 screws came out quickly using the IFIXIT.com magnetic screwdriver.

mcguinness.david - 20/12/19

Schritt 7

Schiebe das Plektrum weiter um den oberen Teil des Mittelrahmens, um die Plastikrasten zu lösen.

Schritt 8

Öffne mit dem Plektrum die Plastikrasten an der langen Kante des Mittelrahmens und an der unteren Kante.
Stelle sicher, dass die Rasten an der langen Kante gelöst sind. Der Mittelrahmen kann hier leicht brechen, wenn die Rasten nicht richtig abgelöst sind.

Schritt 9

Stelle sicher, dass alle Rasten gelöst sind.
Entferne vorsichtig den Mittelrahmen.

Schritt 10

Verwende die Kante eines Spudgers, um das Akku-Kabel, welches sich unten rechts auf der Hauptplatine befindet, hochzuhebeln und zu trennen.

Schritt 11

Verwende einen iOpener, um den Klebstoff unter dem Akku zu lösen. Legen den iOpener für mindestens zwei Minuten auf der Rückseite des Telefons auf.

And all that in 3 minutes.

No way!!!

Chris Hibbert - 29/01/17

Yeah, three minutes is probably not very realistic. I updated the time estimate to something a bit more conservative. :)

Jeff Suovanen - 30/01/17

The adhesive on mine was also really strong.

I had to use a heat gun at about ~110F while applying pressure to get the battery to release

Brian Stambaugh - 02/08/17

Seriously? All this, just to change the battery?

Robin Gregory - 09/11/17

Your comment only makes sense in 2017.

Krzeszny -

I was able to spudge the battery out from the bottom edge using a “custom” tool made from an old credit card cut to a width slightly less than the bottom of the battery.

Wiley Sanders - 11/12/17

Great tip - I used a credit card too without the need for a heat gun.

Sam Sippe - 29/01/18

No need to remove the battery if you only want to get the mainboard out. Just release all the connectors

Wim Brouwer - 23/03/19

I’d recommend trying to remove the battery without using heat as my phone failed with the infamous “boot loop” problem less than a week after I changed the battery.

chilton cabot - 29/06/19

Following these helpful comments, I used isopropyl alcohol and the spudge to get the battery loose, no heat.

hans haucke - 14/06/20

Another data point: to be safe, I used the iOpener according to instructions (30s, ~900W microwave, the iOpener just started to expand a bit) and added some isopropyl alcohol. The battery came out without too much effort in a few minutes. No reheating needed, used the spudger from the kit.

The pre-exiting adhesive seemed good enough still, so I didn’t bother removing and re-applying.

Hampus - 26/08/20

I also used isopropyl alcohol only without heat. I got the spluger into the corner just a little to give a small space between the battery and the surrounding plastic enclosure for the battery. Then soaked a corner of a paper towel with a little alcohol. Tipped the phone and squeezed some of the alcohol into the space and let it drain down the edge of the battery. Waited about 60 seconds and then pryed gently with the spluger on that side. It came up pretty easily. Once I got one side of the battery up, I soaked the paper towel again tipped the phone so the edge that was still stuck was down, and squeezed alcohol all along the edge that was freed to let alcohol get down to the tape that was still holding. Waited another minute and then pried gently again and the rest of the battery came right up. The whole procedure took maybe 4-5 minutes.

Jonathan Stucklen - 14/02/21

Schritt 12

Versuche, den Akku während des folgenden Ausbauprozesses nicht zu verformen. Aus Soft-Shell-Lithium-Ionen-Akkus können gefährliche Chemikalien auslaufen, sie können Feuer fangen oder bei Beschädigung sogar explodieren. Wende keine übermäßige Kraft an und benutze keine Metallwerkzeuge, um den Akku zu entferen.
Setze das flache Ende eines Spudgers unter die linke untere Ecke des Akkus und heble vorsichtig nach oben.
Der Klebstoff befindet sich nur unter den Kanten des Akkus, sodass du nicht die Mitte des Akkus nicht mit dem Spudger anheben musst.
Wenn der Akku sich nur schwer anheben lässt, ist der Klebstoff möglicherweise noch zu fest. Du kannst etwas Isopropylalkohol unter jede Ecke des Akkus träufeln und einige Minuten einwirken lassen, um den Klebstoff zu lösen.

Schritt 13

Setze das flache Ende eines Spudgers unter die rechte untere Ecke des Akkus und heble vorsichtig nach oben, um den verbleibenden Kleber zu lösen.

Schritt 14

Entferne den Akku.
Verwende den Akku nach dem Entfernen nicht wieder, da dies ein potenzielles Sicherheitsrisiko darstellt. Ersetze den Akku durch einen neuen.
Entfernen vor dem Einsetzen eines neuen Akkus den verbleibenden Klebstoff vom Smartphone und reinige die geklebten Stellen mit Isopropylalkohol und einem fusselfreien Tuch.
Verklebe den neuen Akku mit vorgestanzter Klebefolie oder doppelseitigem Klebeband. Um den Akku richtig zu positionieren, platziere den neuen Klebstoff an den Stellen im Smartphone an denen sich der alte Kleber befand. Drücke den neuen Akku 5-10 Sekunden lang fest.

If you use the ifixit heat-pad to remove the battery and gently lever the battery away from the internal glue then the original glue will still be functional.

Edmund Cramp - 01/06/21

Schritt 15

Erwärme einen iOpener und lege ihn zum Aufweichen des Klebers unter der Rückkamera 30 Sekunden lang über den oberen Teil des Smartphones.

Schritt 16

Setze das flache Ende des Spudgers unter die linke Seite der Rückkamera und heble sie behutsam hoch. Achte darauf, dass der Kleber darunter komplett gelöst ist.

Schritt 17

Heble den Stecker am Displaykabel mit dem flachen Ende des Spudgers hoch.

Schritt 18

Fasse die Hauptplatine unten an und hebe sie vorsichtig hoch.
Die Hauptplatine ist in der Nähe der Rückkamera mit einer kleinen Kunststoffraste befestigt.
Ziehe die Hauptplatine behutsam zur Unterkante hin, so dass sie sich aus der Kunststoffraste nahe der Rückkamera löst.
Hebe die Hauptplatine vorsichtig aus dem Rahmen heraus.
Vorsicht - die beiden Kameras sind immer noch an der Hauptplatine angeschlossen.

Schritt 19

Das Flachbandkabel zum Touchscreen ist mit dem Kunststoffgehäuse verklebt. Weiche den Kleber mit einem iOpener oder einem Heißluftgebläse auf.
Der an diesem Nexus 5X gezeigte Touchscreen ist nicht durch eine Folie geschützt. Wenn sie bei deinem Gerät vorhanden ist, dann ziehe sie einfach ab.
Du musst diese Schutzfolie anschließend auf dein Ersatzteil kleben.

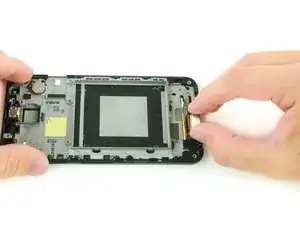

Schiebe deinen Spudger mit dem flachen Ende behutsam in den Spalt zwischen Akkugehäuse und dem Flachbandkabel zum Touchscreen ein, oder löse das Kabel sorgfältig mit den Fingern ab.

Schritt 20

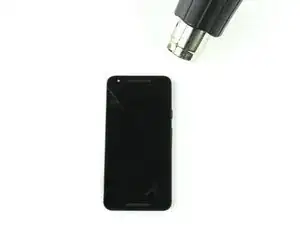

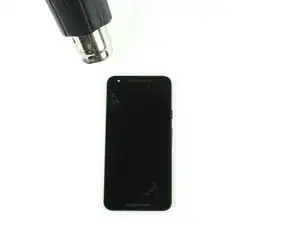

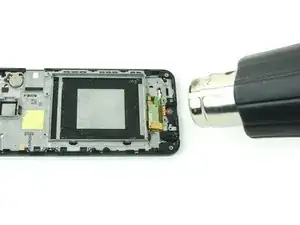

Weiche den Kleber unter den Kanten des Displays mit einem iOpener oder einem Heißluftgebläse auf.
Wenn du mit einem Heißluftgebläse arbeitest, dann halte es etwa 20 cm vom Display entfernt. Bewege es dabei etwa zwei Minuten lang vor und zurück.

Schritt 21

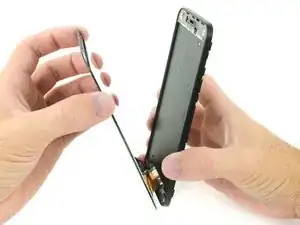

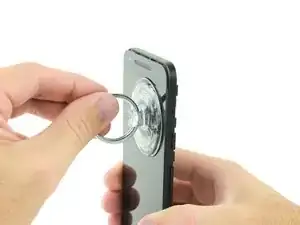

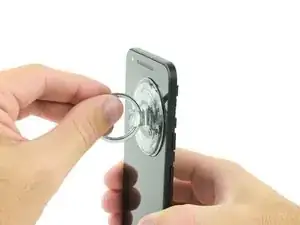

Befestige einen Saugheber und ziehe das Display vom Rahmen weg, so dass ein schmaler Spalt entsteht.
Dafür sollte nicht zu viel Kraft nötig sein. Erwärme lieber nochmals, damit der Kleber schön weich wird.

Schritt 22

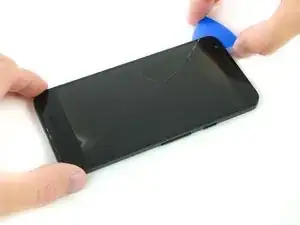

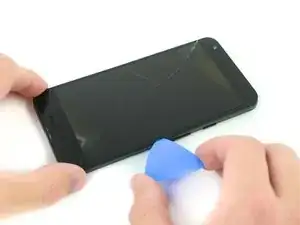

Setze ein Plektrum in den Spalt zwischen Display und Kunstoffgehäuse ein.

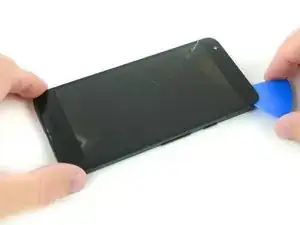

Schiebe das Plektrum unter dem Displayrand entlang, um den Kleber abzulösen.

Schritt 23

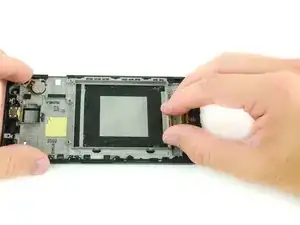

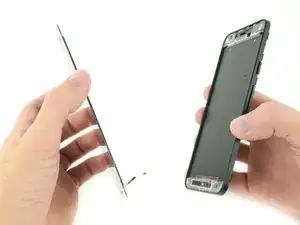

Entferne die LCD- und Touchscreen-Einheit..
Führe das Touchscreenkabel behutsam durch den Rahmen.
Übertrage den Ohrhörer und Lautsprecher-Gitter auf das neue Display.

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Anweisungen in umgekehrter Reihenfolge.
