Nikon CoolPix S600 LCD Replacement

With the lens facing forward, remove the one 4.2 mm screw on the bottom right hand corner of the camera.

Remove the chrome side cover from the body of the camera.

Remove the four 3.2 mm screws on the bottom of the camera.

Remove the two 3.2 mm screws from the right side of the camera (with lens is facing forward)

Remove the one 3.2 mm screw from the left side of the camera (with lens facing foward)

Gently separate the back cover from the body of the camera.

Use the tweezers to disconnect the ribbon from the circuit board.

Remove the one 2.6 mm screw from the left side of the camera (with the lens facing forward)

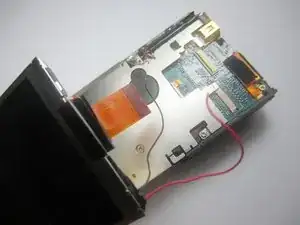

Gently separate the front cover from the body of the camera.

Remove the two 3.2 mm screws that hold the flash to the front cover.

Use the Spudger to remove the copper colored light bulb clip.

Remove the front cover entierly from the camera body.

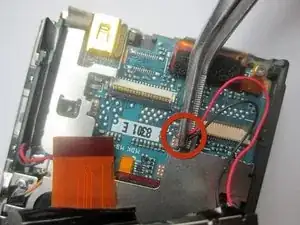

Gently remove LCD ribbon from the mother board

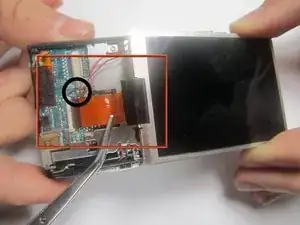

Desolder both wires from the mother board.

Separate the LCD screen from the rest of the mother board
