Nikon Coolpix P90 Flash Bulb Replacement

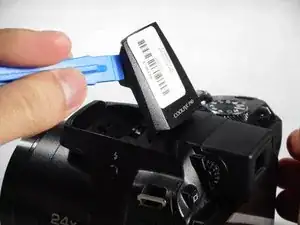

Use your finger to push the notch of the compartment door to the center of the camera body.

Release the compartment door, and it will swing open.

Remove the existing battery with your fingers.

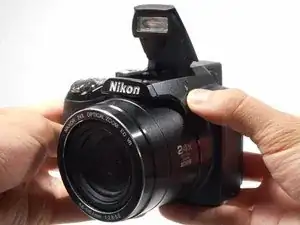

Press the button on the side of the body to open the flash compartment.

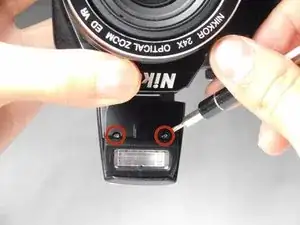

Using a Phillips #000 Precision Screwdriver, remove the two 3.0 mm screws from inside the compartment.

Place the plastic opening tool along the crack on the side of the flash compartment cover and pry open and detach the cover.

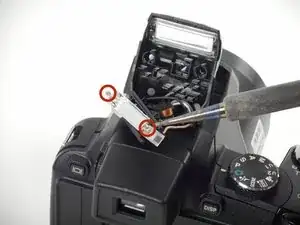

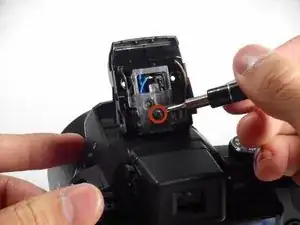

Using a Phillips #000 Precision Screwdriver, remove the 4.0 mm screw from the plastic cover.

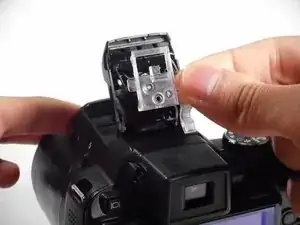

Detach the plastic cover.

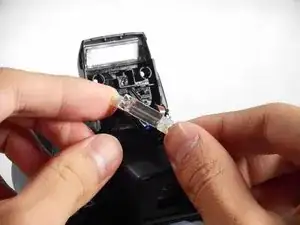

Carefully remove the flash bulb holder with your fingers.

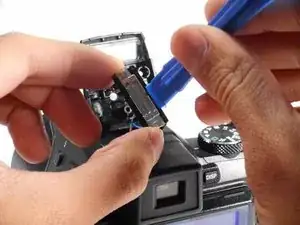

Using the plastic opening tool, pry the metal bulb frame out of the socket.

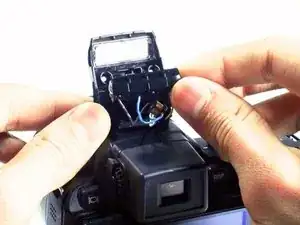

Remove the plastic stoppers on either side of the metal flash bulb tray.

Using a soldering iron, desolder each of the wires connected to the light bulb.
