Einleitung

Is your camera no longer working? Did you recently damage your camera, like by dropping it or getting it wet? Your motherboard may be damaged. This guide will show you how to replace it.

  1. EWLen4kNhwHCAKYI
    EWLen4kNhwHCAKYI
    YpEWVPLVP4KOEeWu
    EeYeQqxSfu6cMNbN
    • Ensure the camera is turned off and the battery is removed.

    • Using a Phillips #000 screwdriver, remove the four 2-mm screws from the side of the camera.

    • Remove the two 3-mm screws from the other side of the camera.

    • Finally, remove the three 4-mm screws from the bottom of the camera.

  2. 25CJHnEI55ldYOPI
    25CJHnEI55ldYOPI
    G4Jp36hf3sDNyUtB
    mCpv2K4ZOgcgyJFJ
    • Insert the plastic opening tool into the seam where the front and back parts of the case meet on the bottom of the camera, and slide it along the bottom. Continue along the next side to separate the back part of the case.

    • If necessary, continue along the third and fourth sides until the case separates easily.

    • Lift the back off of the case.

  3. JZHvxeRwICYhBcGs
    JZHvxeRwICYhBcGs
    E41MMasyVTeabus5
    • Carefully lift the LCD screen to reveal two orange ribbons connecting the screen to the camera.

    • Use tweezers to carefully lift the blue retaining flap holding down the orange ribbon cable. (Flap can be seen open in the second photo)

    • Slowly wiggle the ribbon cable back and forth while pulling away from the zero insertion force (ZIF) connector to disconnect the cable.

  4. NI6tjnRQKdApGJfQ
    NI6tjnRQKdApGJfQ
    26NaDld4mBHKdgKl
    • Using tweezers, lift the black retaining flap holding down the larger orange ribbon cable.

    • Carefully remove the ribbon cable from the ZIF connector as before.

  5. JAGv11SDWIH1uhWt
    • Lift the LCD screen away from the camera.

  6. WFhXEX5x35SjFhpg
    • Lift the button circuit board by gently popping it out of its connector.

  7. mnyImbgEyeVr26nQ

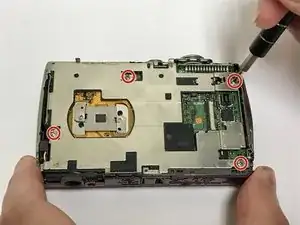

    • Using a #000 Phillips screwdriver, remove the four 4-mm screws from the metal plate.

  8. EW1CRurEJXjCRSgP
    EW1CRurEJXjCRSgP
    N1BNrqo4GRQX52Tk

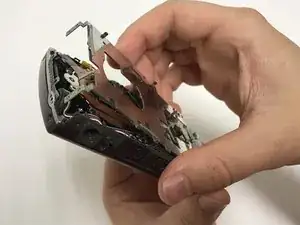

    • Lift the plate from the camera to reveal the motherboard.

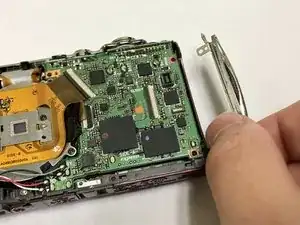

    • Once the plate is removed, the metal attachment for the camera strap on the side of the camera will no longer be secured to the device, and should be set aside.

  9. gmN1MxNXIB1BImJR
    gmN1MxNXIB1BImJR
    D3BFdCliE1pRPtbf

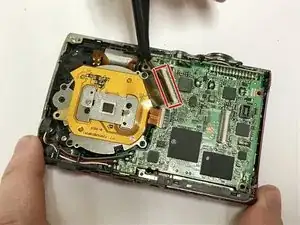

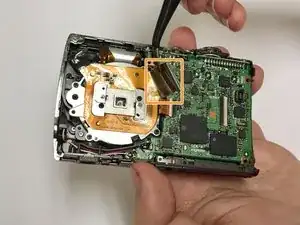

    • Use tweezers to lift the black retaining flap for the larger ribbon cable connecting the motherboard to the lens.

    • Continue using the tweezers to gently pull the ribbon cable out of the ZIF connector.

  10. dWUtvhOBRLRQbeUr
    dWUtvhOBRLRQbeUr
    XBCdxOjIcFC5nvqp

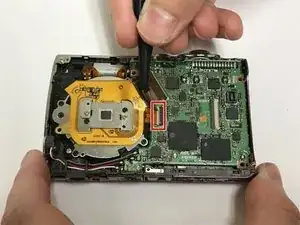

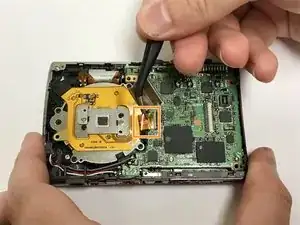

    • Use tweezers to lift the beige retaining flap for the smaller, orange ribbon cable that attaches the motherboard to the lens.

    • Use tweezers to gently pull the orange ribbon cable from the ZIF connector.

  11. WRrxQDeQlBBKx1tu
    WRrxQDeQlBBKx1tu
    COfLDhjycG1AciAT

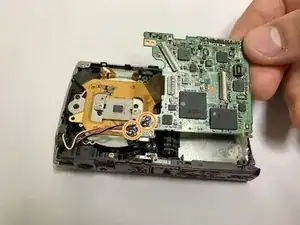

    • Remove the solder using a soldering iron by following the instructions in this guide.

    • Remove the solder connecting the motherboard to the speaker and mic to completely detach the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
