Nikon D5000 Speaker Replacement

Geschrieben von: Jacob Rardin

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

If your camera stops making noise, or the sound is distorted, you may want to inspect or replace the speaker.

The battery door has been removed for clarity, but is not necessary. See this guide for how to remove it.
Unscrew the eight Phillips #00 screws on the back panel:

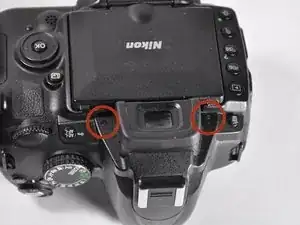

Two 2.5x6mm screws above the screen.

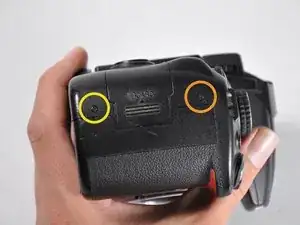

One 3x6mm screw on the upper part of each side (two total; right side shown).
One 3x7.5mm screw on the lower part of each side (two total).

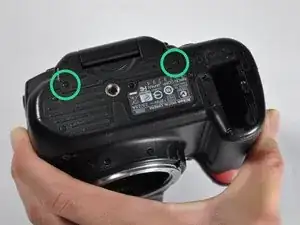

Two 3x4.5mm screws on the bottom.

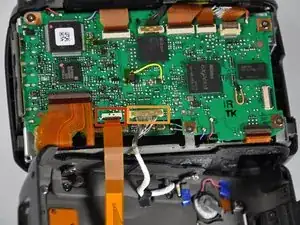

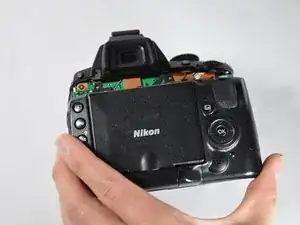

Pull the back panel up, then tilt it back. There will be two cables still holding it on.
Doing this will also release the connector cover on the left side. Set it aside for now, but remember to reinstall it later.
Disconnect the ribbon cable by flipping the black tab up, then pulling the cable out.
This procedure also applies to all of the other ribbon cables in the D5000.

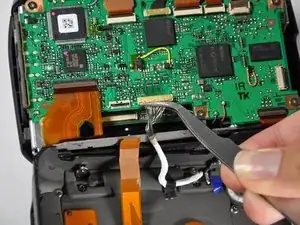

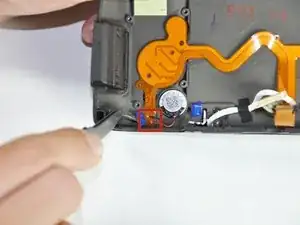

Pull out the other connector by lifting it up with tweezers, or by prying it out. Fingernails also work well.

Orange pulls straight up, if it does not want to come up, use your nails from the sides and pull up.

Be careful with the other ribbon cables, the latches swing up easily with your nail, but can be easy to break if you do it wrong.

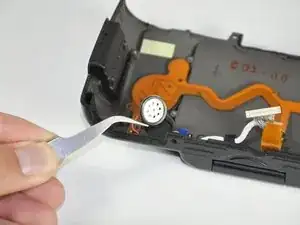

The speaker is mounted to the underside of the back panel. There is a a metal shield that holds it on.

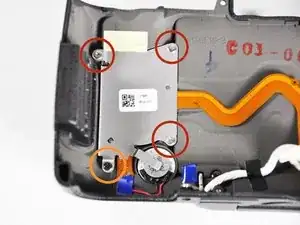

Remove the four Phillips #00 screws securing the shield:
Three silver 3x4mm screws.
One black 3x3mm screw.

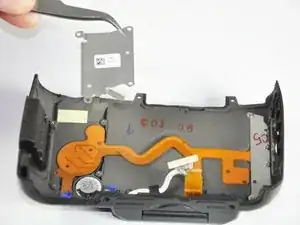

Remove the shield.
With the shield off, the navigation buttons and "Lv" button are free to move and rotate. Check alignment before replacement.
