Nikon D5000 Viewfinder Replacement

Geschrieben von: Jacob Rardin
  • Kommentare: 2
Nikon D5000 Viewfinder Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

If there is dust in the viewfinder, or the screen gets cracked, it should be removed and/or replaced.

  1. KOCEHOH3SL6C2m3L
    KOCEHOH3SL6C2m3L
    jBA2nkaAVMkBQyyU
    LOH6udx1MfHOIRbj

    • The battery door has been removed for clarity, but is not necessary. See this guide for how to remove it.

    • Unscrew the eight Phillips #00 screws on the back panel:

    • Two 2.5x6mm screws above the screen.

    • One 3x6mm screw on the upper part of each side (two total; right side shown).

    • One 3x7.5mm screw on the lower part of each side (two total).

    • Two 3x4.5mm screws on the bottom.

  2. EHVMBhmvjenNV35D
    EHVMBhmvjenNV35D
    lb3r2SjtRDXkD521
    N6GEIltMYuFPfn2G

    • Pull the back panel up, then tilt it back. There will be two cables still holding it on.

    • Doing this will also release the connector cover on the left side. Set it aside for now, but remember to reinstall it later.

    • Disconnect the ribbon cable by flipping the black tab up, then pulling the cable out.

    • This procedure also applies to all of the other ribbon cables in the D5000.

    • Pull out the other connector by lifting it up with tweezers, or by prying it out. Fingernails also work well.

    Orange pulls straight up, if it does not want to come up, use your nails from the sides and pull up.

    Be careful with the other ribbon cables, the latches swing up easily with your nail, but can be easy to break if you do it wrong.

    Joseph -

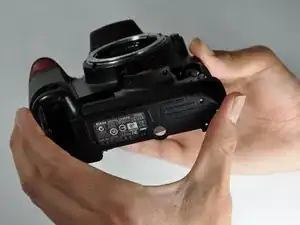

  3. OPDQpSKh1XDBdbfd
    OPDQpSKh1XDBdbfd
    Trsnpq2BXAvFLRyg
    b5tKu1aOQs4KOpt5

    • The viewfinder is held on by the top body piece. To access it, the entire plastic body must be removed. Each piece (back, bottom, front, top) helps secure the next piece.

    • Remove the bottom panel's nine Phillips #00 screws:

    • Four 3x3mm black screws.

    • Five 3x6mm black screws.

    • This 3x6mm screw is hidden under the wall adapter cover.

    • Pull the bottom cover off.

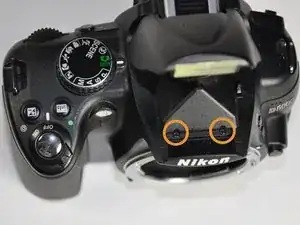

  4. KLJ2K6vZTiKmpGa6
    KLJ2K6vZTiKmpGa6
    RcJOfuI5NFJLCNPL

    • The front panel is next. Six screws hold it on.

    • Start by removing four Phillips #00 screws in the top part of the panel:

    • Two black 2.5x4.5mm screws above the lens mount.

    • Two black 2.5x4.5mm screws under the flash (they are the same type of screw as in the above step).

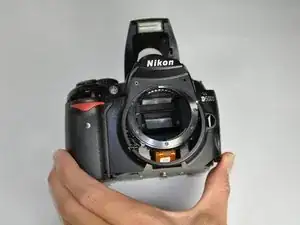

  5. igYU1DfJcy5NcfGu
    igYU1DfJcy5NcfGu
    fAKoEewFLNdMFJ2t
    P3bXaCGlmkh6QNVi

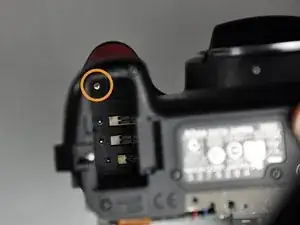

    • Remove two more Phillips #00 screws from the bottom of the camera:

    • One silver 3x4.5mm silver screw, by the right edge.

    • One silver 3x4.5mm screw in the battery compartment.

    • Pull the front panel up and off.

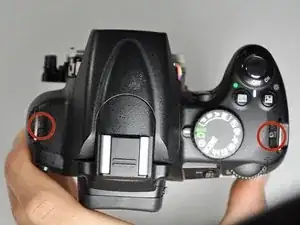

  6. hxBgxNITeUFQBqyl
    hxBgxNITeUFQBqyl
    tnHdVmHvEWQivSNT
    aV3o2qhpfgOAQGI4

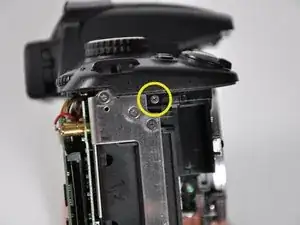

    • Next is the top panel. It is held on by four Phillips #00 screws:

    • Two 3x3.5mm black screws, one by each of the strap mounts.

    • One silver 3x5mm screw on the underside of the panel, about where the "Info" button is. It is the lower of the two in this area, and farther back in the camera.

    • One 3x3mm black screw in the side, under the plus/minus button.

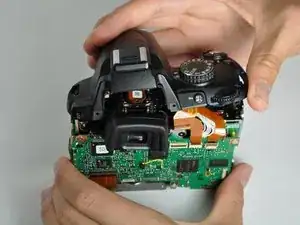

  7. DAsSgBvLG1a3iBkx
    DAsSgBvLG1a3iBkx
    Y6eFyX3NLqA5GLCM
    6y1LVKfIFykkEPYt

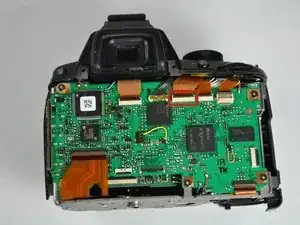

    • Disconnect the third ribbon cable from the right at the top of the back logic board.

    • Lift the top panel up.

    • There are still a number of cables connected to this panel. It cannot be removed completely at this point.

    • Remove the viewfinder hood by pulling outward.

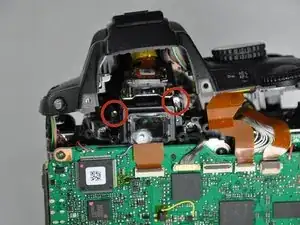

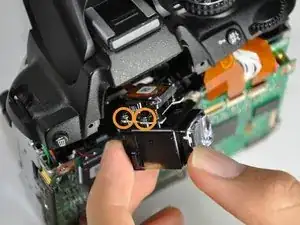

  8. JfNm2GmflxJlKfAC
    JfNm2GmflxJlKfAC
    ttLSRVSnJnlppcEA
    4vUtTpcwTIjFb3pT

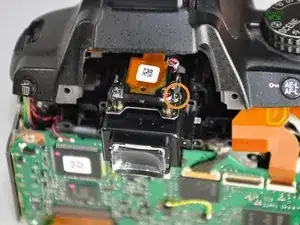

    • Remove the two Phillips #00 3x5.5mm silver screws securing the viewfinder assembly.

    • Remove the three Phillips #00 2.5x3.5mm screws holding the electronics board onto the viewfinder assembly.

    • These are the lower screws in the metal plate, not the upper ones with the springs on them.

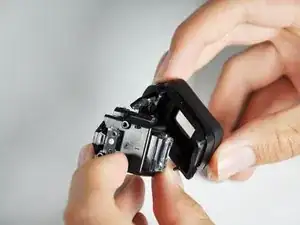

  9. EgrBRdCBHLN3yvlX
    EgrBRdCBHLN3yvlX
    Ymv2VqdReB3hMTYh
    b2atDtA2pwBXdgeW

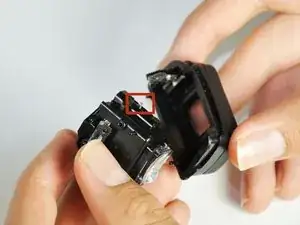

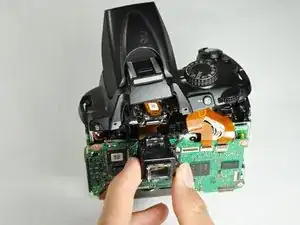

    • Remove the viewfinder window.

    • During reinstallation, there is a small tab on the side of the window assembly that needs to be reconnected (window removed for clarity).

    • After reinstalling the window assembly, catch the tab in the metal hook on the viewfinder hood (see third image). Then seat the two plastic pins on the bottom of the hood.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jacob Rardin

Mitglied seit: 14/04/14

1390 Reputation

Ein Kommentar

So, would it then also be possible to not only clean or replace the viewfinder, but swap out a pentamirror with a pentaprism or upgrade a viewfinder from this?

Shawn Gordon -
