Nikon D7000 Mirror Box & Viewfinder Replacement

Schritt 1

Remove the following 5 screws securing the bottom cover to the camera body:
Four 6 mm J000 screws.
One 8 mm J000 screw (under lens mount).

Schritt 2

Remove three 6 mm J000 screws from under the battery cover.

Schritt 3

Gently pull the bottom cover off of the camera body.

Schritt 4

Remove the following screws from the port area:
Two 3.5 mm J000 screws.
One 6 mm J000 screw (right above ports).

Schritt 5

Peel the rear rubber piece off with tweezers.

This is not needed : if you don't touch this rubber & screw the SD card cover will come off at the same time that the back case.

= Quicker and easier

Xavier - 24/08/22

Schritt 6

Remove one 4.25 mm J000 screw from behind the rear rubber piece.

This is not needed : if you don't touch this rubber & screw the SD card cover will come off at the same time that the back case.

= Quicker and easier

Xavier -

Schritt 7

Pull the eyepiece cover up to remove it.

Schritt 8

Remove two 6 mm J000 screws from behind the eyepiece cover.
On D7100 models, there is an additional screw holding the back plate on. This screw is located in the diopter (dial with + - on it). This screw can be accessed by peeling up this sticker on the diopter.

Concerning the diopter, it's wrong : D7000 also have a screw in it.

See step 41.

Xavier -

Schritt 9

Open the SD card cover by pushing slightly down with your thumb and sliding up.

Schritt 10

Remove four 6 mm J000 screws that secure the SD card cover.

Schritt 11

Gently pull the SD card cover off.

Attention! High voltage. After removing the memory card cover, remove the yellow sticker and use a 220 volt 15 watt incandescent lamp to discharge the capacitor.

Rust Twentyone - 02/11/19

Schritt 12

Remove the following screws that secure the back case:
One 6 mm J000 screw.
One 3 mm J000 screw.

Schritt 14

Disconnect the following two ribbon cables from the motherboard.
See our Cable Connector Guide for help with ribbon cable connectors!

Schritt 15

Remove the following screws securing the left motherboard shield:
One 2 mm J000 screw (on the bottom).
One 3.5 mm J000 screw (on the back).
Be careful of the grounding clips on the motherboard.

Schritt 16

Gently pry and lift the left motherboard shield off.

No need to remove shield. Risk of damaging clips holding shield.

Ziyang - 25/09/17

Schritt 17

Remove one 3.5 mm J000 screw securing the right motherboard shield.

No need to remove shield. Risk of damaging clips holding shield.

Ziyang - 25/09/17

Schritt 18

Gently lift the right motherboard shield off with the tip of a spudger.

Schritt 20

Disconnect remaining ribbon cables.

One more ribbon behind press down tab

Ziyang - 25/09/17

Schritt 21

Carefully disconnect the red connector with tweezers.

Schritt 22

Remove four 3.5 mm J000 screws securing the motherboard.

Schritt 23

Gently pull the port side cover away from the motherboard.

Schritt 25

Remove four 6 mm J000 screws securing the tripod plate.

Only left 2 screw need to be removed. The tripod plate do not need to be removed.

Ziyang - 25/09/17

Actually, nothing needs to be removed !

Skip this step and gain time and energy :)

Xavier -

Schritt 26

Carefully lift the tripod plate from the backside of the camera and slide out the grounding clip from under the lens mount.

Skip this step (see comment step 25)

Xavier -

Schritt 27

Disconnect black and white speaker cable.

Schritt 28

Remove three 6 mm J000 screws securing the image sensor.

Best to set markings on the three screws before removing sensor. To preserve alignment of sensor and body frame

Ziyang - 25/09/17

This step is NOT necessary if you don't plan on doing anything with the sensor itself

-> just let it all attached together and save yourself time and energy

Xavier -

Schritt 29

Carefully lift the image sensor plate out of the camera.

Schritt 30

Manually pop up flash by inserting a screw driver to the left of the viewfinder and pressing on the metal lever.
It won't take much pressure. Press carefully and the flash will pop up when you find the right spot.

Schritt 31

Remove two 5 mm J000 screws from under the flash.

Schritt 32

Remove two 3 mm J000 screws securing the front cover.

These screws should be the other way around. I took the 5mm screws out of the front cover. 3mm screws from under the flash.

Jamie MacLeod -

Schritt 36

Remove one 4 mm J000 screw from the front.

Schritt 37

Remove one 8.5 mm J000 screw from the battery compartment.

Schritt 39

Remove one 4 mm J000 screw securing the top case (under right strap hook).

Schritt 40

Remove one 4 mm J000 screw securing the top case (under left strap hook).

Schritt 41

Remove the sticker covering the diopter adjust screw.

Schritt 42

Remove one 8.0 mm J000 screw.
Remove the Diopeter Adjust.

Schritt 43

Remove the top case.

No mention of discharging the flash capacitor first?

digimaan - 16/10/16

Make sure you don’t get a shock off it .

Dean Wilkinson - 21/10/17

Schritt 44

Remove the Black, Yellow, Green cable from the top case board.

If intend to remove top panel entirely, will need to de-solder the black and red power cable

Ziyang - 25/09/17

Schritt 45

Remove two 6.5 mm J000 screws securing the viewfinder.
Remove the viewfinder cover.

Not necessary to remove the viewfinder cover for mirror box

Ziyang - 25/09/17

Schritt 46

Remove one 3 mm J000 screw from the bottom left side of the camera.

Don't do this : you don't need to, it's useless

Xavier -

Schritt 47

Remove two 6 mm J000 screws from the left of the shutter.

Not necessary

Xavier -

Schritt 48

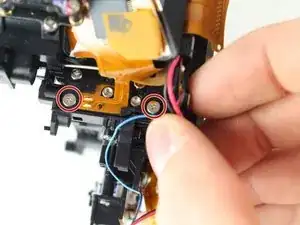

Remove two 6.5 mm J000 screws from beneath the lens mount.

Schritt 49

Remove two screws from just below and to the sides of the viewfinder.

Schritt 50

Remove one 5 mm J000 screw from the top right of the camera.

Schritt 51

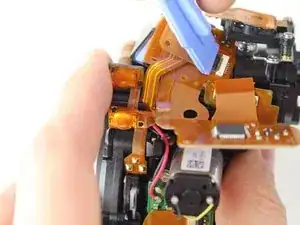

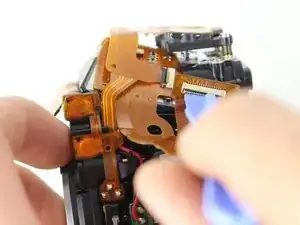

Carefully peel back ribbon cable on the bottom left of camera.

Schritt 52

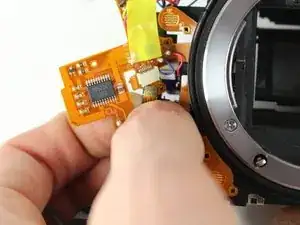

Remove the left front ribbon cable from top right of circuit board.

The illustration indicates this connector to be tilted upwards. I did - and broke the female connector. As shown on the right hand picture, the same thing has happened during the dismantling forming the basis for this “ifixit” instruction.

This ribbon should be pulled straight out - not lifted upwards

Bored Nomore - 01/11/17

Schritt 53

Remove all three wire connectors.

Schritt 54

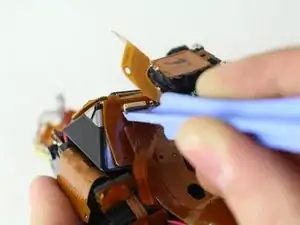

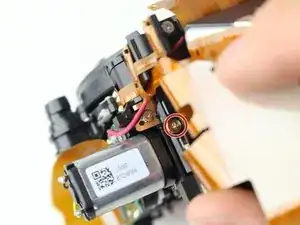

Separate the shutter assembly from the camera body.

This part left me in the lurch a bit, undid the top 2 screws holding the shutter in but there seemed more to undo to actually release the shutter.

digimaan - 16/10/16

If you intend to replace the shutter assembly only, you need to loosen it from the “shutter house” (don’ know correct term); (It is possible to purchase new blades only, but it seems complicated, and a shutter assembly costs around 35USD from Asia.)

There are 3 screws; 2 visible on the “top” of the shutter assembly and one hidden underneath some ribbons on the “underside”. Study the new shutter to identify the screws being part of of the assembly and the ones holding it to the shutter house. (3 screws as mentioned)

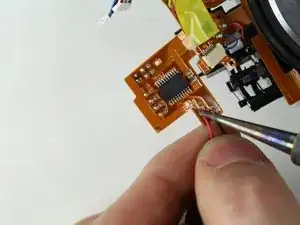

The power leads for the electric motor must be loosened by soldering (red and black cables).

A ribbon with 4 tiny soldering points has to be loosened with a sharp tipped soldering iron; If you don’ t feel competent; bring it to someone who can do the very delicate soldering - especially for connecting the new shutter assembly.

Bored Nomore - 01/11/17

I have followed this guide. But 2 small bits of rubber have appeared. Not a clue from where. Any ideas?

Paul Scott - 08/05/21
