Ninja Mega Kitchen System BL770 Circuit Board Replacement

Geschrieben von: Tommee Walker
  • Kommentare: 17
Ninja Mega Kitchen System BL770 Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 25 Minuten

Einleitung

In the chance that your circuit board stops working, this step-by-step guide will show you how to replace it. For soldering help, follow the How to Solder and Desolder Connections guide.

  1. JLqY1bSiWEmExw46
    JLqY1bSiWEmExw46
    OYEJIVAamIPcRN1S

    • Remove the five screws (13mm long, 6mm head) attaching the Base Cover using a Phillips screwdriver (Ph2).

    • Remove the two screws (13 mm long, 6mm head) attaching the Base Cover using a T10 screwdriver.

  2. SJWePFDgCtIKYmQB

    • Carefully remove the second layer from the base. You will not need a screwdriver for this step.

  3. WRAwfOqGoxRXUEEj
    WRAwfOqGoxRXUEEj
    ed1WJUCCSKCPdjmZ
    Whu1UiPQPE3svTXH

    • Remove the 2 screws (13mm, 6mm head) connected to the plastic piece holding down the power cord.

    • Then remove the additional 4 screws (13mm, 6mm head) and 2 screws (11mm, 5mm head) securing the base.

    • Carefully lift the base up from the rest of the blender.

  4. y2TUD22VPjCxOesu

    • Remove 4 screws (11mm, 4mm head) connecting the circuit board to the base.

    Where can I buy a new board?

    Forrest Lowe -

    Mein yeh circuit board kharidna chahta hoon kha se milega

    Pravjot Singh -

    Same question here

    Diego -

  5. BTvZ5DqOoTjcrprq
    BTvZ5DqOoTjcrprq
    4fYELAnl1ZHLRbIa

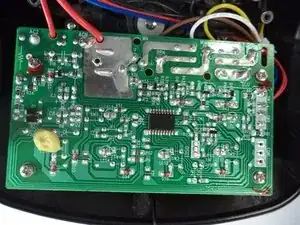

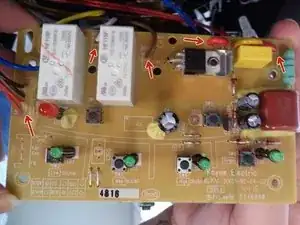

    • Cautiously desolder all the wires connecting the circuit board to the unit.

    • Carefully slide the circuit board free of the wires are place the new board in.

    • Solder the wires back onto the new board, keeping track of which wire goes where in order for your unit to properly function.

    Hi,

    I would like to know the specification of the metal oxyde varistor MOS as I need to change it.

    Thank you

    James -

Abschluss

To reassemble your device, follow these instructions in reverse order.
