If your blender doesn't power on, you may have a faulty or damaged power cord. This guide will show you how to replace it.
Step 9 requires you to re-solder the wire connections, so you will need to use the soldering guide from there.
-
-
Using the Phillips #1 screwdriver, remove the 5 screws (13mm long, 6mm wide) holding the outer base.
-
Lift the base up to remove it.
-
-
-
Remove the midsection by pulling it up. If the section is stuck, use the iFixit plastic opening tool to pry it off.
-
Pull the power cord through the mid-section opening.
-
-
-
Using the Phillips #1 screwdriver, remove the two screws (5 mm long, 3 mm wide) holding the power cord onto the motor cover.
-
-
-
Using the iFixit plastic opening tool, pry the motor cover off the general housing. Once it is loose, lift it up to remove it off the base.
-
Slide the cover all the way to the end of the power cord.
-
-
-

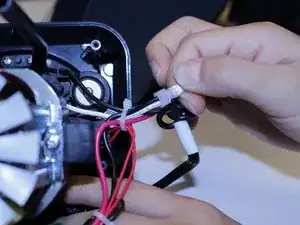

Remove the plastic caps on the wire connectors with your hands.
-

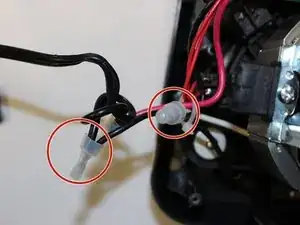

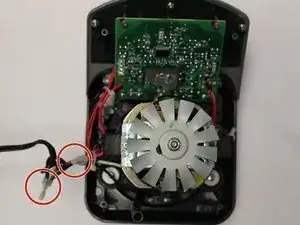

Ensure that the connections are not loose, corroded, or desoldered.
-
If the connections are desoldered, loose, or corroded, re-solder them using the iFixit soldering guide.
-
-
-

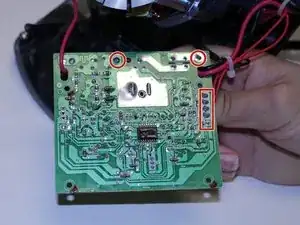

If the connections in the preceding step are good, check the connection of the wires to the circuit board.
-
If the connections are loose or damaged, the blender may not be getting power.
-
-
-
Re-solder the connections using the iFixit Soldering guide.
-

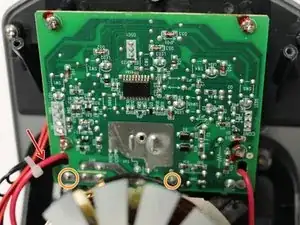

The red arrow shows where the wires enter the circuit board.
-
The orange circle shows where the black ground wire is soldered to the board and the blue circle shows where the red power wire is soldered to the board.
-
To reassemble your device, follow these instructions in reverse order.
