Nintendo DSi Top LCD Screen Replacement

Geschrieben von: rjcamero
  • Kommentare: 0
Nintendo DSi Top LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

1 Stunde

Einleitung

This guide has been updated by iFixit staff! Read the new, official guide here.

A guide on how to replace the Nintendo DSi top LCD screen.

  1. g6dlRVZpjEeBlDqS

    • Loosen the two screws on the battery panel. Then lift the panel up to remove it.

  2. ZKKCp1kR1lAijwch

    • L Button.

    • Top of the battery pack.

    • To remove the battery pack, place your fingernail or a spudger at the top of the battery near the L button. Gently lift the battery out.

  3. ukOUjU2VjZKDFAbq
    ukOUjU2VjZKDFAbq
    JOOYjwMsyvXXYVjD

    • Remove 4 Phillips screws from the board.

    • Lift the main board from the bottom end and flip it over to reveal the last connector.

    • Keep the main board fairly close to the case, making sure not to damage the last ribbon cable holding it in place.

  4. QpOGrUCsd6C4JcW2

    • Disconnect the ribbon cable by gently using a plastic opening tool to flip up the black connector latch. The cable should easily slide out from the connector.

    • The motherboard should now be free from the rest of the device.

  5. OsgPDQFTgVm21XIo

    • Remove the rubber front-panel button membranes from the device. Pay careful attention to where the buttons go, so you can replace them correctly.

    • A/B/X/Y button assembly

    • Select/Start button assembly

    • D-pad

    • Power button

  6. crNbfwOk4BCMf5nk
    crNbfwOk4BCMf5nk
    YLgC5WpnQUOTska2

    • Remove the plastic buttons and keep them in a safe place.

    • All of the buttons have "key" notches to prevent them from being inserted incorrectly (backwards or in the wrong place), but it can take a while to figure out where everything goes if they get shuffled around.

  7. jA2vQQouUJ4vpVCs
    jA2vQQouUJ4vpVCs
    pUohmvdWMyHabrEW

    • Flip the case open, and push the lower screen assembly out of the frame.

  8. pLP2tXhOjfEvBKR1

    • To make the repair easier, we recommend removing the bottom LCD screen prior to replacing the top LCD screen.

    • Using a spudger, or similar tool, pry out the 4 square screw covers.

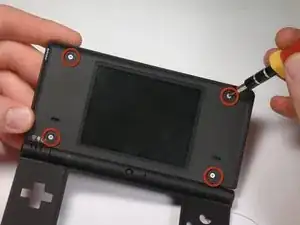

  9. 3BfBMELcdmaK1wZP

    • Remove 4 Phillips screws with a #00 Phillips screwdriver.

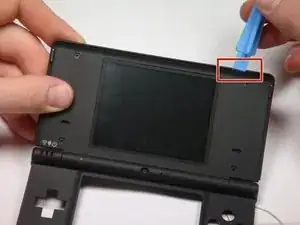

  10. DLffYH43M1DwHdpe

    • Place a plastic opening tool between the front panel and top edge of the outer case. Slide the tool along the edge as needed to prop open the case.

    • With the screen facing you, slide the screen side down with your thumbs to separate the screen from the cover.

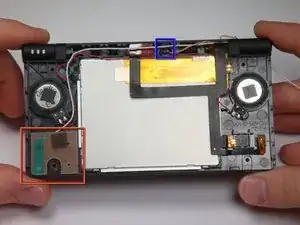

  11. htBetJSoZ2tbca6D

    • Remove the antenna from the bottom left of the device.

    • Remove the microphone from the top of the frame.

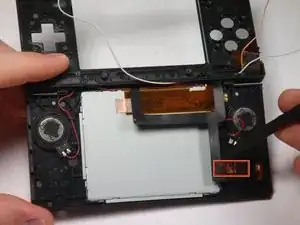

  12. KnUjrxHM5nwR1WqA

    • Use a spudger to pry the camera out of its place.

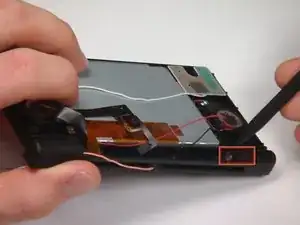

  13. uW4qEWDhUiscSeVS

    • Cables for the components in the upper half of the device run through the hinge, which must be carefully disassembled before continuing.

    • Start by pushing the sliding shaft in the hinge on the opposite side of the wires/ribbons.

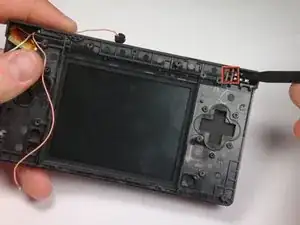

  14. cbhBNF5Deq5SEOx1

    • On the reverse side of the casing, insert the spudger onto the surface of the sliding shaft just left of the LED light channels.

    • Push the sliding shaft completely through the hinge until it stops and the hinge is released.

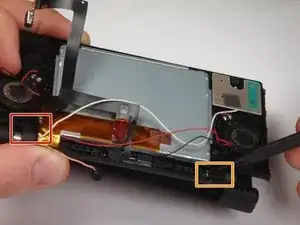

  15. heSyDHW3DrOqrWlE

    • The right side of bottom case should separate from the top case when you remove the sliding shaft.

    • Do not pull up too far or the wire hinge may be damaged.

    • Slide the top case to the right to separate the joint.

    • Weave the wires and ribbons through the wire hinge to completely separate the top and bottom casings.

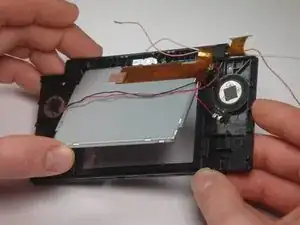

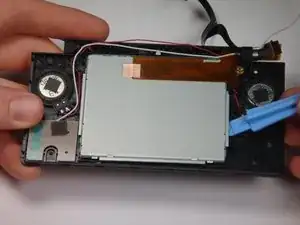

  16. CwEQmyWDc4HFXeQG
    CwEQmyWDc4HFXeQG
    gJPTvHpnUI46UOaB

    • The speakers are soldered to the ribbon cable attached to the upper LCD, so they must be removed at the same time as the LCD.

    • Lift the top LCD out of the plastic frame. Carefully thread the ribbon cable out of the hinge to avoid damaging it.

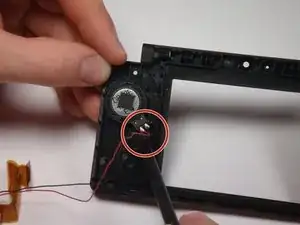

  17. kee1ptg6yJ1HumJa

    • To remove the speakers, place a flat object underneath and gently pry them off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
