Nintendo Switch Pro Controller Joystick austauschen

Geschrieben von: Daniel Tagalog
  • Kommentare: 33
Nintendo Switch Pro Controller Joystick austauschen

Schwierigkeitsgrad

Schwierig

Schritte

16

Zeitaufwand

35 - 40 Minuten

Einleitung

Diese Anleitung zeigt, wie du defekte Joysticks in deinem Nintendo Switch Pro Controller austauschen kannst. Du musst dazu Kenntnisse im Löten haben. Beim Abnehmen der Kunststoff-Gehäuseschalen und der Leiterplatten musst du besonders vorsichtig sein, damit das Gerät nicht unrettbar beschädigt wird. Bei dieser Reparatur wird auch der Lithium-Ionen-Akku ausgebaut, wenn dieser aufgebläht ist, musst du geeignete Vorsichtsmaßnahmen treffen.

  1. iaKRfcPV2HNC5yUK

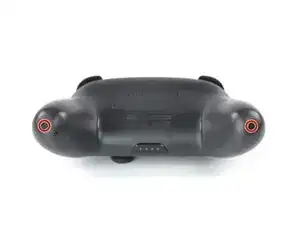

    • Drehe den Controller so um, dass der Aufkleber mit der Modellnummer nach oben zeigt.

    • Entferne die beiden schwarzen 8,4 mm Flachkopf-Kreuzschlitzschrauben mit einem JIS #00-Bit mit denen die Handgriffe am Ende verschraubt sind.

    Be carefull, these screws are super easy to strip even with the right tools.

    Lukas Eberharter -

    I tried editing these instructions after I had trouble with stripping screws, but it doesn't seem to take. The issue is that these are JIS and not Phillips screws. They are VERY similar looking but a Phillips head screwdriver will strip the screws.

    Isaac Webb -

    I tried using a Philips #00 screwdriver but it didn’t work

    vincent ingrassia -

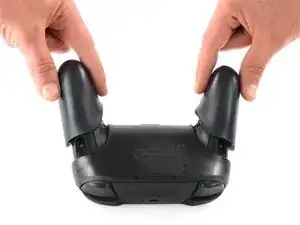

  2. pFHHOlTyvlQ43DOC
    pFHHOlTyvlQ43DOC
    KCE54LsPyGnuWTkW
    UNYZtREEKVfHallZ

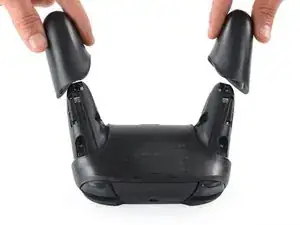

    • Ziehe die Abdeckungen der Griffe vorsichtig vom Controller.

  3. 3OnYDcOU1gVR2fEG

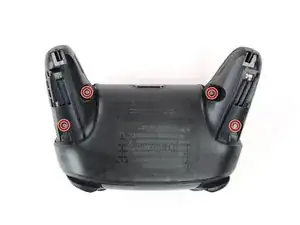

    • Entferne die vier silberfarbenen 6,8 mm langen JIS-Schrauben #00, mit denen die durchsichtige Abdeckung befestigt ist.

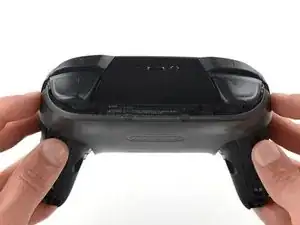

  4. Zb3Ool4Evh63KKVd
    Zb3Ool4Evh63KKVd
    E4qBEgOibCQbXlIJ
    jihxJQfDSqclVJnF

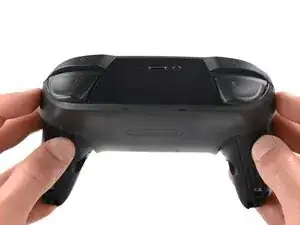

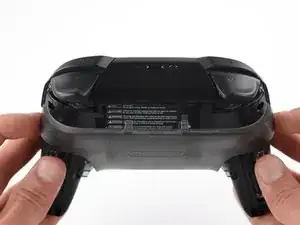

    • Löse die durchsichtige Abdeckung mit deinem Fingernagel ab.

  5. p4bHAkTpIvuBFIfc

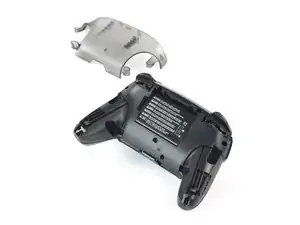

    • Entferne die durchsichtige Abdeckung.

  6. yUbMYllrTC6sSOGL
    yUbMYllrTC6sSOGL
    6pxWhyQpxoXGbs22
    vEF6WXIGCHUebiZO

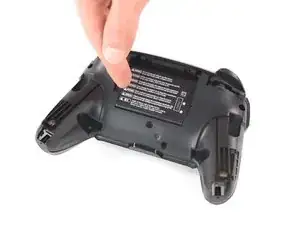

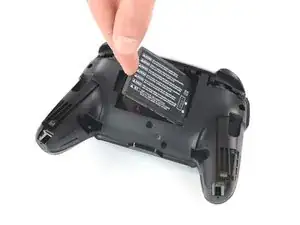

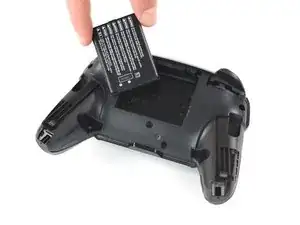

    • Entferne den Lithium-Ionen-Akku, indem du ihn mit deinem Fingernagel oder einem Öffnungswerkzeug an der linken Seite anhebst.

    • Dafür brauchst du nur wenig Kraft.

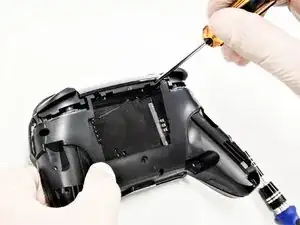

  7. 41hYi1SofYMKVF4B
    41hYi1SofYMKVF4B
    IhtOVVcrnx5IBHgJ
    WJ4LvGQlKLhlREns

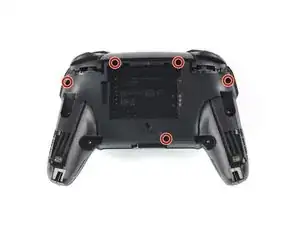

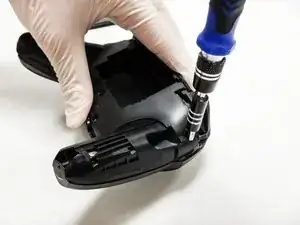

    • Entferne die fünf 6 mm Kreuzschlitzschrauben auf der Rückseite des Controllers.

    the 2 screws up at the top are unreachable with the standard fixit kit just a heads up

    drew -

    Seconded. the screws are located too deep below the plastic slot, and the bit holding bulge is too wide for the small aperture (similarly with the flexible extension). the bit length is too shallow to reach.

    An alternative driver with a much narrower & longer shaft is required, which will likely not come with interchangeable bits.

    Douglas Selby -

    I would say it is possible to reach the top left screw, just not the top right - there is a gap in the top left that allows you to slightly bend the standard driver outward to turn it while still making adequate contact.

    El_Mechacontext -

    An update: I was actually able to remove the top right one in a really hacky way - inserting the Phillips #0 bit into the #4 hex bit, and then using that in the standard driver. This added just enough length to successfully reach and make full contact with the screw!

    El_Mechacontext -

    Using the #4 hex bit as an extension was the exact "hack" I needed to get rid of the drift finally. Thank you. You're a lifesaver.

    Das #4 Hex Bit als Verlängerung für das Kreuzschlitz Bit zu nutzen ist zwar etwas eng, aber es erspart einem wirklich einen zusätzlichen Schraubendreher.

    Techn0magier -

  8. PnIrdtdY4KCyxuKK
    PnIrdtdY4KCyxuKK
    ZBKtxPXnhQuBTaDN
    OZcevYGCPPARFaRx

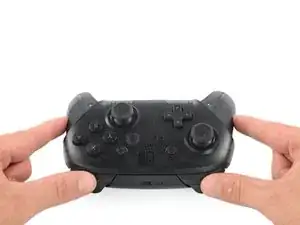

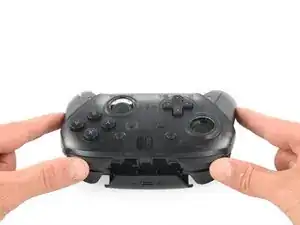

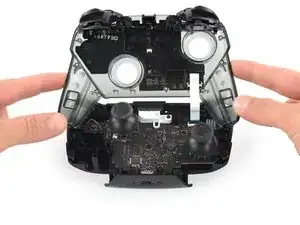

    • Nimm die Kunststoffabdeckung des Controllers behutsam ab.

    • Entferne die Abdeckung noch nicht ganz, sie ist noch mit einem weißen Flachbandkabel an der Hauptplatine angeschlossen.

    Didn't realize there is adhesive holding the front cover onto the unit. It's located inside of the handles. Just a bit of force there helped, just be careful of the cable.

    Roger Perez -

  9. NpVhXDsYSWmW4tBT
    NpVhXDsYSWmW4tBT
    QXe1DlCMuCXbrveX

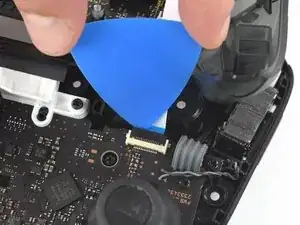

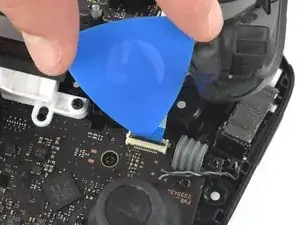

    • Drücke den schwarzen Sicherungsbügel am ZIF-Anschluss mit der Spitze eines Plektrums zum Öffnen nach oben.

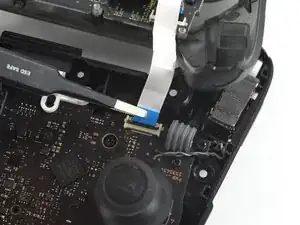

  10. 3qj6VtFJtKAHHm6I
    3qj6VtFJtKAHHm6I
    YJvaLXngDhvHF1Gr

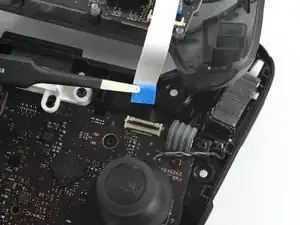

    • Löse das Verbindungskabel mit deinen Fingern oder einer stumpfen Pinzette aus seinem Anschluss.

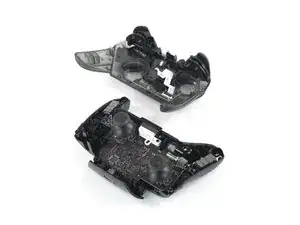

  11. OpC2vBHXBB35uAQ4

    • Entferne das vordere Gehäuseteil.

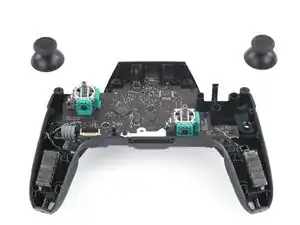

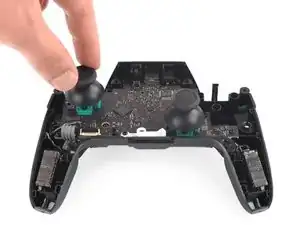

  12. fmhalkYPurcsCRYL
    fmhalkYPurcsCRYL
    elaYKLLtkDSyGABw
    rEIOPXEXhFo3sEO1

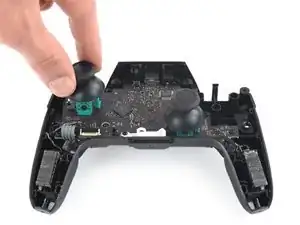

    • Ziehe mit leichter Kraft die beiden Joystickkappen vom Controller ab.

  13. dTuT4xSHUxiNECZU

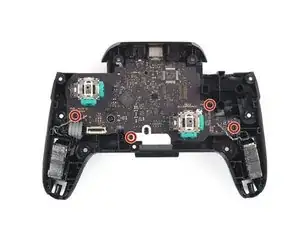

    • Entferne die vier 5 mm Kreuzschlitzschrauben, mit denen die Hauptplatine befestigt ist.

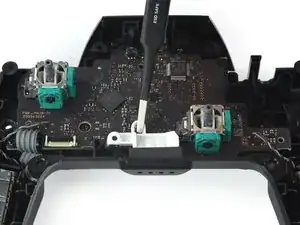

  14. BMiSYbhVXs6Z3Y6U
    BMiSYbhVXs6Z3Y6U
    sZdbNwAjKaEEAa2e
    SM4NBN5cFyWiAWXF

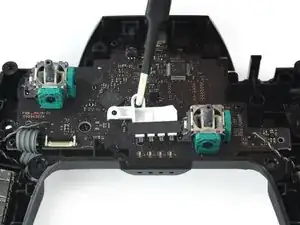

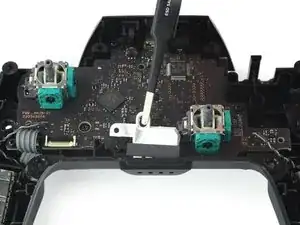

    • Löse das LED-Licht mit mit einer Pinzette oder deinen Fingernägeln aus seiner Fassung.

    • Lege das LED-Licht samt seiner Schraube bis zum Zusammenbau zur Seite.

    You are not removing the 4 LEDs here, they are soldered on the board. You are only removing the light transporting plastic piece.

    Uncle BenZ -

  15. ZhSJFHfoB5uIhdwh
    ZhSJFHfoB5uIhdwh
    FocRPjIyriVEQ5Y6
    BgjPKaESfuRXL5Bj

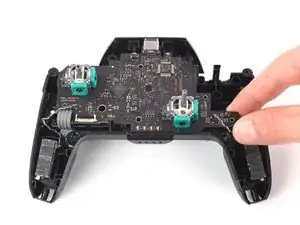

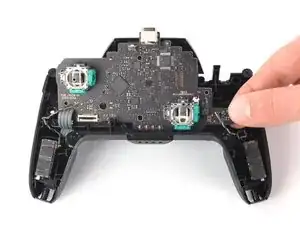

    • Löse die Platine aus dem Gehäuse, indem du sanft an der unteren rechten Ecke ziehst.

    • Hebe die Platine hoch, um an die Rückseite zu gelangen.

    • Setze hier nicht zu viel Kraft ein, du könntest die Kabel beschädigen.

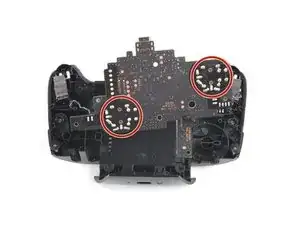

  16. uia1EpJV3nO4epIX
    uia1EpJV3nO4epIX
    UGJsFktqRYicBsPH

    Bonjour,pour dessouder les joysticks, qu’avez-vous utilisez comme outil: de la tresse ou une pompe à dessouder ?

    Par avance merci.

    Patrick

    le hellegouarch -

    J’ai utilisé une pompe, avec de bons résultats

    Brian -

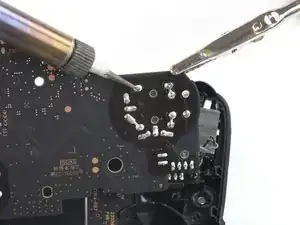

    The most difficult part of this was desoldering. I used no-clean soldering braid and the original solder did not wick up. I heated each solder pad and added just a bit of 60/40 tin/lead solder. After that the braid worked much better and all solder wicked up to the braid allowing me to remove the component.

    paulshopping -

    I used this tutorial to replace one broken joystick after it took s heavy hit but now both of my joysticks drift and when I tried to calibrate them they looked to be moving on there own please help

    Jeroen Zomer -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten dieser Anleitung in umgekehrter Reihenfolge.
