Nostalgia Electrics PCM805 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to replace the motor in the cotton candy maker if it has gone bad.

Werkzeuge

Schritt 1

Unplug the device before following this guide.
First, place the device on its side, making sure the switch is not facing down.
Remove the eight 12mm Phillips #02 screws from the base.

Schritt 2

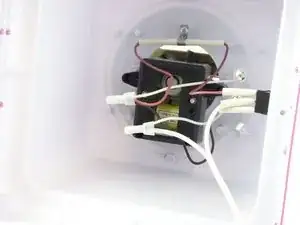

Gently separate the panel from the device.
Be sure not to tug at the wires that are still connected.

Schritt 3

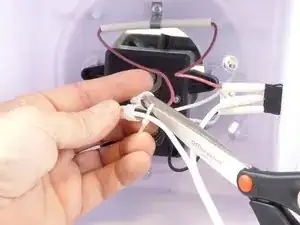

Locate the tie strap holding the wires and cut with a pair of scissors.
Use care not to snip the wires.

Schritt 4

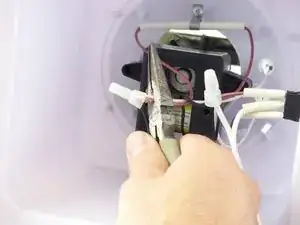

Make note of the wiring arrangement of each bundle before this step.
Using wire cutters, cut each wire as close to the wire connector as possible.
Cut the wires in both bundles.
To reassemble the cotton candy maker after cutting the wires, follow our rewiring guide.

Schritt 5

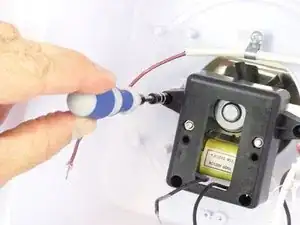

Remove the four 12mm Phillips #02 screws to free the motor housing.

Schritt 6

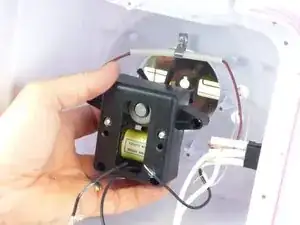

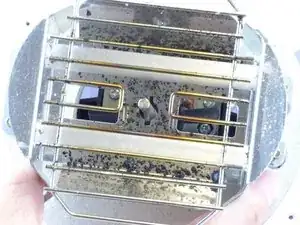

Line up the prongs on the motor shaft with the holes in the heating element and pull the motor out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
