Einleitung
This guide shows how to replace the audio jack without needing to replace the entire motherboard it is attached to.
Please note that this guide requires soldering. For more information on how to solder and desolder connections, please visit this guide.
Werkzeuge
-
-
Turn the Numark N4 over so that the bottom panel is facing upwards.
-
Loosen and remove the 17 12mm screws from the bottom panel using a Phillips #2 screwdriver.
-
-
-
Using your fingers, gently pull apart the two panels of the device until you feel resistance from the cables.
-
-
-
Open the two panels completely, gently placing each side on your working area to avoid damage to the buttons on the outside face.
-
-
-

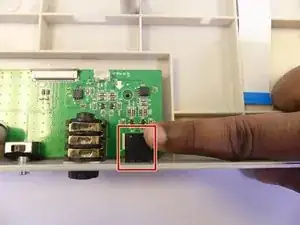

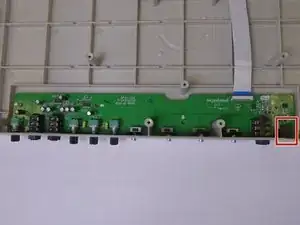

Using a soldering station, carefully desolder the connection points around the audio jack and remove it.
-
To reassemble your device, follow these instructions in reverse order.
