OontZ Angle 3 Speaker Replacement

Geschrieben von: Mason Hollander
  • Kommentare: 10
OontZ Angle 3 Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

In this guide, some soldering is required when disconnecting the speakers from the motherboard. If you are unfamiliar with soldering, watch Soldering Tutorial for Beginners, Five Easy Steps to familiarize yourself and to be able to correctly replace the speakers.

  1. jVxkGEDZsJTGy6HZ
    jVxkGEDZsJTGy6HZ
    DFDjL5uFletAoYeM
    PBBvIcLc3yWGdL6D

    • Make sure that the OontZ Angle 3 is powered off before starting the disassembly.

    • Use the plastic opening tool to remove the rubber caps from each end of the speaker.

    Where do I buy the OontZ Angle 3 Motherboard?

    David Dy -

  2. bDVIBewXgmJR1bas

    • Remove four (4) 11.7 mm Phillips #0 screws from each side at the bottom of the speaker.

  3. qiWHgjEQCFJPkgNV
    qiWHgjEQCFJPkgNV
    L1YNetHjMPxSD1NS

    • Use the plastic opening tool on one of the corners to separate the bottom piece from the speaker, and then remove the piece.

    I bought this 6 months ago, it works pluged into power source, but once unpluged will not work. Even being left on charger over night.

    Also i pluged it in the red light is on but glows dim then bright. Is this normal?

    I bought it off Amazon brand new

    smlboehm -

    I cannot believe I am unable to find one video to show how to properly open up the speaker to fix the female port.

    I WAS VERY HAPPY with my speakers untill the ports malfunctioned a year after purchased. No warranty and NO illustrations ABOUT opening the housing without damages using PLASTIC TOOLS AS RECOMMENDED .

    So now I have great speakers that are now disposable since I cannot open the %#*@ housing.

    Great product until it is charged ONE too many times.

    josephfcoco -

    Cant replace drivers if you cant buy replacement drivers!

    Andrew Hardy -

  4. MtJY2MThkvwgxA2t
    MtJY2MThkvwgxA2t
    AYAXFpfWCbP1kiM6

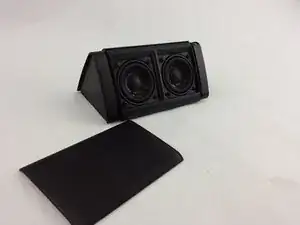

    • Use the plastic opening tool to remove the front speaker plate from the speaker.

  5. fKdZ3gDPfutXHlIF
    fKdZ3gDPfutXHlIF
    5nqS2WClbcDxWS3Q

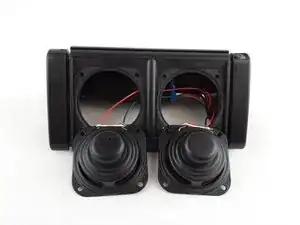

    • Remove the eight (8) 5.25mm screws with the Phillips #0 screwdriver.

    • Open access to the speakers by letting them rest as shown.

  6. DYcocQfqULyRvNVj
    DYcocQfqULyRvNVj
    yfjMLGy6gyeaoEUl

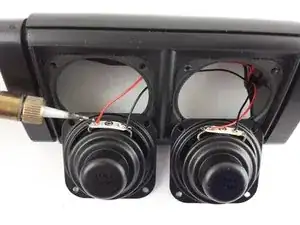

    • Use the soldering iron to carefully disconnect the speaker(s) from the motherboard connection wires.

    • Learn more about soldering here.

    • Remove the disconnected speaker(s).

    • When reconnecting the wires to the new speaker(s), be careful to connect the wires to the correct nodes (red for positive and black for negative). If they are reconnected to the wrong locations the speakers will either not work or break.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mason Hollander

Mitglied seit: 20/01/16

1266 Reputation

6 Kommentare

Where do you buy replacement speakers?

michalfiona -

Where do you buy the replacement speakers?

What type to buy?

michalfiona -

where i buy the speaker replacement/

Sharina Uadan -

Where can i buy the replacement speakers

Anil Meda -

same question, I am looking for original speaker for oontz angle 3 and I can’t find one. Those who are looking for the size, its 40x40mm (1.57”) 4ohms 3W

Dwayne Champ Manuel -

I contacted Oontz recently and was told they have no replacement speakers and that my only option was to purchase a new gen 4 speaker. Guess its the secondary market for me..

jrapuzzi -
