Oontz Angle 3 ULTRA Battery Replacement

Geschrieben von: Noah Plaza
  • Kommentare: 3
Oontz Angle 3 ULTRA Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

If your device is not charging properly or not turning on at all, it may be time to replace the battery in your device. This guide will illustrate the steps that you will need to take in order to replace the battery in your Oontz Angle 3 ULTRA. Soldering is a necessary skill to complete this guide, so please read the How to Solder and Desolder Connections Guide for more information.

  1. YUbPfQ6RbZakYaNN
    YUbPfQ6RbZakYaNN
    EvIX5qtFMrWxZYAU
    vKxGJBCqoyPAdfS5

    • Remove the two black rubber sheaths around the edges of the speaker.

    • Under the symbol-marked sheath there is a white rubber covering for the buttons. Peel this away to reveal the panel underneath.

    • On two corners of its triangular face there is a small divot, which allows you to use your fingernails or a pair of tweezers to grip and peel away the covering.

  2. oDoGZE3dPGSJFVpS
    oDoGZE3dPGSJFVpS
    dgcu4RoGcKFURUpE
    l3bMUFUBxLPxVE5L

    • Use a JIS #0 screwdriver to remove the six screws to expose the motherboard.

  3. fkAq2Vm3TKoiw1lL
    fkAq2Vm3TKoiw1lL
    5aexYmHKcxTsnDPe
    xERrraHvXaOZtAPg

    • Using a pair of tweezers, pinch and pull the rubber fillings obstructing the screws.

  4. a1DdR5GASZUugcEX
    a1DdR5GASZUugcEX
    hFA55fndcvYKNs2B
    bqlZBLilAQldajJP

    • Using a JIS #0 screwdriver, remove the 6 screws holding the backplate in.

    • Remove the back panel off of the device.

    Where can I get the mother board and other parts to buy for the Oontz angel 3 please

    Christopher Dunkley -

  5. tZymLFXGqaCFvjIS

    • Make sure that the device is OFF before operating here, as an electrical spark may occur if the device is operating.

    • Once the motherboard is exposed after disassembly, follow the thick black and red cords from the battery pack to their attachments to the board.

    • Use the soldering iron to melt the positive and negative connections.

    • For more information on soldering and desoldering connections, please read the How to Solder and Desolder Connections Guide.

  6. X3JRQU2tIGUolj2R

    • After you have disconnected the battery from the motherboard, use a box cutter or exacto knife to carefully cut the blue wrapping around the battery.

    • Aligning the edge of the knife tangent to the battery works best for avoiding a cut to the electrolyte itself.

    • Please take extreme caution with this step. You may remove the blue tape with another method but if you do use an exacto knife, please do not cut into the battery.

  7. 1HMLncKECtrhDcdd

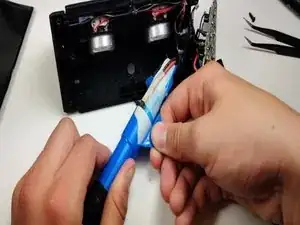

    • Once cut, it should require no more than your fingers to peel away the blue wrapping around the battery, and expose the terminal.

  8. qOUrLoot4ROIum6G

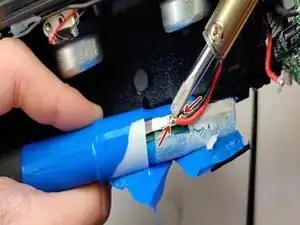

    • Finally, use the soldering Iron on the two terminals of the battery connection to disconnect it from the wire.

    • To reconnect the battery, solder the two terminal connections, or use the replacement battery's wires to reattach to the motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
