Oontz Angle 3 ULTRA Micro USB Port Replacement

Geschrieben von: Ian

Kommentare: 2

Oontz Angle 3 ULTRA Micro USB Port Replacement

Schwierigkeitsgrad

Very difficult

Schritte

Zeitaufwand

30 Minuten

Einleitung

If your Oontz Angle 3 ULTRA speaker is not charging or connecting to external devices, you may need to replace your speaker’s Micro USB port. This replacement guide will walk you through replacing the Micro USB port of your Oontz Angle 3 ULTRA Bluetooth speaker. For this guide, you will need a spudger, a Soldering Iron with Solder Wick or a Solder Sucker, and tweezers. Follow this guide to learn how to solder and de-solder connections. Wie man Lötverbindungen herstellt und entlötet

Werkzeuge

Schritt 1

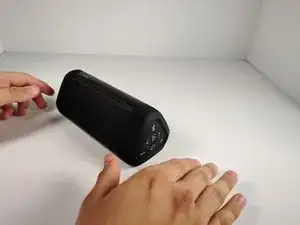

Remove the two black rubber sheaths around the edges of the speaker.
Under the symbol-marked sheath there is a white rubber covering for the buttons. Peel this away to reveal the panel underneath.

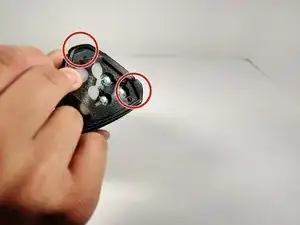

On two corners of its triangular face there is a small divot, which allows you to use your fingernails or a pair of tweezers to grip and peel away the covering.

Schritt 2

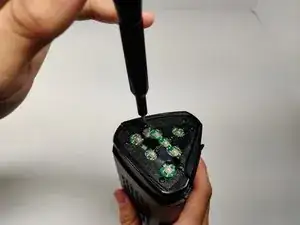

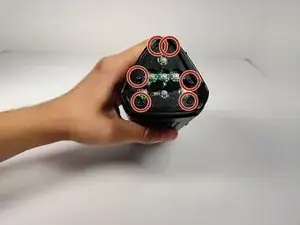

Use a JIS #0 screwdriver to remove the six screws to expose the motherboard.

Schritt 3

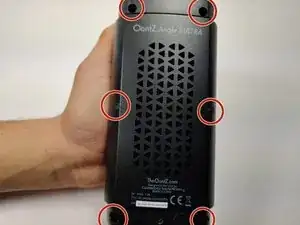

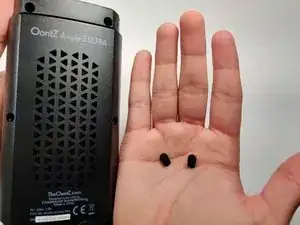

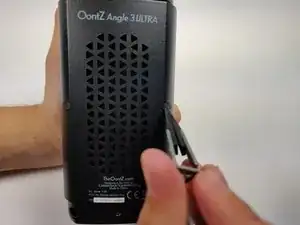

Using a pair of tweezers, pinch and pull the rubber fillings obstructing the screws.

Schritt 4

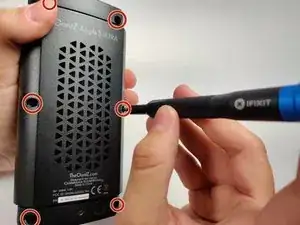

Using a JIS #0 screwdriver, remove the 6 screws holding the backplate in.

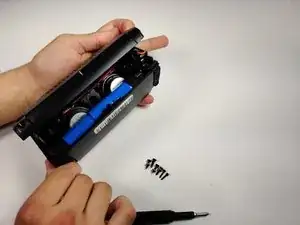

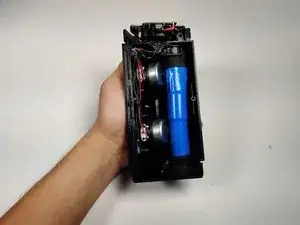

Remove the back panel off of the device.

Where can I get the mother board and other parts to buy for the Oontz angel 3 please

Christopher Dunkley - 11/04/21

Schritt 5

Gently push the ports away from the speaker enclosure with the spudger to free the motherboard.

Schritt 6

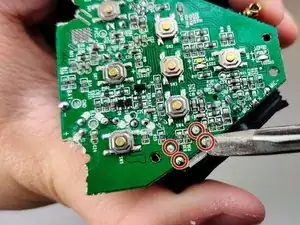

With your solderwick and soldering iron, remove the solder at each point, and gently pull the micro USB port away from the motherboard with the tweezers.
More information on soldering, please read the How to Solder and Desolder Connections Guide.
