Orbo Jr. Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

40 - 45 Minuten

Einleitung

There are plastic clips that will need to be pried that could be broken easily. When prying anything around the screen be careful so the display/screen is not damaged.

  1. I3KuJlYHHQJvnmVu

    • Use your thumbs to gently pry the silicon case away from the tablet starting at one of the corners. Once the first corner is separated the other three corners should slip off easily.

  2. RoNamRwpUHOkFGIp
    RoNamRwpUHOkFGIp
    bKcQgTfZvWvCLmUB
    YWbB42fEW2RMnPXD

    • Use the plastic opening tool to pry the back off the tablet. Work your way around the edges. Once you have one side open you can slowly unsnap the rest of the case and use the tool as needed.

    • Go slowly when you pry the back off to ensure you do not crack the case or damage the screen.

  3. BFVq3veJDfsjJgFj

    • Gently pull the cables attached to the speaker to remove it from the back cover.

    • The speaker is taped in the back cover and caution should be used when pulling on the wires.

  4. H2bVvTIWwAaCWEEl

    • Pull back the tape to expose the wires that are attached to the battery.

  5. ymFKagKskGnjjFM4
    ymFKagKskGnjjFM4
    NPRVtCW2hXBpeFhr

    • Do not attempt to fully remove the battery. It is still connected to the motherboard by two wires.

    • Use a nylon spudger to lift the battery from the right side of the device. Slowly remove the adhesive below the battery.

    • To avoid damage to device and battery, do not attempt to remove the battery until adhesive is completely detached.

  6. NfZJ5y6PoEqmBrYk
    NfZJ5y6PoEqmBrYk
    J5RXHd2OYVYjUaZx
    yUEHSgP6WeHw1M4h

    • Desolder the battery wires from the positive and negative connection to the motherboard. Check out iFixit's How to Solder and Desolder Connections guide for soldering help.

    • Positive and Negative battery terminals.

    • Be careful to not make contact to other components on the motherboard while using the soldering iron.

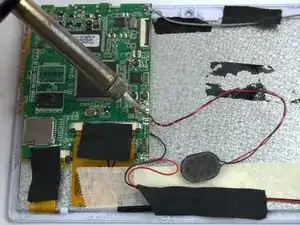

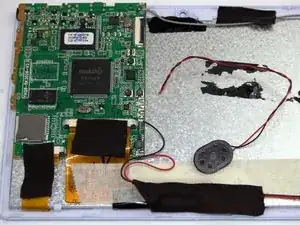

  7. ErPd1JuZrwrjLjLU
    ErPd1JuZrwrjLjLU
    aopsYWtbd4tAkyqW
    CKVyxjsFNOlPRRsk

    • Unsolder the positive and negative speaker wires from the connection on the motherboard.

    • Positive and Negative battery terminals.

    • Be careful to not make contact to other components on the motherboard while using the solder iron.

  8. e4ZgrPtY1xL1TXng
    e4ZgrPtY1xL1TXng
    VuW5KCDZmZYMyXhg
    NNwJLTLgMksCOrYE

    • Use the pointed end of a spudger to flip up the black tab connecting the camera's ribbon cable to the motherboard.

    • Camera ribbon clip.

    • Pull lightly on the ribbon to remove the camera ribbon from the tab.

  9. YZZvqMDIj6mQhsmy
    YZZvqMDIj6mQhsmy
    BAa6YbL6n5NOOEp4
    1qGtpflP2wbeKTXY

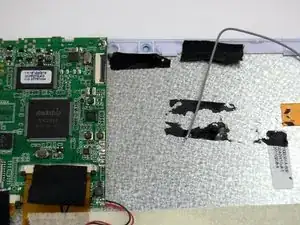

    • Unsolder the Wifi wire from the connection on the motherboard.

    • WiFi terminal

    • Be careful to not make contact to other components on the motherboard while using the solder iron.

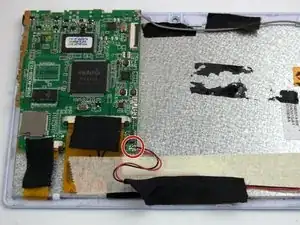

  10. VftHgkRGiOsQAhQB
    VftHgkRGiOsQAhQB
    OLEkoKkRtDNxJ3up
    WEvpo1BrgRsL5sHI

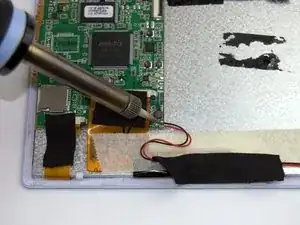

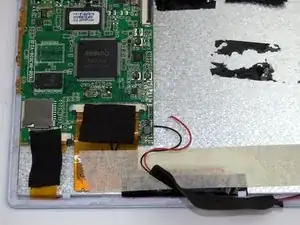

    • Unsolder the display wires from the connection on the motherboard.

    • Display wires

    • Be careful to not make contact to other components on the motherboard while using the solder iron.

  11. DxI1JvWm2T3M2WbD

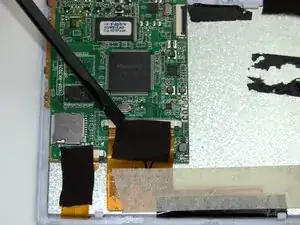

    • Use the flat end of the spudger to lift and remove the black tape covering the ribbon connection tab.

    • The tape should be removed slowly.

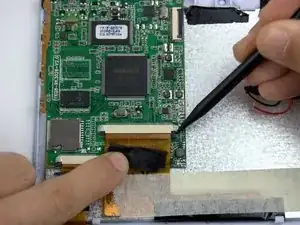

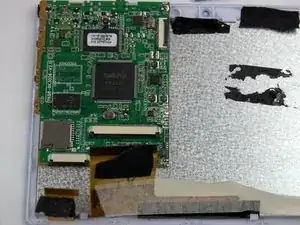

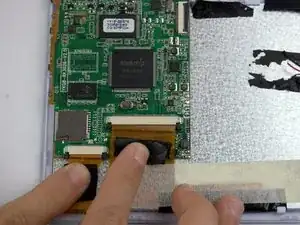

  12. fyXLcBKVCJUFqcDd
    fyXLcBKVCJUFqcDd
    NlW16dXHdkpueyN6
    PAS1Yw3HVBKOJcDX

    • Using the tip end of the spudger, slide back the black clips on the side of the right ribbon connection.

    • Gently pull the display ribbons to remove them from the motherboard connections.

    • Repeat the same steps for the left ribbon connection.

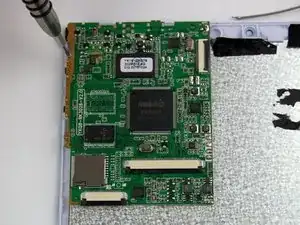

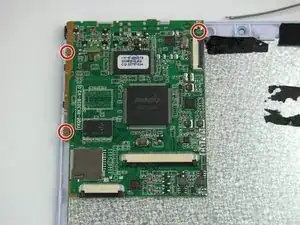

  13. JQV5O2YFqG61ZfLM
    JQV5O2YFqG61ZfLM
    jew2vjhfQRPvEy4Y
    xwZlTKn2ZCaGLukd

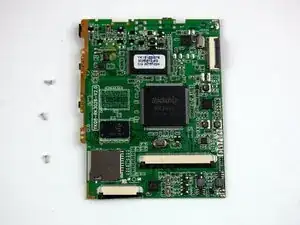

    • Remove the following Phillips #000 screws securing the motherboard.

    • Three 3.0 mm screws

  14. 3hrgYYnkatXDeAZ2
    3hrgYYnkatXDeAZ2
    X2wEPSawnnxLjPxE
    yAXBNlmbSBoZBDno

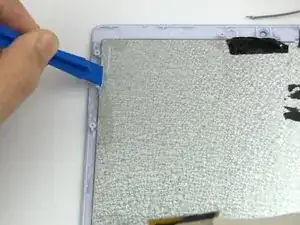

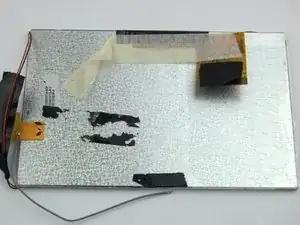

    • Along the edge of the display, there are 7 plastic clips that connect the screen to the front of the case.

    • Plastic clips

    • Use a plastic spudger to separate the clips from the display.

    • Use caution in prying the display from device to not damage the clip or the cover of the display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
