PSP 1000 Buttons Replacement

Geschrieben von: Henry Lee

Kommentare: 18

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 Minuten

Einleitung

The PSP's buttons may become jammed or may not function properly. This guide will show how to access the buttons for repair, cleaning, or replacement.

Werkzeuge

Phillips #00 Screwdriver

Schritt 1

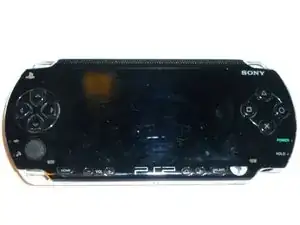

Turn the PSP over so its back is facing you.

Schritt 2

Locate the battery casing button on the rear-left side of the PSP.
Press down the button and remove the battery cover.

Schritt 3

Using your finger, remove the battery upwards from the system as shown.

The use of the opening tool is completely unnecessary. There is a finger actuated opening latch button that says “PUSH” on it. Simply press down with your thumb then slide your thumb down and away, dragining the battery door with it. It will then come off. Assuming the system still has its original plastics, they may have become brittle enough that the opening tool could damage the release button or the plastic cover.

Franklin Allen -

Schritt 4

Remove the four screws shown with a Phillips #00 screwdriver.
You will have to peel back the guarantee sticker to access the screw on the lower left.

Much luck to you if you have a tiny, metal screwdriver like I did, the screws might be stuck in there and may require some force.

Squib - 14/08/17

you need to peel back the warranty sticker in order to access both the lower left and lower left screws

Frederick zzstu Geib - 18/03/20

This is a bit misleading, you should only remove the two black screws in the battery compartment. The silver ones can stay.

Damian Cartwright - 21/10/20

The two left hand screws won’t come out of mine

XULF -

iFixit screwdriver bits aren't thin enough to reach the two screws on the right near the memory stick slot.

Fliggle_Slaps -

Can't edit previous comment so here's a new one:

Standard or older iFixit screwdriver bits aren't thin enough to reach the two screws on the right near the memory stick slot. You'll need precision bits that have longer tips to reach these deep screws.

Fliggle_Slaps -

Schritt 5

Remove the screw from the bottom side of the PSP. Keep it separated from the rest of the screws.
Remove screws from back righthand side within the holes.

Schritt 6

Gently separate the outer plastic casing from the rest of the system as shown.

Schritt 7

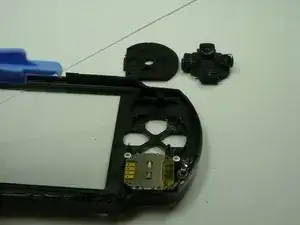

If the Arrow Buttons are not functioning properly, flip over the outer casing and locate the inside of the buttons, as shown

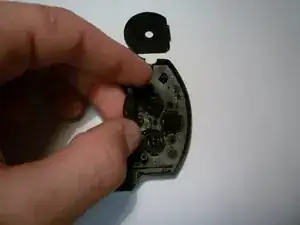

Carefully remove the black rubber backing off of the buttons.
Clean the inside of the rubber and the outside of the buttons with a cloth.

Schritt 8

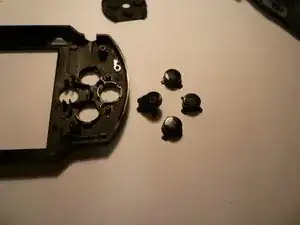

If needed, replace the old buttons with a new set (which can be purchased from Sony or other electronics stores).
Carefully re-insert the buttons. This should not require excess force, as the buttons should fit if they are arranged correctly.
Gently re-apply the back rubber to the back of the buttons.

Schritt 9

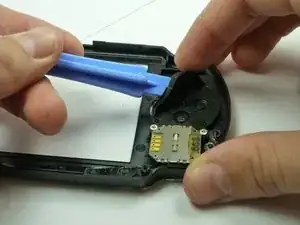

If function buttons (x, square, circle, triangle) need to be replaced, find the corresponding black rubber backing on the inside of the casing.

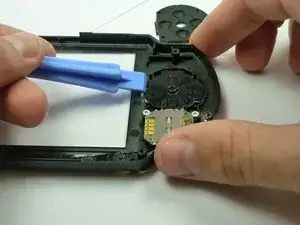

Carefully remove the back rubber to expose the rear side of the buttons as shown. (This can be done using your hands.)

Schritt 10

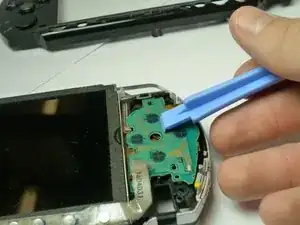

Next, carefully clean the receiving end of the buttons on the motherboard (shown on picture) with a cloth.
If the buttons are clearly damaged, then they need to be replaced.
Add the new ones in the form, with the correct button order. (The correct button order has the Triangle on the top, Square on the right, Circle on the left, and X on the bottom).
Be very careful! The buttons only go in one way. If you have trouble fitting them in, rotate them in their given spots until they fit in easily. Do NOT force them. Forcing the buttons in may cause damage.

Schritt 11

Once buttons are correctly replaced, the back rubbers are fit back onto the buttons, refer back to Replacing the Housing to reattach the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
