Panasonic KX-TGA600M Speaker Replacement

Geschrieben von: Kaleb Barquera
  • Kommentare: 0
Panasonic KX-TGA600M Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will show you how to replace the speaker on your phone.

  1. AZkH4ZxpTOPThkGC
    AZkH4ZxpTOPThkGC
    w4CmBHaKXaWqGjyn

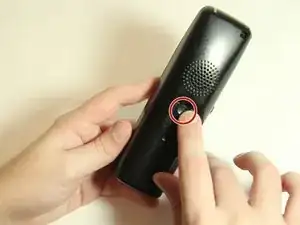

    • On the back of the phone, remove battery cover.

    • Push down on the marked indentation and pull downwards.

  2. hWxmplUVSxVXcZPT

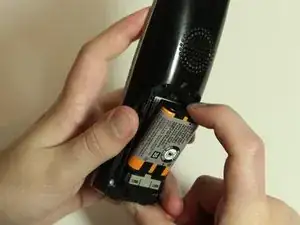

    • Pull out to remove the battery.

  3. YyFnmmYlTHDEMpKe

    • Unscrew the two screws on the bottom left and right.

  4. cqYiUYEsMtUBEZb3
    cqYiUYEsMtUBEZb3
    wtYqtv1TjbJ5rryN

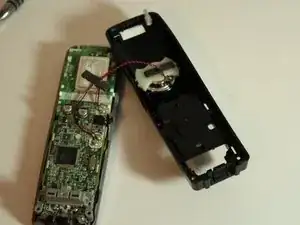

    • Separate the front and back of the phone.

    • Store loose pieces for later replacement.

  5. B52DIfSbvcLVmmYN

    • Remove the speaker housing.

    • During reassembly, solder the wires onto the speaker housing. For information on soldering, please refer to iFixit's soldering technique guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
