Panasonic Lumix DMC-ZS35 Motherboard Replacement

Geschrieben von: Rachel Hughes
  • Kommentare: 1
Panasonic Lumix DMC-ZS35 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

50 Minuten

Einleitung

If your Panasonic Lumix DMC-ZS35 camera’s won’t turn on, or if there’s another component of the camera that isn’t functioning as intended, it may be an issue with the Lumix motherboard. By following this guide, you’ll be able to remove and replace the motherboard to your Lumix.

Before you replace the motherboard, take a look at this Troubleshooting Guide to see if there is a simpler solution to your problem. Before beginning, make sure to turn off your camera completely and remove its battery.

  1. TG5mMZE1funRXclJ
    TG5mMZE1funRXclJ
    LXMWOSklqDjv563T
    DntP1QPdgQqKoHuT

    • Remove the six 4mm screws located on the side and bottom of the camera casing using a Phillips #000 screwdriver.

  2. DUVctFeDPhAqOIql
    DUVctFeDPhAqOIql
    LjNv2FkbHU6mk4FM

    • Use a plastic opening tool to carefully separate the back casing from the main body of the camera. It's advised to run along the entire "seam" of the casing and the camera with the tool to ensure full separation.

    Here’s a helpful tip: Rotate the back screen up 180 degrees. The back cover will come off easily if you do this, not so much if you don’t.

    Mark U -

  3. jmMpi6qUFCgUhYyX

    • Gently pry apart the back casing from the body of the camera. It's recommended to apply as minimal force as is necessary to prevent unintended damage to the camera or the casing.

  4. 12voR3KlHfSSBdm3
    12voR3KlHfSSBdm3
    WPACRVZZfQLG3wJ3

    • Unscrew the four 3mm screws holding the LCD screen hinge in place using a Phillips #000 screwdriver.

  5. WllBal4OD2CdL1sX

    • Gently pull LCD screen ribbon cable from internal port to disconnect the screen and prevent unwanted damage.

    • Lift the freed LCD screen from the base camera to complete the process.

  6. WC6GBrJw32aC1nIL
    WC6GBrJw32aC1nIL
    1fxXnfLM3EZUxYy6
    cvdnFSEPlW1MHjQD

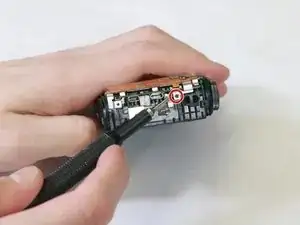

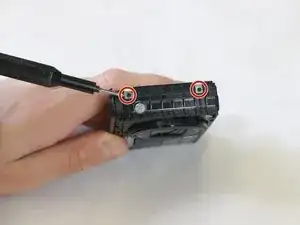

    • Remove the four 2mm Phillips #000 screws on the sides of the exposed internal metal plate within the camera.

  7. f4JgUnrAurWDj6S6
    f4JgUnrAurWDj6S6
    UKabF5qhcP3EIjQi
    CRT6hjFiaUBvQLr1

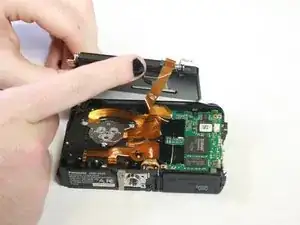

    • Using an iFixit opening tool, gently remove the plating.

    • Carefully remove the ribbon cable connecting the plating with the lens component.

  8. VXwMvLn4S1NsJ3k2
    VXwMvLn4S1NsJ3k2
    fBpXZqueeHOWmSBI

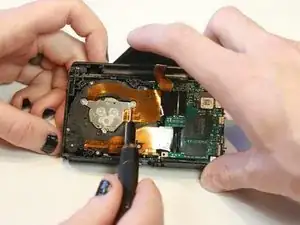

    • Remove the 2mm screws holding the lens in place with a Phillips #000 screwdriver, located along the perimeter of the lens component within its housing.

  9. HGKWrQZFKkgVoGwO
    HGKWrQZFKkgVoGwO
    pXTUiesbyKcBKTSI

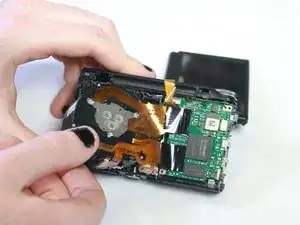

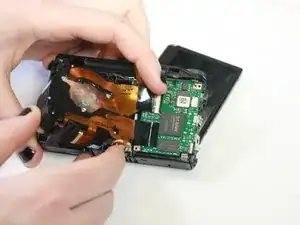

    • Carefully lift the lens component from the housing once it is freed.

    • Ensure that all connectors and cables are disconnected between the lens and other components before separation.

  10. KC5GyUCI3rTXmn4H
    KC5GyUCI3rTXmn4H
    Z3bSuGfgm1ND2iXq
    m5aEQGkWSyENAkuU

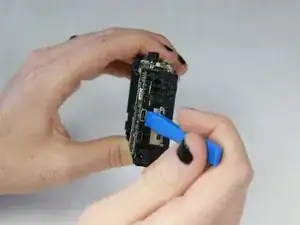

    • Using the opening tool, gently pry off the mother board. Run the opening tool along the outer edges of the motherboard as necessary to loosen it until it is fully removed.

    • Be sure to disconnect all cables before separating the motherboard from the camera, either by disconnecting the ZIF connectors or soldering if necessary.

Abschluss

To reassemble your device, follow these instructions in reverse order.
