Einleitung

If you plan on replacing the buttons in your Parrot Skycontroller 2 then please look at our troubleshooting page to help fix issues. If the buttons will not work or cannot be cleaned, then it is necessary to replace them. To replace the buttons, use this guide.

Before beginning this repair please reference our Battery Replacement Guide to properly disconnect the battery to allow for safe working conditions.

  1. LHvCQYg3bM1ryXYi
    LHvCQYg3bM1ryXYi
    BsQ2n2LTjxhdv2Bo
    eTfc6VHDDCdMcPJ2
    • Flip your controller face down.

  2. O64eNDlvSGW5odmk
    • Remove one 9mm screw using a #4 flathead screwdriver.

  3. EspMWqXoDUpQdVIa
    EspMWqXoDUpQdVIa
    hKV2jSywrKjbBsyL
    KuXIwdJA5LmX2FHN
    • Insert the plastic opening tool into the top of the cover and pry upwards to lift the battery cover.

    • Remove the cover by pulling up and out.

  4. iVA2HqtXQI2MBhyN
    iVA2HqtXQI2MBhyN
    cOfTYFsBXFhcRhZ2
    gfWXclfjlJhi5KH1
    • Pull the connectors out by gently pushing the tabs and pulling up on the connector.

    • Disconnect the battery from the remote by pressing the white tab and pulling the connectors apart.

  5. 3PEOjDo4WNoG3lSj
    3PEOjDo4WNoG3lSj
    TXClQhnXWPRUeOD3
    • Remove the battery from its brackets by pulling up on the ends of the battery.

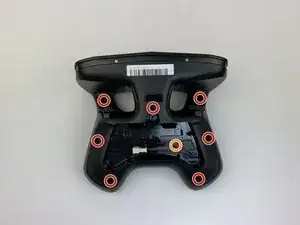

  6. N53PMBPyeVYCBgjJ
    • Remove the seven black 11mm screws using the Torx TR6 screwdriver.

    • There is a hidden screw located behind the sticker in the battery compartment.

    • Pull back the sticker with your finger nail and remove the one black 11mm screw using the Torx TR6 screwdriver.

    Make sure to add end punctuation to all steps.

    Alec Diaz -

  7. sxG5CAqcTrcWZIZa
    sxG5CAqcTrcWZIZa
    lIYFfpkCtUo6VFIH
    QFUYPOKXYtuKRRMp

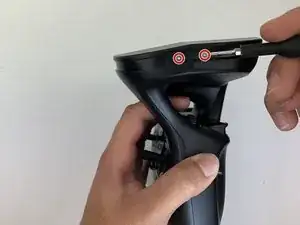

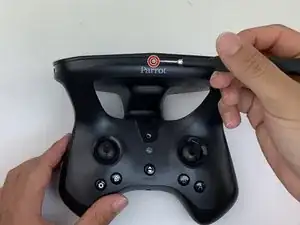

    • Remove the seven silver 4mm screws from around the edge of the top plate using the Torx TR6 Screwdriver.

    • The opposite side to the third picture has a screw located on each side of the USB port.

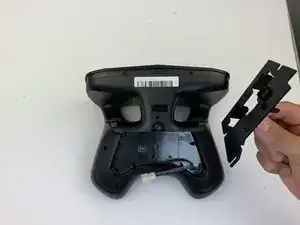

  8. gu4jfsQR4yjDNESe
    • Remove the battery compartment plate by pulling up and out.

    “by pulling up and out”

    Alec Diaz -

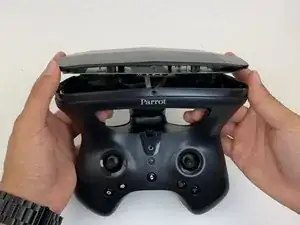

  9. CXotXPCmsHwXw6aM
    • Remove the top plate by pushing on the corners with your hand.

    • Be careful to not pull too hard on the cable.

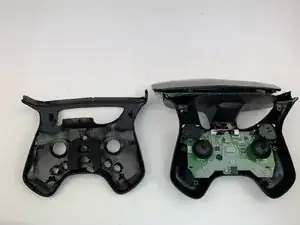

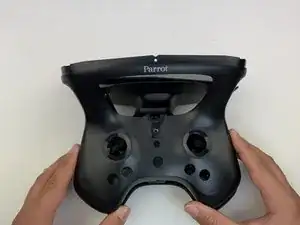

  10. NSAeixHtb64IivIF
    NSAeixHtb64IivIF
    bUvdiPpFbEUUH3AT
    • Remove the face plate by pulling up and out.

    • Buttons will fall out when this plate is removed.

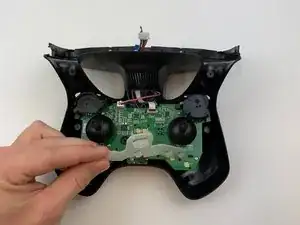

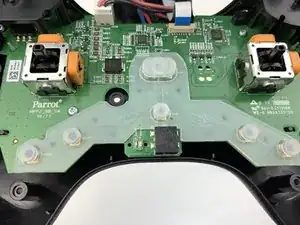

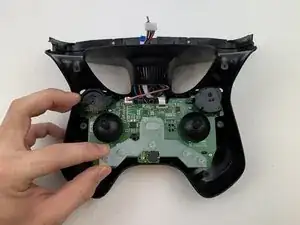

  11. r6ZWBeCrUTYQ6NNb
    r6ZWBeCrUTYQ6NNb
    N4LgYKi6dVJDAvUV
    fgjg1b4TYgtDqyDS
    • Use some force pull up and out on the rubber backing for the buttons.

    Use some force, pinch or other exact verb for how to pull it.

    Alec Diaz -

    See this comment.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
