Parrot Skycontroller 2 USB Port Replacement

Geschrieben von: Aaron Collard
  • Kommentare: 1
Parrot Skycontroller 2 USB Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

In this guide, the USB port will be replaced on the Parrot Skycontroller 2P. If you are having trouble, with your phone connecting to the device, the USB port could be the problem. This guide will require desoldering and soldering the port, so check out our How to Solder and Desolder Connections guide for help on how to do so.

Before beginning, make sure to power off your device completely and disconnect from any external power source.

  1. LHvCQYg3bM1ryXYi
    LHvCQYg3bM1ryXYi
    BsQ2n2LTjxhdv2Bo
    eTfc6VHDDCdMcPJ2

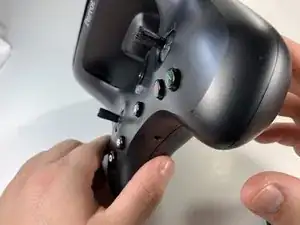

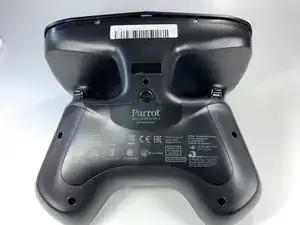

    • Flip your controller face down.

  2. O64eNDlvSGW5odmk

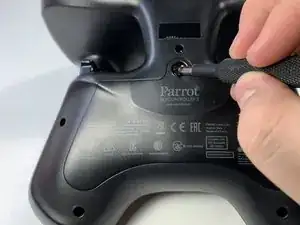

    • Remove one 9mm screw using a #4 flathead screwdriver.

  3. EspMWqXoDUpQdVIa
    EspMWqXoDUpQdVIa
    hKV2jSywrKjbBsyL
    KuXIwdJA5LmX2FHN

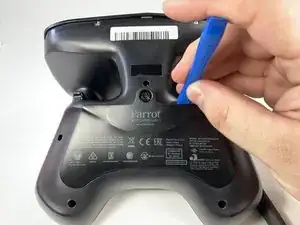

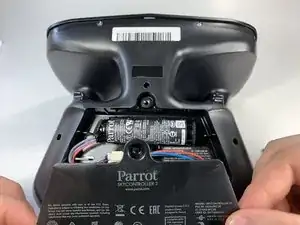

    • Insert the plastic opening tool into the top of the cover and pry upwards to lift the battery cover.

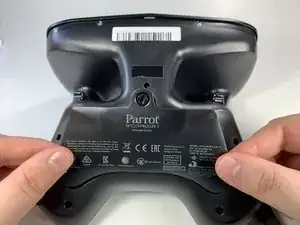

    • Remove the cover by pulling up and out.

  4. iVA2HqtXQI2MBhyN
    iVA2HqtXQI2MBhyN
    cOfTYFsBXFhcRhZ2
    gfWXclfjlJhi5KH1

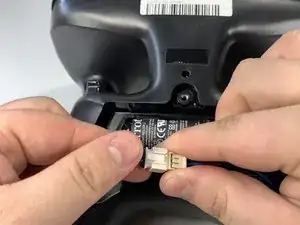

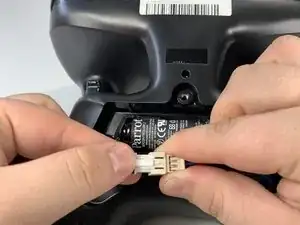

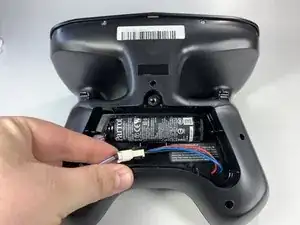

    • Pull the connectors out by gently pushing the tabs and pulling up on the connector.

    • Disconnect the battery from the remote by pressing the white tab and pulling the connectors apart.

  5. 3PEOjDo4WNoG3lSj
    3PEOjDo4WNoG3lSj
    TXClQhnXWPRUeOD3

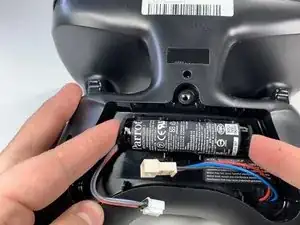

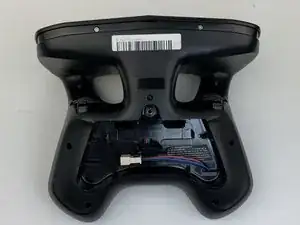

    • Remove the battery from its brackets by pulling up on the ends of the battery.

  6. 44ECs6DVhLyMXFmH

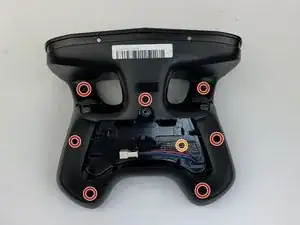

    • Remove the seven black 11mm screws using the Torx TR6 screwdriver.

    • Pull back the sticker with your finger nail and remove one 11mm screws using the Torx TR6 screwdriver.

    • There is a hidden screw located behind the sticker in the battery compartment.

  7. V1oMfHrTcXNrM1KX
    V1oMfHrTcXNrM1KX
    4HRradiUKDQnpORK
    EGMapINaqMIHjJXy

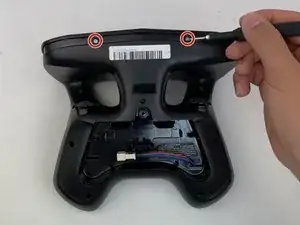

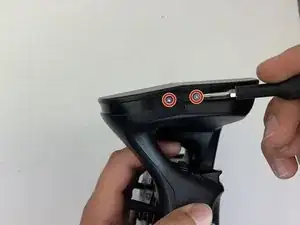

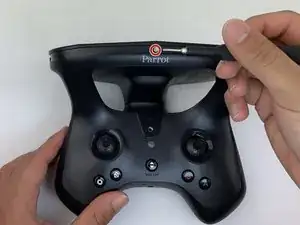

    • Remove the seven silver 4mm screws from around the edge of the top panel using the Torx TR6 screwdriver.

    • The opposite side to the third picture has a screw located on each side of the USB port.

  8. dNAYK1wABHqOxwEN

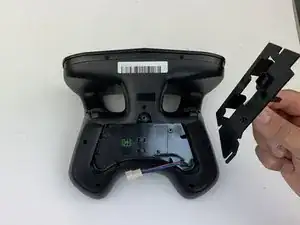

    • Remove the battery compartment plate by pulling up and out.

  9. PpV2sVADfRBwXDdM
    PpV2sVADfRBwXDdM
    oQmt26mbJcHPJ2QI

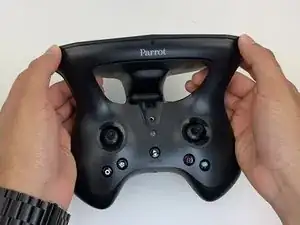

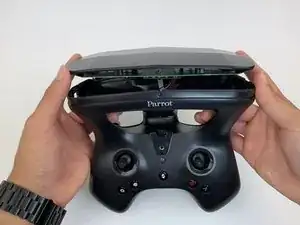

    • Remove the top plate by pushing on the corners with your hand.

    • Be careful to not pull too hard on the cable.

  10. 1ET6pfi6dNjLYScg
    1ET6pfi6dNjLYScg
    MnKJ3ijbLiAd4LJk

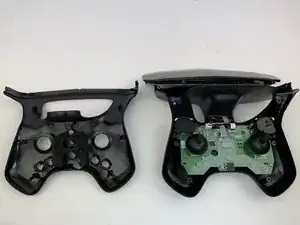

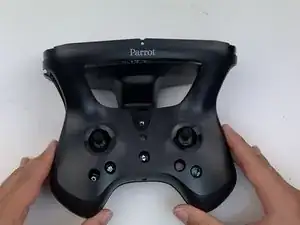

    • Remove the face plate by pulling up and out.

  11. YEH2FdIskijDUtwr
    YEH2FdIskijDUtwr
    KmVGo2skZKkAgqnt
    lXHlRihnVZU3FkvB

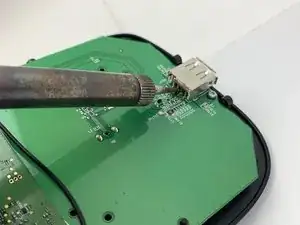

    • Position the device so that the top panel is flat down on the table. You should have access to the USB Port.

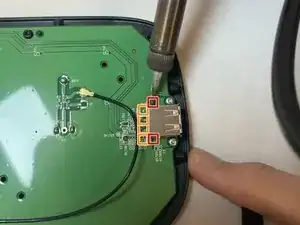

    • Desolder the two connection points in the back of the USB port.

    • Desolder the four wires in the back of the USB port.

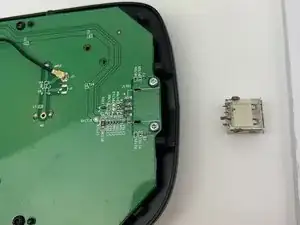

    • Remove the the component from the board.

    • Excessive heat can damage the port, so do not apply the soldering iron to the component for too long.

    Be sure to be consistent about how you spell desolder. What do you mean by “the top panel is flat”? Use markup to show where these components are.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
