Einleitung

  1. lgs2BFmwctNUvEEY
    • Push down on the screw to depress the spring loaded hinge and release the door.

  2. xqMOa4QfTrEMSjLQ
    • Remove six 5.3 mm #00 screws.

    • Remove one 3.4 mm #00 screw.

    • The short screw has a machine thread and screws into the plate underneath. The rest screw into the plastic body.

  3. JBNm1gvrrVIsOnvC
    • Remove three 5.3 mm #00 screws (the bottom-most screw is not always present).

    • Remove one 7.3 mm #00 screw.

    • Remove the remote trigger cover.

  4. kaurbKcGc3sICMvp
    kaurbKcGc3sICMvp
    qAMWaUYPEdKSqKBQ
    • Remove one 3.4 mm #00 screw.

    • Remove two 5.3 mm #00 screw.

    • Gently lift up on the flash housing to help remove the cover if necessary.

  5. XTT2gETZspMWvdLW
    • Remove two 3.9 mm #00 screws.

  6. 3my2vQuEkTFMiy1K
    • Slide the eye cup up and off to access the screws underneath.

  7. e53TOwaDpAgeyAD6
    e53TOwaDpAgeyAD6
    OJJ5WDhEjPdLrFAa
    XYapgMENQtcSAZZH
    • Remove two 5.3 mm #00 screws by the eyepiece.

    • Remove one 6.8 mm #00 screw in the battery compartment.

    • Remove one 7.0 mm #00 screw near the take up spool.

  8. htpX4AygbXbvTyuw
    • Lift the cover so it is just free of the body. It is still attached by several wires.

  9. kiaJXSFcZwMEYeEY
    kiaJXSFcZwMEYeEY
    CMHhQiwrN4ACUN5h
    • De-solder the green, blue, brown and black wires from the flash PCB.

    • De-solder the black wire.

    • Pull out slack in the black wire so you can comfortably work on the underside of the top cover.

  10. FqB1TmcSjlrUDnSr
    • Set the shutter speed dial to 'A'

  11. MNe1Ih1YnSwMhQVT
    • Remove one 4.3 mm #00 screw.

    • Be careful not to damage the feeler contacts for the metering switch throughout the repair. There are delicate and easily bent.

  12. bfmUXHNd2dq3JWer
    bfmUXHNd2dq3JWer
    fMXMokFimoGpxTaF

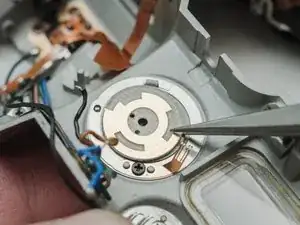

    • Remove the contact PCB.

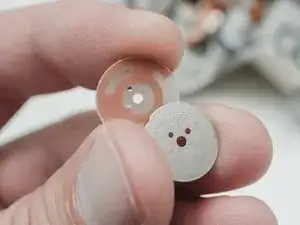

    • There is a metal plate underneath that may stick to the PCB.

  13. bJtQnuQk5sKWVHo3
    • Slide the exposure compensation dial out of the top cover.

    • If the dial was not set to 'A' in Step 10, the knob will not slide out. Turning the knob at this stage could damage the detent spring.

  14. MMWeHOLhWCbFrsp5
    MMWeHOLhWCbFrsp5
    2DPGG3cLfVAtkJhs

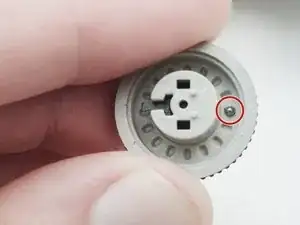

    • Remove the ball bearing from the inside of the dial.

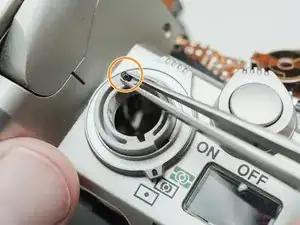

    • Remove the detent spring from the top cover.

  15. OhFhyUjLsFyCZbKr
    OhFhyUjLsFyCZbKr
    crkI5MHCjKAhYhXO
    • Use tweezers to release the snaps on the lock button.

    • Remove the lock button from the top of the dial.

  16. mOhWB1ApxgJIdPAL
    mOhWB1ApxgJIdPAL
    4BoFPRVmltZtxhph

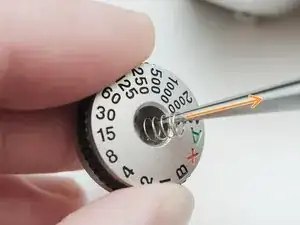

    • Remove lock actuator.

    • Remove lock spring.

  17. I41jcRlUHqiDNbkP
    • Use tape to hold components in place when installing the dial.

Abschluss

To reassemble your device, follow these instructions in reverse order.
