Philips Norelco 5801XL Battery Replacement

Geschrieben von: Ben Gibbs
  • Kommentare: 1
Philips Norelco 5801XL Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 25 Minuten

Einleitung

Use this guide to replace the rechargeable battery in the Philips Norelco 5801XL. The steps should be followed exactly as listed in the guide. Some soldering skills are required. Be sure to handle with care. For help with soldering: click here.

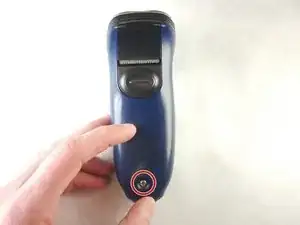

  1. 62PtE1c1WiUGQ3xw
    62PtE1c1WiUGQ3xw
    FYE2knWFATtcskLO

    • Using a T8 torx screwdriver, remove both 2mm T8 screws.

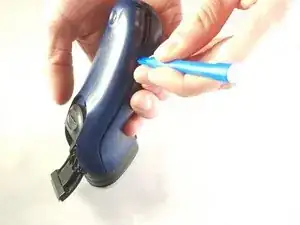

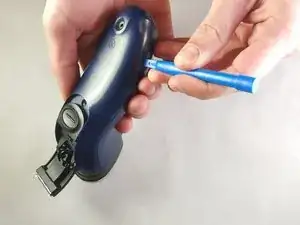

  2. 6kuIjHKieajibG2v
    6kuIjHKieajibG2v
    TP1m6Co6ffdSxxRj

    • Using a plastic opening tool, separate the front housing from the back housing.

    • Carefully pull the housing apart.

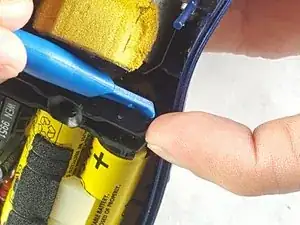

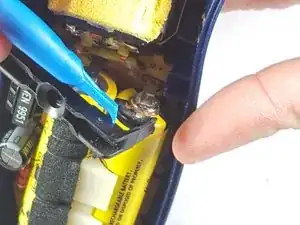

  3. 2MoYANYbxg5dL6Ui
    2MoYANYbxg5dL6Ui
    4GVnjDjM6X44WIB3
    bGNUAJ6x5wEERn2t

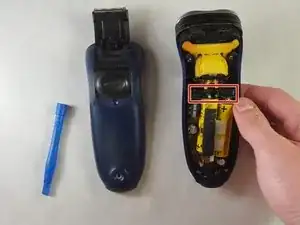

    • Remove the plastic bracket using a plastic opening tool.

    • Pry from the inside of the bracket towards the outside of the housing to remove it.

  4. yxbOei4XLahbFJwv

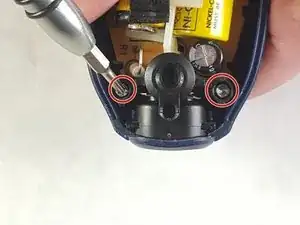

    • Remove the two T8 2mm Philips screws holding onto the bracket over the charge port.

    • Remove the bracket. It will pull straight out.

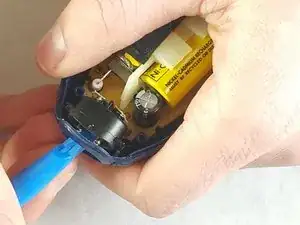

  5. hvtrf3GhRVKYfcHy

    • Push in the charge port using the plastic opening tool.

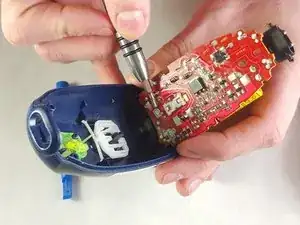

  6. bpNGcbirWyeuqYLP

    • Lift the circuit board upwards and fold it towards the head of the razor.

    • Do not break the contacts connecting the board to the motor.

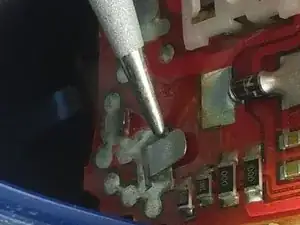

  7. CSXMhKxPswIoWrEa
    CSXMhKxPswIoWrEa
    xRQJNOIt11GiVKic
    MpJSNNwVNSW2MXgx

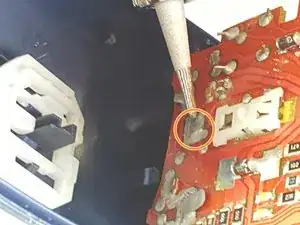

    • Desolder the contacts where the battery connects to the circuit board.

    • Straighten the battery contacts and pull them through the opposite side of the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ben Gibbs

Mitglied seit: 16/02/16

361 Reputation

Ein Kommentar

The replacement battery I bought had contact strips that were too long and too wide for the slots on the circuit board, so I had to trim off about half the length and 1.5 mm of the width on each strip, but after that alteration, it worked fine.
