Photive Hydra Bluetooth Connector Replacement

Geschrieben von: Matthew Knight
  • Kommentare: 1
Photive Hydra Bluetooth Connector Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

If your Photive Hydra is having trouble connecting to another Bluetooth device, there may be an issue with the Bluetooth connector. If the steps listed seem too difficult, you can still use your device as a speaker using the AUX port on your speaker.

  1. EpBRGE3WEFKKv1Tb

    • Unscrew all twelve Hex Head 1.5 (Length-3/8", Head- 1/8") screws using a 1.5mm hex screwdriver.

  2. RI66eTPUKvMiJBYV
    RI66eTPUKvMiJBYV
    fqv6kbbKBDSbYFIK

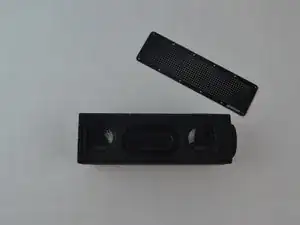

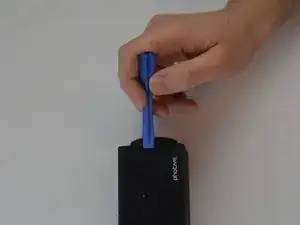

    • Use a plastic opening tool to pry off the face plate.

  3. dNSi1HgBsALTKSog

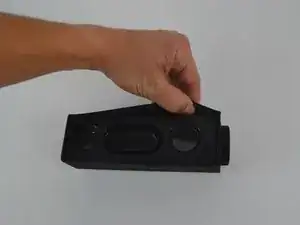

    • Remove the rubber casing by using your fingers to pull off. Be sure not tear or rip rubber casing.

  4. lUVHtmN4HPKFLIRo

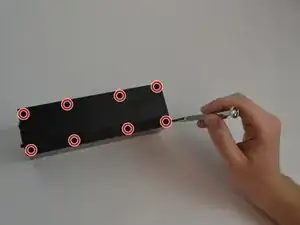

    • Flip the device upside down and remove all eight Phillips (Length-3/8", Head-1/8") Screws using a standard #1 Phillips screwdriver.

  5. okU21Ars2YjIjBDp
    okU21Ars2YjIjBDp
    nydAdsfsyHnHHyxD

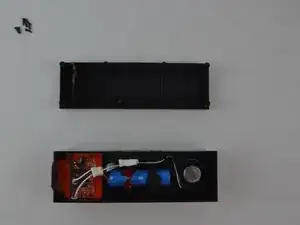

    • Use plastic opening tool to pry off back plate.

    • Move the plastic opening tool along the the device to further pry open the device.

    • Be careful when taking this plate off. You may accidentally damage the water proof seal.

  6. fSKRCYQXZRb2M6Px
    fSKRCYQXZRb2M6Px
    uCY1kPgJFtEb2uRT

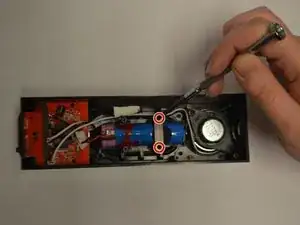

    • Identify the two Phillips (Length-5/16", Head-1/8") screws holding the battery in place and remove them using a #1 screwdriver.

  7. uQaZhSnX1ROUFRqb

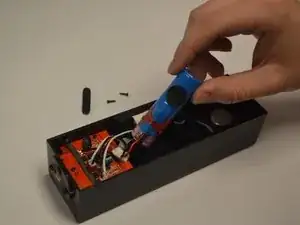

    • Remove the ICR18650-26M battery from its position by pulling upwards and out of the casing.

  8. diKOZu16qVSTq4qC
    diKOZu16qVSTq4qC
    T6CBYmUx6nw3u5TL

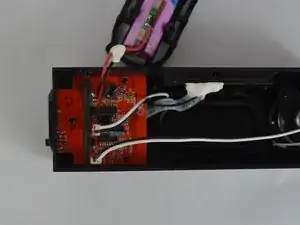

    • Identify the motherboard and the three Philips (Length-1/8,Head-1/8) screws and remove them using a #1 Phillips screwdriver.

  9. tPCjVO2EIBeXnYCG
    tPCjVO2EIBeXnYCG
    Mu4wVR3QGHPTWW5X

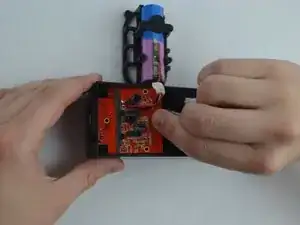

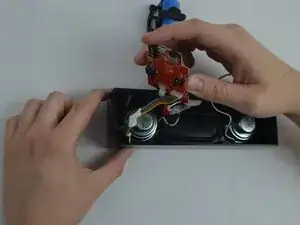

    • Pull the motherboard up and out to dislodge it.

    • Do not fully remove your motherboard to prevent any unwanted severing of connections.

  10. CxE2kspRMB4HHVFn

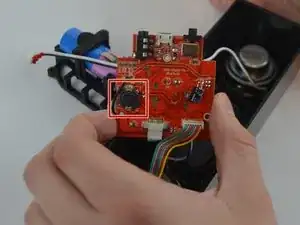

    • Identify the Bluetooth connector device.

  11. RdJNCAnRSKA6dhEO

    • The two solder points shown are to be removed by use of a soldering gun. Remove and replace the component with a functioning connector device. Refer to the link below for soldering techniques. Wie man Lötverbindungen herstellt und entlötet

Abschluss

To reassemble your device, follow these instructions in reverse order.
