Pioneer Elite Smart Speaker F4 Button Panel Circuit Board Replacement

Geschrieben von: Caroline Padilla
  • Kommentare: 0
Pioneer Elite Smart Speaker F4 Button Panel Circuit Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will walk you through replacing the button panel circuit board in your device. You may need to know how to solder and desolder connections before proceeding with this guide.

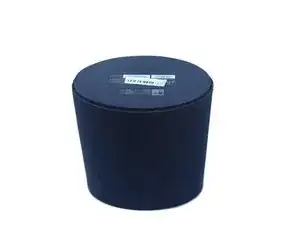

  1. TcAfAQRFPLSX5Rh4

    • Flip the speaker upside down with the back panel of plugs pointed away from you.

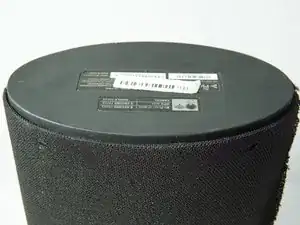

  2. kdLVIpAHhU4NTDVd
    kdLVIpAHhU4NTDVd
    2EBYJX2EWUVhUiMX

    • Use the metal spudger to pry off the rubber bottom cover. It will be glued onto the bottom of the speaker.

    • Work the rubber cover off by slowly going all the way around with the metal spudger, applying as much force as needed.

    • Since the cover is glued, a heat gun at low temperature or a hair dryer may be useful to speed up the process. However it is not required in this step.

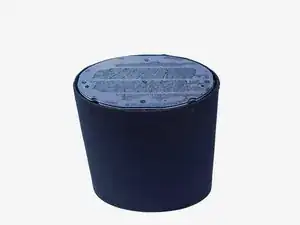

  3. wWhheFGXZX2LQGSy

    • Scrape most of the glue away to reveal the five flathead screws - four around the outside, and one in the middle.

  4. FyNhGP1doYYNNHkv

    • Remove the five 6 mm screws with a Phillips #2 screwdriver.

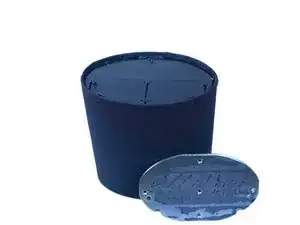

  5. R1PIvCaXKAYRe1Dd

    • Lift off the metal plate. It will be surprisingly heavy and it is approximately 1cm thick.

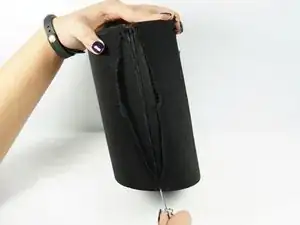

  6. HiLQoejtuB23ZGEf
    HiLQoejtuB23ZGEf

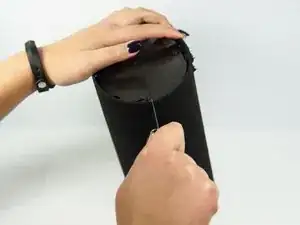

    ThUoI4mbgOyTh5GU
    UtIXYDLNwyK2AOGd

    • This step requires permanently damaging the casing of your device.

    • Turn the speaker counter-clockwise 90 degrees.

    • Use a knife to cut along the left seam all the way down the length of the device.

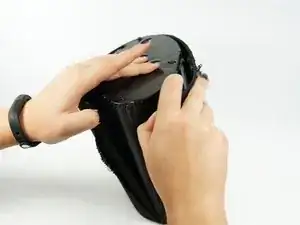

  7. d1wLomWif2gOxsBD
    d1wLomWif2gOxsBD

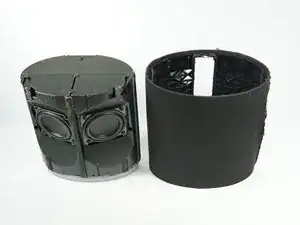

    Z5K4hTdyBimLUxaN

    • The casing should be easily removed by prying and lifting it off.

    • If the casing gets caught on the back panel of plugs, use the metal spudger to lift the casing away from the panel, working all the way around. Pay special attention to the bottom, where it may be stuck with glue.

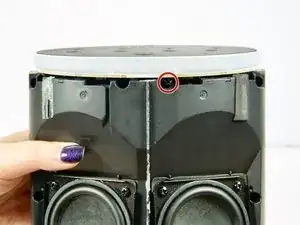

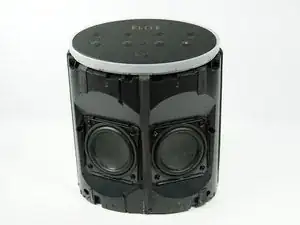

  8. txJkMxqvGatYRMpx
    txJkMxqvGatYRMpx
    JQJYLoTEKO5ielRC

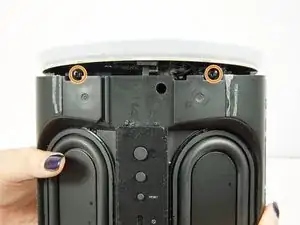

    WmALIaMositFhxDa

    • Flip device 180 degrees so the light ring/button panel is on top with the 'Elite' facing you.

    • Remove one 6 mm screw with a Phillips #2 screwdriver.

    • Spin the device so the opposite side is facing you.

    • Remove the two 6 mm screws with a Phillips #2 screwdriver.

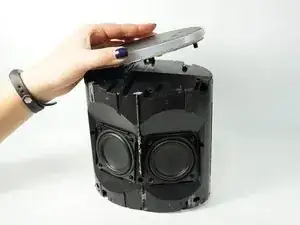

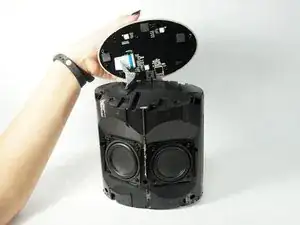

  9. bPo4iMEIHH5Nbkm4
    bPo4iMEIHH5Nbkm4
    fSIvTcFWBHyoQYPX

    • Carefully remove the top panel, light ring, button panel, and the corresponding board.

    • Do not pull too hard, as there is a strip of wiring connected to the part below that could tear if pulled too hard or too far away.

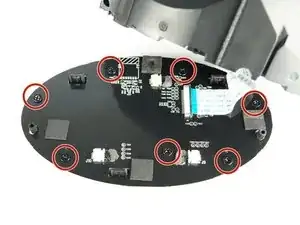

  10. 25BWThUIG1qHIrhk
    25BWThUIG1qHIrhk

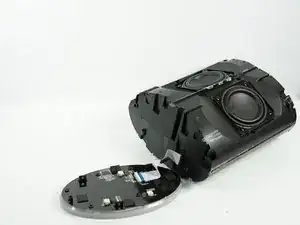

    tRyr1DGeiP3VmgVp

    • Lay the speaker down flat to make it easier to work on.

    • Remove the seven 4 mm screws with a Phillips #2 screwdriver.

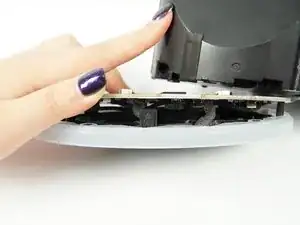

  11. TawOFHAKWjxOxFgW

    • Lift up the panel and remove it from the device.

    • Desoldering may be required to separate the circuit board completely. Please use our How to Solder and Desolder Connections Guide to properly and safely conduct this procedure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
