Plantronics Voyager Legend Battery Replacement

Geschrieben von: Lewis Certain
  • Kommentare: 15
Plantronics Voyager Legend Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

The Plantronics Voyager Legend is a Bluetooth headset, with user-friendly features such as extended battery life and an easy-to-use magnetic charging port. Because of these features, power problems can be handled accordingly, to ensure a longer life for the device. This guide will detail how to carefully disassemble the main unit, remove the internal power circuitry, remove and replace the battery, and reassemble the unit for the prolonged life desired.

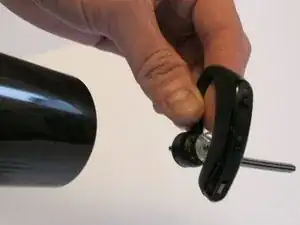

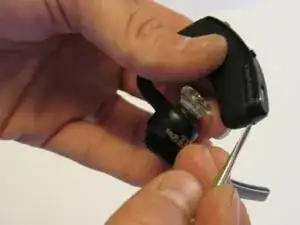

  1. OWTUexJp1XTWKuGw
    OWTUexJp1XTWKuGw
    lnkVmmHSiITER2QN
    drKhnDfethG2hn2E

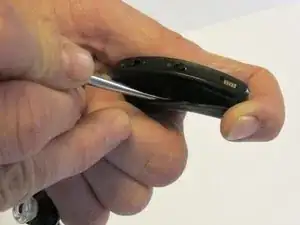

    • Remove the soft, protective, outer covering.

    • Use a heat gun (or a hair-dryer) to heat the main unit of the Plantronics Voyager Legend. This will loosen the adhesive that bonds the covering to the housing.

    • Use the pointed end of a small, metal spudger to begin separating the covering from the housing.

    • Use the rounded, dull end of the spudger to gently detach the rest of the covering.

    • It may be necessary to reheat the unit to keep the adhesive soft enough to remove the covering without damaging it.

  2. 6jBOKmxFGjWSSmse
    6jBOKmxFGjWSSmse
    ZsMgMelJlGOfYqLk

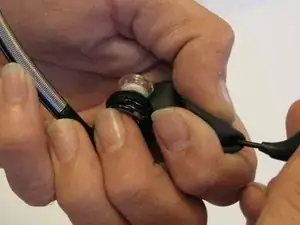

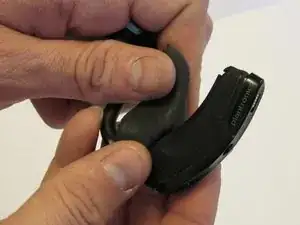

    • Reveal the plastic housing.

    • Fold the soft, protective covering inside-out.

    • Pull the housing completely out of the covering, revealing the main wire that connects the entire unit.

    • This leeway will be required for the removal of the circuitry, which will be detailed later.

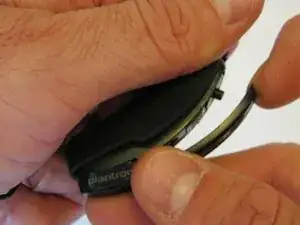

  3. MdFJUi5B3PiUuVrk
    MdFJUi5B3PiUuVrk
    Fo4icE2Zi3Xg1hqH
    3hWT1ddUO4fPMvD4

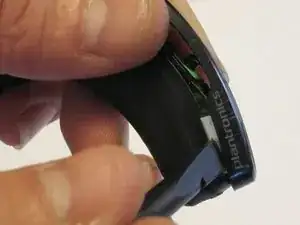

    • Remove the protective plate on the bottom of the housing.

    • The plate is held in place by a series of snaps and magnets.

    • Use the flat end of a spudger to begin dislodging the snaps, starting at the opposite end of the charging port.

    • Work evenly around the circumference of the housing, until all snaps are free.

    • Lift the plate off of the housing.

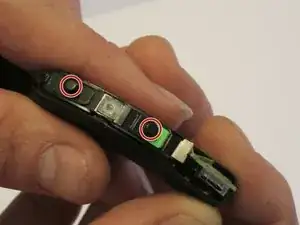

  4. 5NcdhxObhL2Hj2sO
    5NcdhxObhL2Hj2sO
    cNEotiHX1QLrcmOn
    oU2eOD2oKBwdKUKW

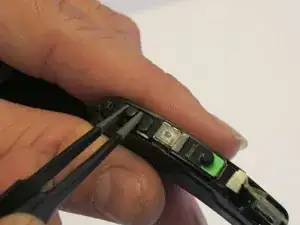

    • Remove the power and volume buttons.

    • Use precision tweezers to remove the volume button by lifting it out of place.

    • Use precision tweezers to remove the power button, noting its orientation, by lifting it out of place.

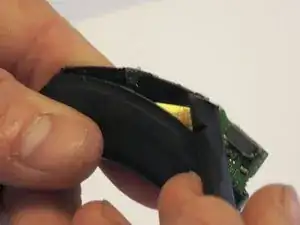

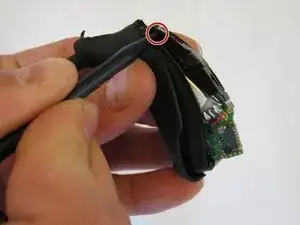

  5. YuDUuUTf6kmVAWLI
    YuDUuUTf6kmVAWLI
    LnRbqYkOPrBfkKM5
    lbvq1nZeGpWqVwRE

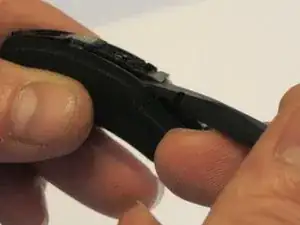

    • Begin removal of the battery circuitry.

    • Use the flat end of a spudger to begin lifting against the metal tab of the top edge of the circuit board unit.

    • When lifted enough, use the pointed end of the spudger to lift the remaining distance. This is accomplished by inserting the pointed end of the spudger into the hole in the circuit board unit located at the opposite end of the charging port.

    Anyone know how to open the Plantronics Voyager Legend Desk Top Charger.

    The internal battery has gone faulty.

    Thanks for your time.

    Ivor Mac -

  6. H4M36TAkEUmkQvYo

    • Remove the circuit board, revealing the battery unit.

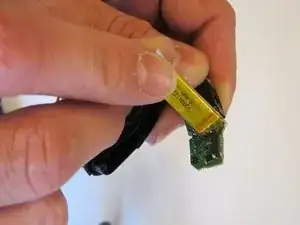

  7. W1QQsxUg3UiSagjA
    W1QQsxUg3UiSagjA
    DMuaeemuyRImavLA
    ygb6kUCCokiZxy6A

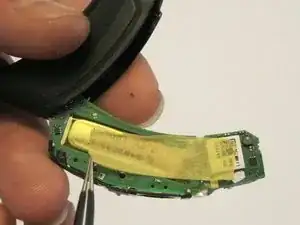

    • Free the battery from its circuit board positioning.

    • Locate the small piece of tape on the underside of the battery. Use a pair of precision tweezers to remove this tape.

    • Lift the battery out of position.

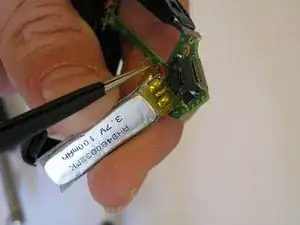

  8. YlxOTXyYm6KGc2sM
    YlxOTXyYm6KGc2sM
    YrPPATEOYD1d2ffC
    mrlY4ViuIxK4dZh6

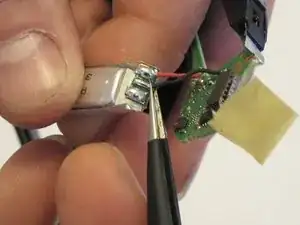

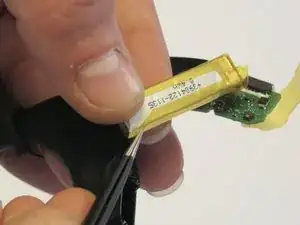

    • Access the battery leads.

    • Use precision tweezers to remove the transparent, amber tape that encloses the battery. This will reveal a smaller piece of transparent, amber tape that encloses the leads to the battery.

    • Use precision tweezers to remove the smaller piece of tape, revealing the leads.

  9. eMGKIMUWXQTQDCnC
    eMGKIMUWXQTQDCnC
    DC4oxXnLwtAElLLH
    OdBst5oOk6QJYoqr

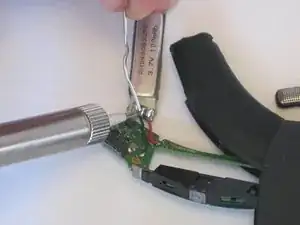

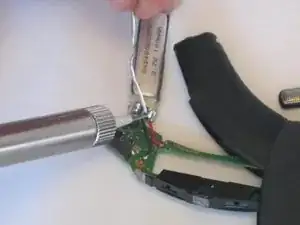

    • Remove the old battery and replace it with a new one.

    • Disconnect the leads using a pair of wire cutters. Scissors will work if there are no wire cutters available.

    • Solder the black, ground lead into place on the new battery.

    • Solder the red, positive lead into place on the new battery.

    • Refer to the iFixit soldering guide for assistance with soldering.

    Thank you for the guide. I consulted it and replaced my battery. It works perfectly. The replacement battery from Amazon was about $15 and that is a small fraction of replacing the headset. One revision I suggest is that removing the rubberized covering was not required for me. The seam that joins the two parts of the shell lines up with the edge of that rubberized cover. I used a razer blade to carefully separate the halves without disturbing the rubber skin. The battery came with new wires, so I left them attached and soldered the ends on the PCB rather than on the battery. As good as new, only better.

    Mr. Fox -

Abschluss

To reassemble your device, follow these instructions in reverse order, using an adhesive to reattach the soft, protective covering to the plastic housing.

Tinte & Feder

Lewis Certain

Mitglied seit: 10/09/15

2223 Reputation

13 Kommentare

nice guide...

where could you order a replacement battery? ebay and others do not sell the exact replacements... or do they?

badrutsima -

Excellent Guide!

Battery appears to be available (Via Google Search): AHB480832PK 3.7v 100ma

Will Walker -

How to put it back again ? and is it gonna be how it used to be ? with the rubber being torn apart ??

aristotlehasan -

1. I dont really think you need to remove the rubber. It gets stretched and torn and doesn't go back the same even with adhesive. I think the black plastic "cap" can be removed without fully removing the rubber. Other than that the repair worked ok, but it doesn't look/feel the same so I ended up buying another one anyway and now this is my spare. It's a fairly delicate/complex operation and probably not worth the effort.

Mark -

I agree. I left the rubber intact on mine for that very reason, only slightly unsticking the edge with the guitar pick, which enabled me to pop the hard plastic panel/cap off reasonably easily. I did manage to break the clip at the top edge (above the power button) but a small drop of superglue was all that was needed to fix it. It definitely feels the same as before, so I’m glad I spent the AUD$30 for the battery instead of another AUD$130 for a new headset. It’s a shame to waste otherwise perfectly working hardware.

Also, for anyone who is currently running on a firmware version older than v110, if your PLT Hub software alerts you to upgrade to v110 (I was running v109), it is possible you will have issues with unstable call audio (media audio plays fine). If you experience this problem, you can check my solution (involving a downgrade and a reset) here: https://community.polycom.com/t5/Bluetoo...

Otherwise, just stay on v109!

tony -

where can you get a replacement cover?

stevef52 -

There seems to be no way to get the cover to snap back on once I’m done. I’ve been struggling with that and it is the biggest hindrance to getting it back into operation. Can you consider detailing the reassembly sometime?

Jeff Weaver -

There is absolutely no need to remove the rubber! Plus, you have to start ripping the plate from the charging connector side, otherwise the chance to break the single latch (on the VOL+/- side) is very large.

Marco D. Rassau -

What is a good adhesive to use? My problem is only that rubber has separated.

alan erickson -

Step 3 was difficult as even moving around the entire perimeter carefully did not keep the clips open. But mine completely failed at step 5. Trying to lift the metal tab just bent the tab. Made sure nothing was attached all the way around, but could not remove the circuit board as indicated. Finally gave up and pried it out to see how it was put together even though it damaged it.

Rick Jaffe -

You are kidding me that this is your solution!! Horrible !

LifeIsLove -
