The microphone assembly is easily distinguished by its "boom-like" shape. The actual assembly is comprised of a voice-tube, and a circuit board system. The microphone replacement guide will detail how to carefully disassemble the microphone unit, and remove and replace the different components that comprise it.
-
-

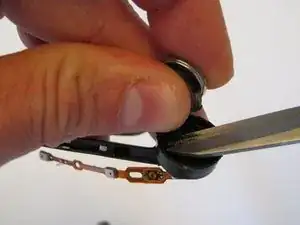

Loosen snaps that hold the assembly together.
-

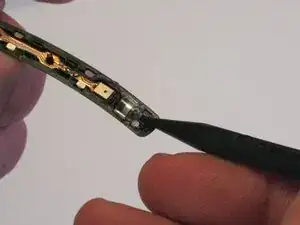

Use the pointed end of a small, metal spudger to begin separation of the snaps, at the end of the unit.
-

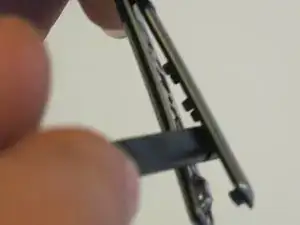

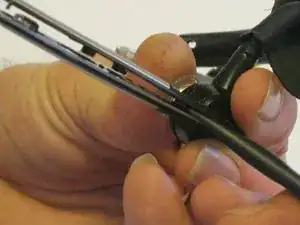

After initial separation, use the flat end of a plastic spudger to continue loosening the snaps, by following along the circumference of the microphone unit.
-
-
-

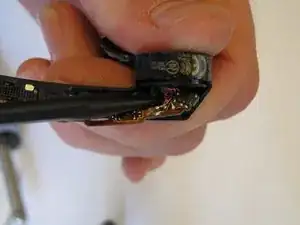

Reveal the metal, protective plate by completely removing the top piece of the plastic housing.
-

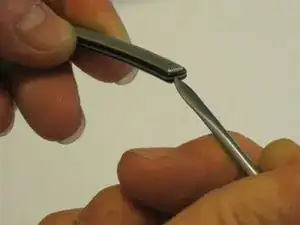

Use precision tweezers to remove the metal protective plate. This is done by lifting the plate out of place.
-
-
-
Locate the volume button at the rear of the microphone assembly, near the earpiece assembly.
-

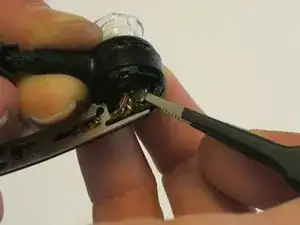

Use precision tweezers to lift the volume button out of place and remove it.
-
-
-
Remove the voice-tube.
-

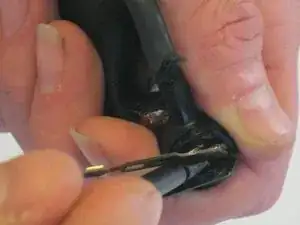

Insert the pointed end of a plastic ppudger to lift the voice-tube out of position.
-
Disconnect the leads that attach to the voice-tube.
-
-
-
Remove the circuit board.
-

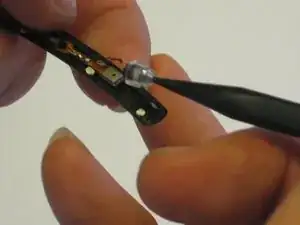

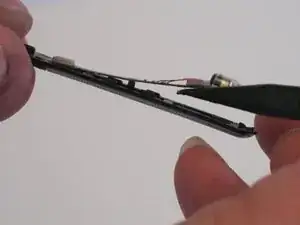

Use the pointed-end of a plastic spudger to begin lifting the circuit board out of place. Begin at the end nearest the voice-tube location.
-
Use the flat-end of a plastic spudger to continue lifting the circuit board out of position.
-
-
-
Access the leads that connect the circuitry.
-

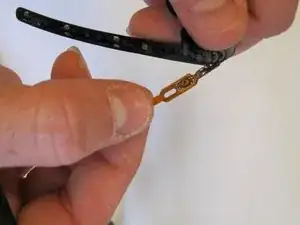

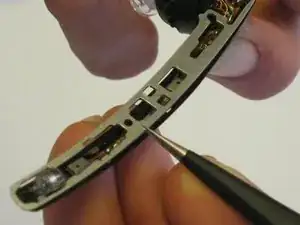

Use the spudger to make sure the circuit board is completely free.
-
Expose the leads so they can be disconnected.
-
-
-
Install a new circuit board.
-

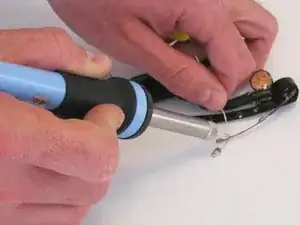

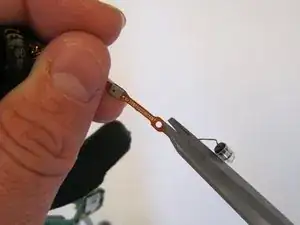

Disconnect the leads using a pair of wire cutters. Scissors will work if no wire cutters are available.
-

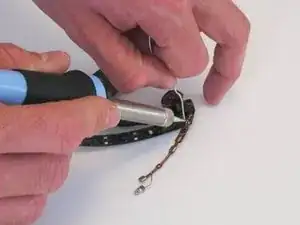

Solder the leads into the correct location on the new circuit board.
-
To reassemble your device, follow these instructions in reverse order.
