PlayStation VR2 Chip ID

Geschrieben von: Shahram Mokhtari
Veröffentlicht: 23/03/23
  • Kommentare: 1

PlayStation VR2 Chip ID

Veröffentlicht: 23/03/23

Teardown

Einleitung

Here's a chip identification summary for the PlayStation VR2 headset and controller. Check out our PlayStation VR2 teardown for more info.

Special thanks to community member CChin for his contribution!

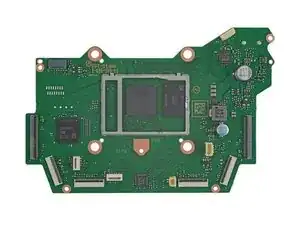

  1. TYYeFC61YRrQUpKA
    TYYeFC61YRrQUpKA
    GRElQaZmGGaYo1ZM

    • Sony CXD90067GQ applications processor

    • Samsung K4U6E3S4AA-MGCL 2 GB LPDDR4X SDRAM memory

    • Samsung KLM4G1FETE-B041 4 GB NAND flash memory w/ controller

    • Cirrus Logic WM1801B audio CODEC

    • NXP Semiconductor PCA9957 24-ch. LED driver

    • Texas Instruments TPS2553D adjustable USB power switch

    • Nisshinbo Micro Devices R1161N121D 300 mA / 1.2 V LDO regulator

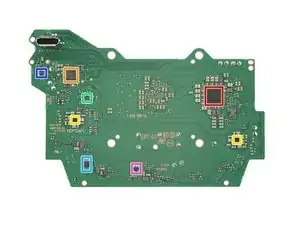

  2. 5O2rnUPL3QgIgRjA
    5O2rnUPL3QgIgRjA
    Ir4THNICLlNRdN3s

    • Sony CXD90068GF power management

    • Realtek RTS5443H USB type-C port controller

    • Samsung S2DOS15 display power management

    • Mitsumi MM3736BRLE 20 A synchronous buck DC-DC converter

    • Richtek RT6052GF current shunt monitor

    • Texas Instruments TPS2553D adjustable USB power switch

    • Nisshinbo Micro Devices R1161N281D 300 mA / 2.8 V LDO regulator

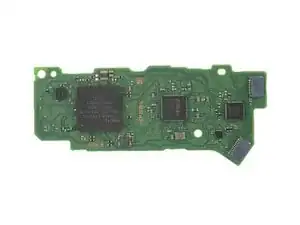

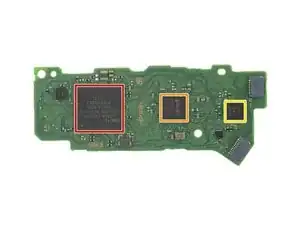

  3. pEbOLQmxKRvSBXT5
    pEbOLQmxKRvSBXT5
    WGVCvBL6HO4JKWhf

    • Sony CXD90064GG Bluetooth SoC

    • Renesas DA9087 power management

    • NXP Semiconductor PCA9957 24-ch. LED driver

  4. JNGFWMEaNdDrMUZq

    • TDK-InvenSense ICM-42682 6-axis MEMS accelerometer & gyroscope

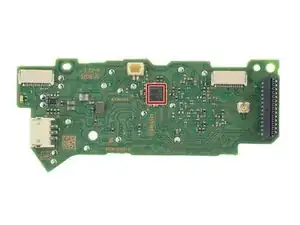

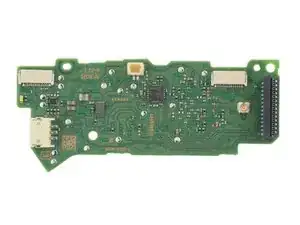

  5. OjYndrDdBqbuQI1i
    OjYndrDdBqbuQI1i
    AuybYYcI55K2mVIu

    • Nuvoton NAU8225YG 3.0 W class-D audio amplifier

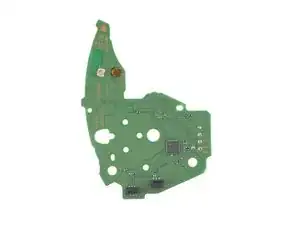

  6. 4s5KZsEpmSBBoBVL
    4s5KZsEpmSBBoBVL
    UIgbNaDISDvYweQL

    • Cirque 6G06A3 touch controller
