Power and 3.5 mm Audio Adapter Jacks Replacement

Geschrieben von: Jerrell
  • Kommentare: 0
Power and 3.5 mm Audio Adapter Jacks Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace the power and 3.5 mm audio adapter jacks on an iHome iP37.

  1. K1WOtI2bC2KBhMLl
    K1WOtI2bC2KBhMLl
    6gYsaOrUFqNXOWXw
    DG3HfVJWfvuKQZJM

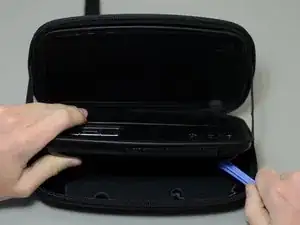

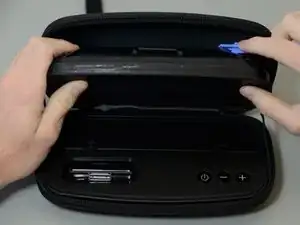

    • Pry the exterior housing off the iHome iP37. You may need extra leverage to do this.

    • Note: This step is the most difficult due to the way it is attached. The glue holding the exterior housing to the internals does not break easily. You may want to use iFixit's iOpener to soften the glue.

    • Note: The process is the same for both the upper half and the lower half. To identify the halves, look for these details: the upper half has a metal grid, and the lower half has buttons. If you are replacing any other components, pry off the lower half.

  2. NkClHTpXfwSqZSrU
    NkClHTpXfwSqZSrU
    1UsqZUaC1KOTGbnj
    tSlSeJuA1ZuYDjUP

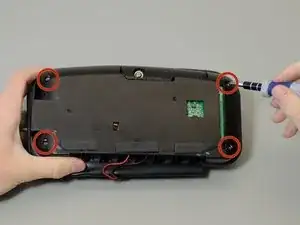

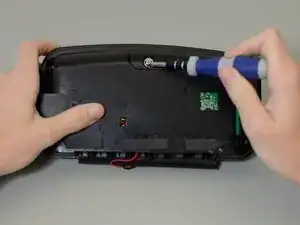

    • Remove these four 9 mm screws from the plastic casing; you will need a Phillips #2 driver to do this.

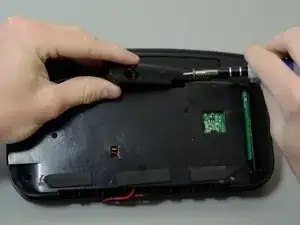

    • Remove the flanged 9 mm screw from the counterweight; you will need a Phillips #2 driver to do this.

    • Lift and remove the counterweight.

  3. W5cjtMALXAv6cPxG
    W5cjtMALXAv6cPxG
    tQkpLeEBAR2wAder
    RhMsJ2Y4KExZevir

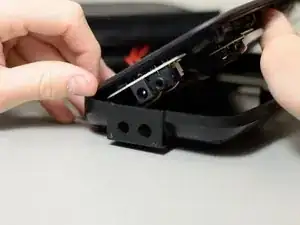

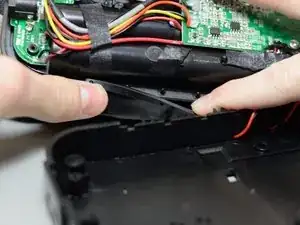

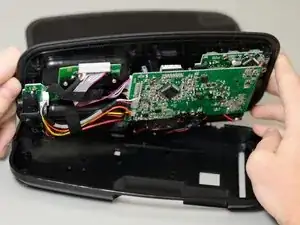

    • Lift and remove the plastic casing.

    • Note: It is best to lift the casing starting from the side without the protruding 3.5mm audio port and power port.

    • Reminder: During this process, a rubber cover will likely be dislodged. Make sure to re-seat this cover on the small pegs before putting the plastic casing back on.

  4. T6EC6opkYwN1QF2S

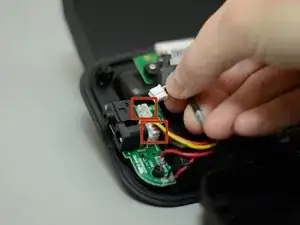

    • Firmly and cautiously unplug the two white 3-pin connectors from the printed circuit board.

  5. 2NsluhxxOFFHOJZU
    2NsluhxxOFFHOJZU
    bKNLJWaaKVYDfuhN
    npFiTMHLGEvjWRFc

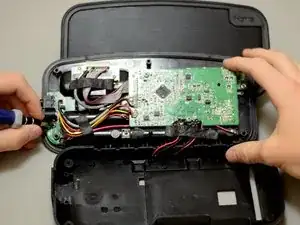

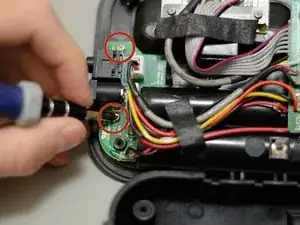

    • Remove the two 5mm screws holding the power and 3.5mm jack PCB onto the rest of the device; you will need a Phillips #1 driver to do this.

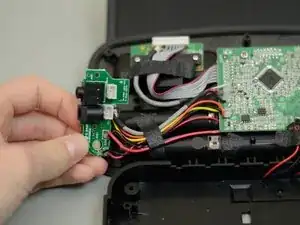

    • Lift the PCB away from the rest of the device.

  6. NBVvoBIAjs2eFfc6

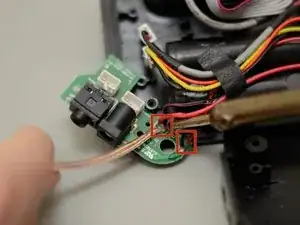

    • Desolder the two black and two red cables from the board.

    • These wires will need to be soldered to the replacement board when reassembling the device.

    • You can refer to iFixit's guide or this informative video for more information on soldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
