The power card connects your batteries to the computer.

  1. 1LvSAqP1lHsbjn2A
    • Turn the keyboard locking screw so that it is parallel to the space bar.

    • Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.

    • Lift the keyboard out by pulling it up and away from you. Rest the keyboard, face down, on top of the track pad.

  2. OOxGGCT1cYLJrrIV
    • Pull the keyboard ribbon straight up from the logic board. Place the keyboard aside.

    • The connector may be tight. Gently rock the connector from side to side while pulling directly upward to free it. You can use this technique on many of the cards and cables you'll be disconnecting.

    • Make sure you have removed the laptop battery and CD/DVD modules from the expansion bays before proceeding.

  3. xXLqar4m52POFPI1
    • Your laptop should look approximately like this.

  4. RjbEC5iCcCOOfLbZ
    • Remove the two silver Phillips #1 screws that attach the heat shield to the internal metal framework.

    • Lift the heat shield up and pull it toward you.

    On my M7572, these are T9s not Philips.

    Rufleyboy -

  5. 1RNBn42uEKZlcVLO
    • Your laptop should look approximately like this.

  6. lCLeEKFXCoVRjQ1D
    • Skip this step if your computer does not have an Airport card installed.

    • Firmly grasp the plastic tab attached to the Airport card and pull up and then to the right.

    • The Airport card is still attached to the antenna cable, so don't just yank it out of the slot.

    On mine, the airport card had been put it with the orange ribbon OVER the top, so had to unplug the righthand connector and then plug it back in after (see pic for Step 8)

    Rufleyboy -

  7. hPnOXJZEDBBTHUAg
    • Disconnect the antenna cable from the Airport card.

  8. v1umCnQD2ayHYROJ
    • Pull the battery cable directly up from the logic board.

    • Remove the battery from its holder by pulling up and to the left.

  9. iRsOOnRspKjTCPCi
    • Your laptop should look approximately like this.

  10. JkWpBVo56At4Ejxu
    • Remove the long silver Phillips #1 screw from the heat sink.

    • Remove the two T8 Torx screws that attach the heat sink to the processor.

  11. BstZaZL2ZCaSSDH1
    • Lift the heat sink up from the left side and pull it out.

    • If you need to mount the heat sink back into the laptop, we have a thermal paste guide that makes replacing the thermal compound easy.

  12. iABbhXu1DLVqcHkA
    • Grasp the plastic tab on the processor's right side and pull it directly up.

    • Some processors may be missing the plastic pull tab. In this case, we suggest using a non-metal tool to gently pry up the processor. Slip the tool's thin edge under the front right corner of the processor and carefully pry it up.

  13. qfUOSMWlUvnZYM3X
    • Your laptop should look approximately like this.

  14. D6umIYwqGBRMJPV5
    • Remove the black Torx screw from the right side of the modem.

    • Remove the small black plastic rectangle with four holes.

  15. GVweixJF4QUqNjSm

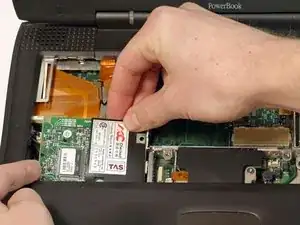

    • Use the tips of your fingers, a spudger, or a flat non-metal tool to get under the modem's edge and pry it up from its socket.

  16. NFXydLLodxD2ERAD
    • Disconnect the cable from the right side of the modem.

  17. rKxx12YX14KG6iys
    • Grasp the orange cable at the left end of the hard drive and disconnect it from the logic board.

    • Try to grasp the cable on the plastic connector rather than on the flexible cable section.

  18. fsgxpURjjPVLNscA
    • Grasp the plastic tab and pull the hard drive up and to the left, making sure that the metal bracket doesn't catch on the black plastic casing.

  19. hgXdDTvrvvjoVEdD
    • Your laptop should look approximately like this.

  20. LkKx3fFIGgdYutBM
    • Push the display back so that it lies flat.

    • Slip your index finger or a nylon tool under the clutch cover near the power button and pull gently upward until you feel it come free.

    • Repeat the previous step on the left side.

  21. xlFdfBQsXUYZqLwc

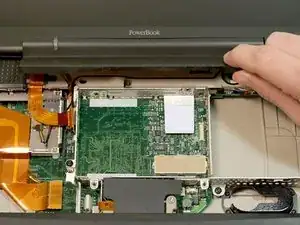

    • Lift the clutch cover up and off, rotating it toward yourself.

  22. 5MMR2Kp6cVOeOuLt
    • Grasp the orange display data cable and disconnect it from the logic board.

  23. WkSIBqPbkZ54y23H
    • Remove the single black Torx screw that fastens the display cable to the plastic casing.

    • Grasp the thin display inverter board at its left end; lift up and rotate toward yourself.

    • There are two tabs that hold the display inverter in place; these are what you need to get past in order to pull the board free.

  24. dvtNoL5VW4eRD1rn

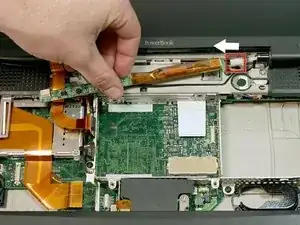

    • Disconnect the white inverter cable from the right end of the board

  25. 3XFOYPFLuEyMdHZR

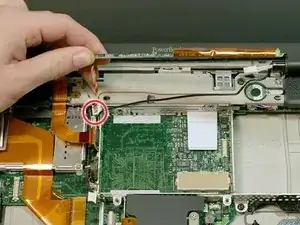

    • Disconnect the inverter plug, pulling directly up from the logic board.

  26. TwBPUgZcKMcsaVje
    • Turn the laptop around so that its back faces you.

    • Open the port door located at the back of the laptop.

    • Remove the four black Torx screws.

  27. RHobywZZ4qLwv4Lt

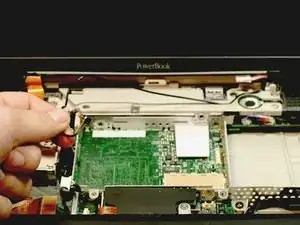

    • Returning to the front, pull the black Airport antenna up from its recessed housing.

    • Hold the display on both sides and pull directly up until its hinges are free of their mounts.

  28. CaVUDTCHLTTcCjPT

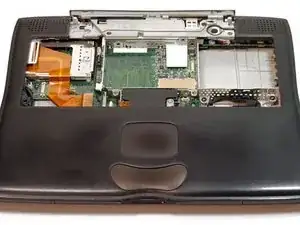

    • Your laptop should look approximately like this.

  29. ExPTm1t1QSevJOOc
    • Disconnect the wide orange cable that connects the airport card slot to the logic board.

  30. hsdMZGpcSkUEaWfD

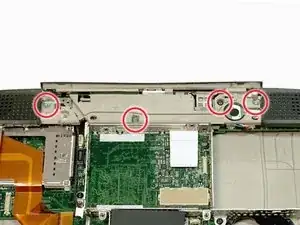

    • Remove the three long silver and one short black Torx screws from the beige plastic casing.

  31. JDJWVc5YEyIGhJ4V

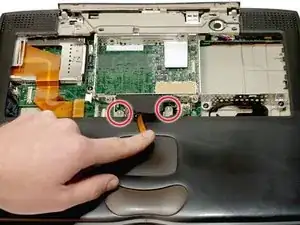

    • Slide the thin plastic shield away from you, out from under the black casing.

    • Disconnect the newly revealed thin orange ribbon from the logic board.

    • Remove the two long silver Torx screws.

  32. hGvnJVxyx2Dr4iVs

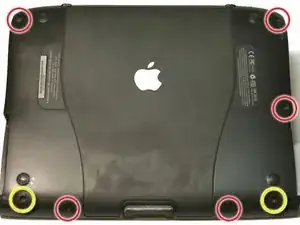

    • Turn the laptop over.

    • Remove the five short Torx screws from the bottom casing.

    • Remove the two long Torx screws in the front left and front right corners; make sure to put these back in the proper place when reassembling.

  33. Ha2AdIbbe3QZwB6B
    • Turn the laptop back over.

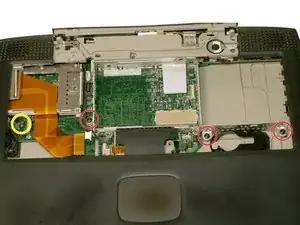

    • Remove three short black Torx screws from the metal frame.

    • Remove the small Torx screw to the far left that fastens the logic board to the casing.

  34. 23ynQ1O5PSAwcqED

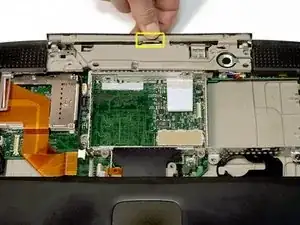

    • Grasp the upper plastic casing where it locks into the internal frame and pull back. When the plastic tab has cleared the slot that the casing locks into, pull up enough to keep it from locking back into place.

  35. Sxtb3nXMNA1iH43L

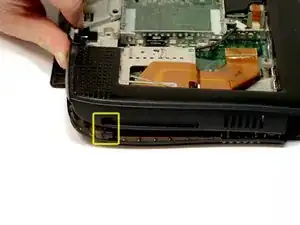

    • The PC card eject button on the laptop's left side prevents the upper casing from lifting up. In order to bypass the button, push it in far enough so that you can pull the upper casing's left side out and up beyond the button.

  36. W2cBMGgrmesgoLyV

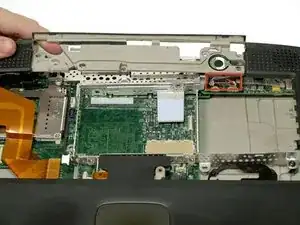

    • Lift the left side of the case partly up so that you can access and disconnect the audio in/out cables from the sound card in the upper right of the case.

    • Be careful not to lift the upper casing too far before you have disconnected the audio in/out cables or you may damage the sound card.

    • Remove the upper casing. Note that there are two tabs on the laptop's front that often cause the upper case to stick.

  37. oCmENUSG6gExtucD
    • Your laptop should look approximately like this.

  38. OtT4qAe5hyrolfoE
    • Remove the two long silver Torx screws from the power card in the center of the laptop

  39. MrjpMoFSaRtXkKDG

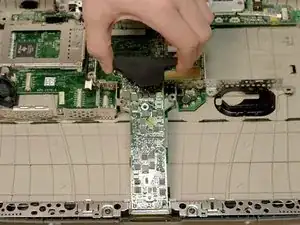

    • Grasp the power card near the black shield and lift up.
