Einleitung

This guide shows the hidden screws you must remove when replacing the keyboard.

  1. UIicFGjpFmhKthEX
    UIicFGjpFmhKthEX
    5tolrsUYAtgSUtwS
    • Use your thumbs to push the two battery retaining tabs away from the battery.

    • The battery should pop up enough to rotate it toward yourself and lift it out of the lower case.

  2. LhYBRZM4BxvdTnTv
    • Remove the three 2.3 mm Phillips screws securing the memory cover to the lower case.

  3. T5Jly2FAVmAMeZMq
    T5Jly2FAVmAMeZMq
    IkJluYEE2DWGDMpn
    • Lift the memory cover slightly and pull it toward yourself to remove it from the lower case.

  4. 6Z6iN26gl6HqikqC
    • Remove the following ten screws:

    • Two 14.7 mm shouldered Phillips.

    • Three 12.3 mm Phillips.

    • One 3.8 mm T8 Torx.

    • One 6.8 mm T8 Torx.

    • Three 1.3 mm Phillips.

  5. WhtAsIeIXgQf2saB
    WhtAsIeIXgQf2saB
    CkYSbqSDXS5GwgB5
    • The ZIF cable is located underneath the bottom RAM slot. If your PowerBook has both RAM slots occupied, make sure to remove the RAM chip.

    • Use your fingernails to separate the ZIF cable lock away from its socket. (Move the two brown bits down 1mm)

    • The ZIF cable lock will move about a millimeter away from the socket before it stops (see picture 2). Do not try to remove the ZIF cable lock.

    The ZIF cable locks are the little grey pieces seen on the cable-side ends of the white bar. They will slide, as per detailed picture, toward the cable.

    web -

    Where could I get a whole replacement for this connector ? Mine came off the motherboard

    Ruben De La Cruz -

  6. L1gT5A5dR5sFYY3m
    • Use the tip of a spudger to slide the trackpad ribbon cable out of its socket.

  7. HFHVLbUMusMRgfCR
    • Remove the four 3.4 mm Phillips screws from the PC card side of the PowerBook.

    • When replacing these screws, you must reinstall each screw in the correct order. Begin by installing the screw closest to the display hinge, and go out from there.

  8. okUAwPRMRmfTblNR
    • Remove the four 3.4 mm Phillips screws from the DVI connector side of the PowerBook.

    • When replacing these screws, you must reinstall each screw in the correct order. Begin by installing the screw closest to the display hinge, and go out from there.

    • During reassembly, make sure to reinstall the two screws on the right into their appropriate locations, and not the DVI port anchor holes.

  9. YaQ2IrVcgcv4CKwD
    YaQ2IrVcgcv4CKwD
    mWHSgMljSGCAfPGe
    • Depress the display latch release button and open your display.

  10. aER1QIEnJOMGkO4B
    aER1QIEnJOMGkO4B
    LeEqtnJoUWhbbQji
    • Starting near the display, lift the upper case straight up off the lower case, minding any cables that may get caught.

    Sometimes the "tags"/"lugs" that are around the edge of the top & bottom frame, be careful not to bend them as when putting back the covers they will not merge. I used a screwdriver to poke through the hole the screw was supposed go in & push against the "inside nut" to let the tag from the top slide down between the 2 tags. The "inside nut" is like the one right next to the ribbon cable as shown in Dia.14. The screws are from Dia. 7&8.

    harry allcock -

    in what direction does one move the ZIF cable lock? what/where is its socket?

    Ian -

    When putting the machine back together (following steps in reverse), make sure the trackpad ribbon cable comes through the underside of the computer — there is an opening that the cable needs to go through and you will want to “thread the needle” with the cable before securing the upper case again.

    Tim -

    At the end of these instructions, Jimbo Combo also mentions this, but it should be repeated.

    Because the trackpad/keyboard cable is part of the top face/keyboard/trackpad assembly, it’s actually a PITA when doing reassembly.

    One way to make this step simple is to do the following:

    1. straighten the Zif cable removing all of the bends that is probably has in it.

    2. Start putting the top face/keyboard/trackpad assembly on, starting with the edge AWAY from the display.

    3. Place the laptop on it’s side, and thread the cable through the opening, using tweezers if necessary so that it fully goes through the opening in the case.

    4. Place the laptop back to the way it was and proceed.

    ECJohansen -

  11. OnSYZrOAVXKH4ufC
    • Remove the two Phillips screws securing the electronic track pad button to the lower case.

  12. 1tu6Vt1dCjMRpdQD
    1tu6Vt1dCjMRpdQD
    CZSZNIIY6FyaoEk3

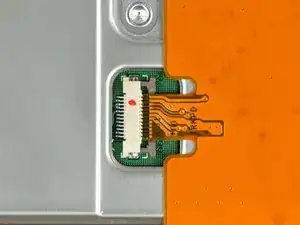

    • Use your fingernails or the tip of a spudger to separate the ZIF cable lock from its socket.

    • The ZIF cable lock will move about 1 mm and stop. Do not attempt to completely remove the ZIF cable lock.

  13. bLjWIhR6vYfA5CVS

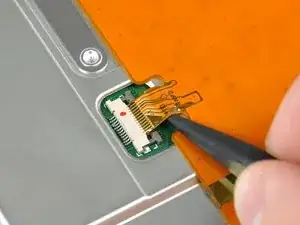

    • Use the tip of a spudger to pull the track pad ribbon cable out of its socket.

    • Do not lift this cable too much from either side as it is fragile and easily torn.

  14. kmsHoNeNMFhZUOst

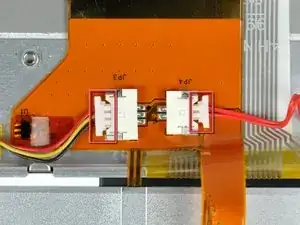

    • Disconnect both of the following connectors from the logic board:

    • Sleep sensor cable.

    • Power button cable.

    • Be sure to pull only parallel to the face of the logic board, as pulling up on the socket will break it off the logic board.

    • When pulling these connectors away from their sockets, it is helpful to use your fingernails to pull on the ears at each side of the connector.

  15. UgEofXDGCgEwGoHP
    UgEofXDGCgEwGoHP
    tUpSCHtNSIWn4TkW

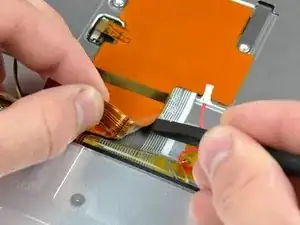

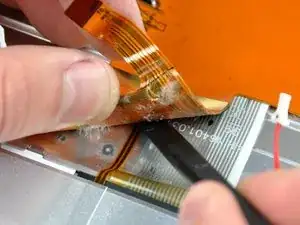

    • Starting near the keyboard, use the flat end of a spudger to help separate the adhesive as you peel back the track pad ribbon cable.

    • Be very careful as you are peeling the ribbon cable back because it is very fragile and easily torn.

    • Also be sure to not pull on the keyboard and backlight ribbon cables underneath the track pad ribbon cable, as they are also very fragile.

  16. NCEMcFrofqYJuAs5
    NCEMcFrofqYJuAs5
    NcWgN53kNZ4ZBeBY

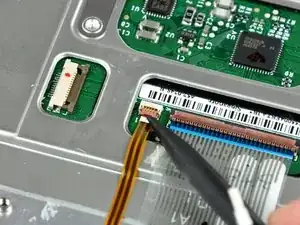

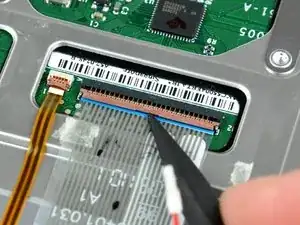

    • Use the tip of a spudger to pry up the ribbon cable retaining flaps on both the keyboard and backlight ribbon cable sockets.

  17. qIdDwPWeGGeD24Pm
    qIdDwPWeGGeD24Pm
    wDDsH3wEpyNAAIZJ

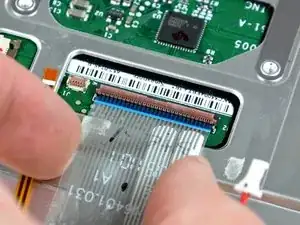

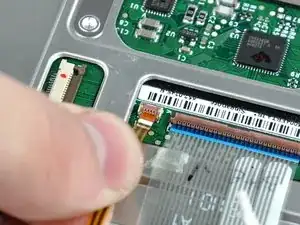

    • Pull both the keyboard and backlight ribbon cables out of their sockets.

  18. BlT5IyOYCG11KcDy

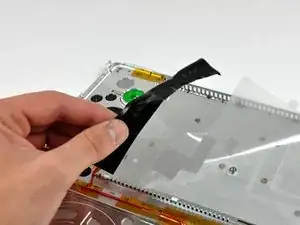

    • Remove the large protective sticker from the underside of the keyboard enclosure on the lower case.

  19. x1tCrQMPDQH1EFGK
    x1tCrQMPDQH1EFGK
    23TLph5RnDSsZZy3

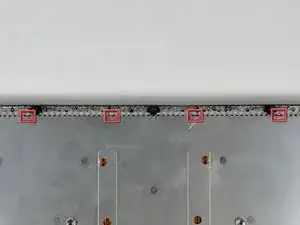

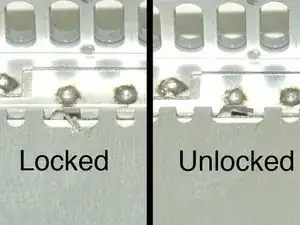

    • Use the tip of a spudger to bend each of the four keyboard lock tabs away from the underside of the keyboard enclosure on the lower case.

    • Included is a picture of how the tabs should look when they are unlocked.

  20. CvkWwkj4B6KAKEeD

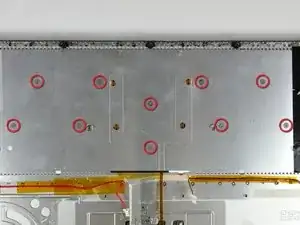

    • Remove the ten short Phillips screws securing the keyboard to the lower case.

  21. 4YRdPOHkBNbm3UHk

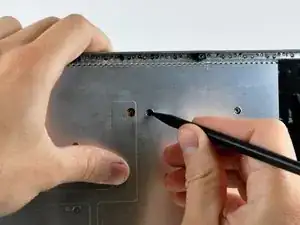

    • Use the tip of a spudger to push a screw lug near the center of the keyboard, separating it from the lower case.

  22. G6QOX4UeliHuo5o5
    G6QOX4UeliHuo5o5
    dSvdMrQXLMmfIRtu

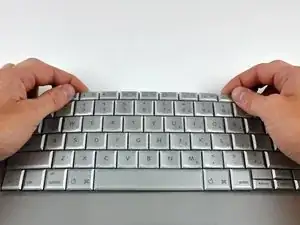

    • Bow the keyboard out slightly to release the two tabs near the upper corner on each side of the keyboard.

    • Rotate the keyboard toward yourself and lift it out of the upper case.

    • When reinstalling your keyboard, make sure to feed both the keyboard and backlight ribbon cables through the slot near the lower edge of the keyboard enclosure on the lower case (shown in red).

Abschluss

To reassemble your device, follow these instructions in reverse order.
