ProntoTec Axius Speaker Replacement

Geschrieben von: Antonio Irons
  • Kommentare: 0
ProntoTec Axius Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Extended use of the device speakers at high volumes can result in them becoming damaged or non-functioning. This guide outlines how to access and replace the device speakers if they become malfunctioned.

  1. QJLPHtibBkwG23xZ

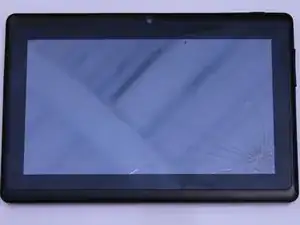

    • Make sure the device is completely turned off before you begging taking it apart to avoid electrocution risks.

    • Place tablet face-up on a flat table.

  2. He2aXkEQBFHsuCEr

    • Starting near the headphone port, fit the flat end of the spudger in between the screen and back case.

    • Pry the back case from the screen around each point on the device to release the clips securing the case halves to each other.

  3. tdvLEgbJZpqBBF1D

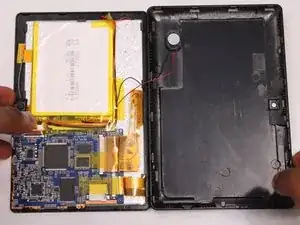

    • Gently remove the back case of the device and lay it in a flat surface as shown in the photo.

    • Don't pull the back of the device too far apart so it doesn't damage the wires that are connected to the speaker in the back of the device

  4. iJsupyYVYcpis2L5
    iJsupyYVYcpis2L5
    TYBU5bx1njTc5gLo
    AosIisFvtDdinPYI

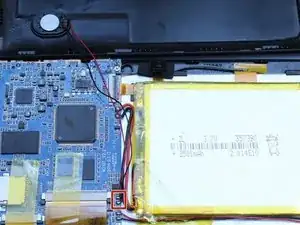

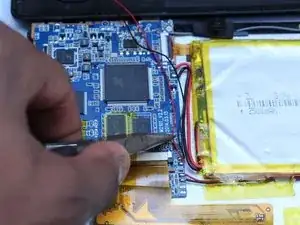

    • Disconnect the red wire connecting the speaker to the motherboard by using a soldering iron to melt the contact point.

    • Once the solder is melted, use pliers to pull the wire away from the motherboard

  5. iUbad5iagsW5SNqA
    iUbad5iagsW5SNqA
    ZDAVnMBlplHfTiuj

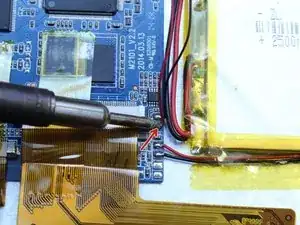

    • Repeat Step 4 with the black wire connecting the speaker to the motherboard.

    • Don't leave the soldering iron too long on top of the wire so it doesn't melt any other component in the motherboard or surrounding the area.

    • If soldering is new to you, check out this helpful guide on soldering and desoldering connections.

  6. JFUkRP6VFKyk3loG
    JFUkRP6VFKyk3loG
    KBVnQaiGqJsKgnZN

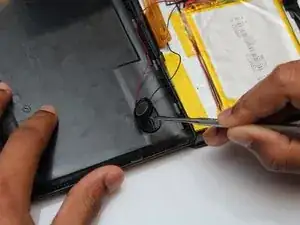

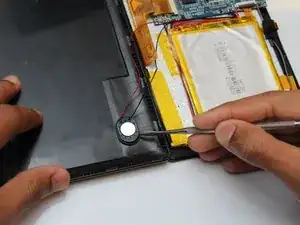

    • Using a spudger gently remove the speaker from the back of the device.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The metal spudger is great when you need serious prying power, but the regular black nylon spudger should be used whenever possible.

Abschluss

To reassemble your device, follow these instructions in reverse order.
