Propeller Replacement

Geschrieben von: Adrian Eaton
  • Kommentare: 0
Propeller Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

  1. qopy1SkFkUZ3bGbT
    qopy1SkFkUZ3bGbT
    cRBltfUoKNcJUCCi

    • Rotate the propeller to locate the propeller set screw.

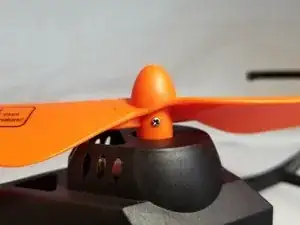

  2. EKbnBVLhlfVDcD3R
    EKbnBVLhlfVDcD3R
    imEWvByghk6r3WJg

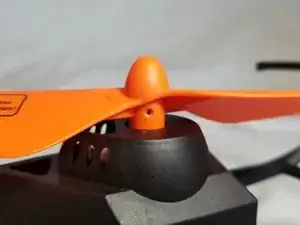

    • Unscrew the single 4 mm Phillips screw.

  3. qDTSAjJSfdkvrQXa
    qDTSAjJSfdkvrQXa
    wiNLMbwQMFlJkDho
    NVZT5byDgUZqryp6

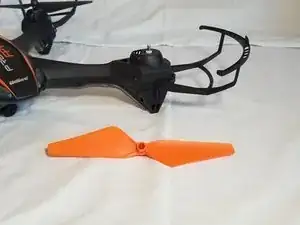

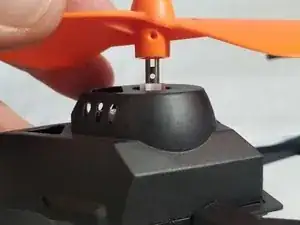

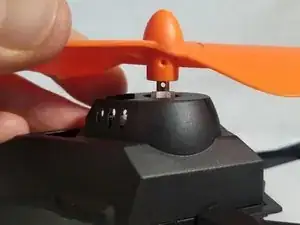

    • Slide the propeller up and off the motor assembly.

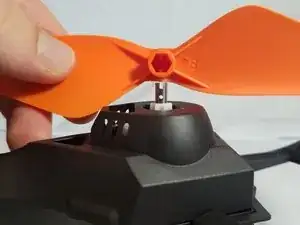

  4. e42JPN2HSpZpvby4
    e42JPN2HSpZpvby4
    pMLDOqCMk32CcevR
    S13wSjeqHTkegplZ

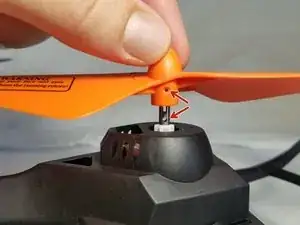

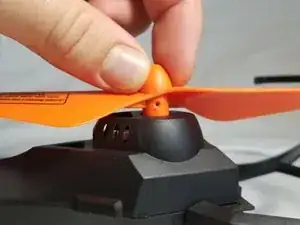

    • To attach the new propeller, align the hexagonal slot in the propeller base with the keyed motor shaft.

    • Ensure one of the screw holes on the motor shaft aligns with the propeller screw hole.

    • Slide the propeller onto the motor shaft.

  5. GDMXfpZqCL5shuNl
    GDMXfpZqCL5shuNl
    cpuhmwRVogFUmt2c

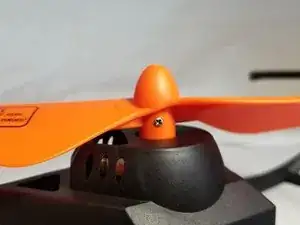

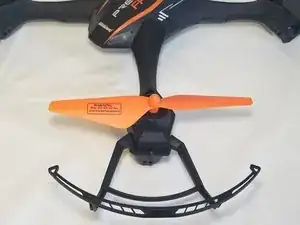

    • Finally, fasten the set screw back into the propeller.

    • Congratulations, you have completed this propeller replacement guide! If your drone continues to malfunction, try exploring the motor replacement guide here
