Protocol Dronium III AP Light Bulb Replacement

Geschrieben von: Steven Mooers
  • Kommentare: 0
Protocol Dronium III AP Light Bulb Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide provides instructions for the removal and re-installation of the drone L.E.D. bulbs. This guide requires soldering. Please see this guide for more information on how to solder and desolder connections.

  1. QqEfM6asDDCxWOtC
    QqEfM6asDDCxWOtC
    KYZZeITNr6MsWPp5

    • Ensure the drone is powered off.

    • Press in and lift battery compartment cover.

    • A soft pry tool may be used for easier access.

  2. mtZK6qwPcxoJIFZu

    • Remove battery pack from body of drone.

  3. d22JHwJtR42NJBhR
    d22JHwJtR42NJBhR
    xEVTgfo6VNuF1j3H

    • Disconnect white connectors between the battery pack and drone.

  4. jsLTX1KxbPJhbYsI

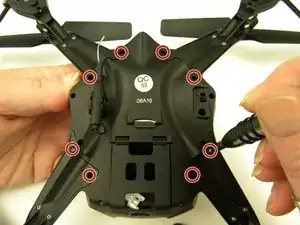

    • Remove the eight (8) 5mm Philips screws attaching the motor arms to the body using a Philips J00 screwdriver.

  5. NFFTZI6gV4rZErZR
    NFFTZI6gV4rZErZR
    odWJPiEP2LX6jLyZ

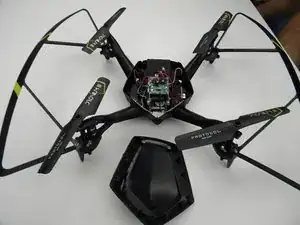

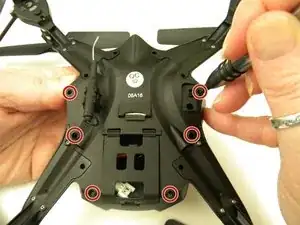

    • Remove the six (6) 5mm Philips screws attaching the Body Cover to the Body of the drone using a Philips J00 screwdriver.

    • Remove the Body Cover.

  6. yXCs6abaflB5geNS
    yXCs6abaflB5geNS
    MydKWsuRdScVkdZq

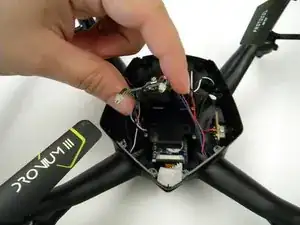

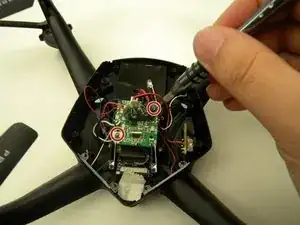

    • Remove the two (2) 5mm Philips screws attaching the Motherboard to the body of the drone using a Philips J00 screwdriver.

    • Lift the Motherboard off the mounting position.

    • Do not pull hard on the Motherboard as solder connections are fragile.

  7. mojTYB6VJtjXEHMq
    mojTYB6VJtjXEHMq
    feVbLWe2AiiLPUMD

    • This step contains a tool that can present a potential burn hazard.

    • Prepare and warm up a soldering iron.

    • Position Motherboard so that the L.E.D. bulb solder joints are accessible.

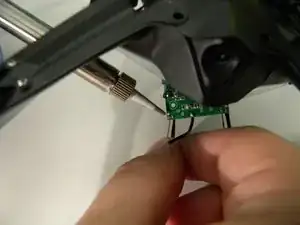

    • Use the soldering iron to melt the solder joints.

    • For more detailed instructions on how to solder, visit out How to Solder and Desolder Connections guide.

    • Remove the L.E.D. bulb from the Motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
