Protocol Neo-Drone AP Controller Switch Replacement

Geschrieben von: Andrew
  • Kommentare: 0
Protocol Neo-Drone AP Controller Switch Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

20 - 30 Minuten

Einleitung

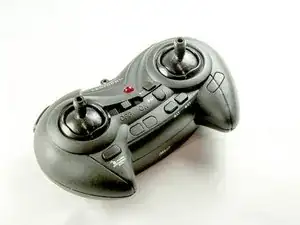

This guide will show how to replace one of the controller buttons should they become inoperative. Soldering is a skill needed to complete this action. The button being replaced is 6mm x 6mm x 9mm.

  1. 2iwJN6SADXFDTPYk
    2iwJN6SADXFDTPYk
    LfJFKudSB4wEOe6N

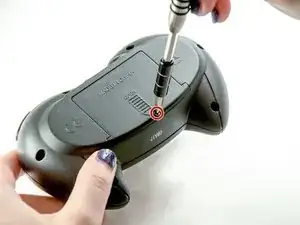

    • Remove the single 6.5mm Phillips #1 screw from the battery cover.

    • Remove the three AAA batteries.

  2. iOnuB1PtvH3bIuNn
    iOnuB1PtvH3bIuNn
    cFPIejvnAbZuelS5

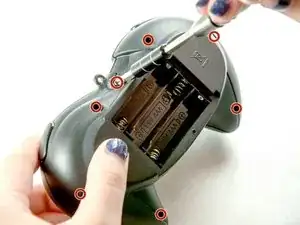

    • Remove seven 6.5mm Phillips #1 screws from the back panel.

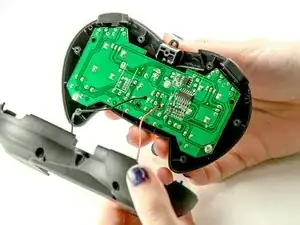

    • Pull the back panel up to separate it from the front panel.

  3. HWOuoOx6yhwx4cTu
    HWOuoOx6yhwx4cTu
    4AJPd4AoRFlXnoFG

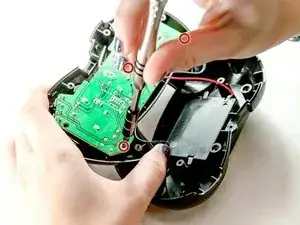

    • Remove three 4.5mm Phillips #1 screws from the motherboard.

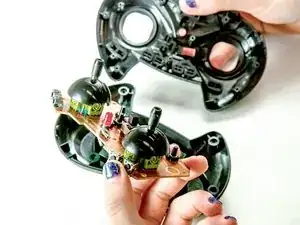

    • Pull the motherboard out of the case.

  4. s1MYVB2pEGkP5gRD
    s1MYVB2pEGkP5gRD
    2tLtTvMPOfioJnF6

    • Here is a link to the iFixit Soldering Guide

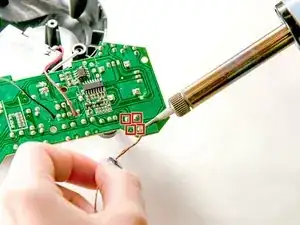

    • Use a soldering iron to remove the solder form the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
