Protocol Neo-Drone AP Motor Replacement

Geschrieben von: Andrew
  • Kommentare: 0
Protocol Neo-Drone AP Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide shows you how to replace the motors on your drone. Soldering is a skill required for this task. Replacement motors can be found on the manufacturer's website.

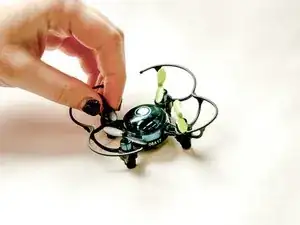

  1. WnpYcEyW1U6M5oxJ
    WnpYcEyW1U6M5oxJ
    rQCmCerZiANXuXHQ

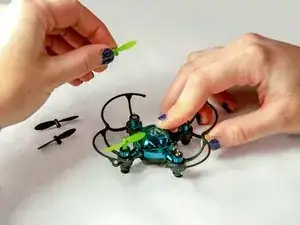

    • Remove the four blades by pulling them off of the motors.

  2. 46EANg4QStynRTXY

    • Remove the blade guards by pushing the guards downward towards the padded feet.

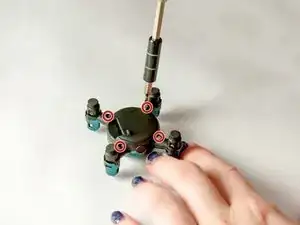

  3. dZsrtfjOYwTk3mnq

    • Remove the four 4.5mm Phillips #0 screws from the back panel.

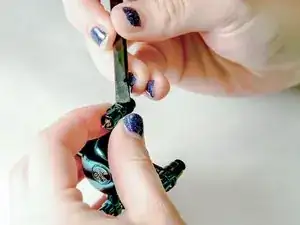

  4. nQVEYlGWnpbaxlZm
    nQVEYlGWnpbaxlZm
    IZmsKmBTD1TUDTFU

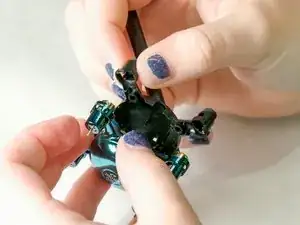

    • Use the flat end of a spudger to pry apart the the two pieces.

    • Lift the back panel up to separate it from the front panel.

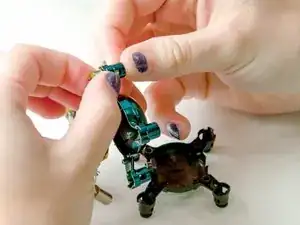

  5. uRNb3gyBvI4KFxgW

    • Pull the four motors out of the case.

    • The motors are still soldered to the motherboard.

  6. YfVdFLvlJMg4MsUd

    • Here is a link to the iFixit Soldering Guide

    • Use a soldering iron to desolder the motors from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
