Protocol Videodrone AP Camera Replacement

Geschrieben von: Karan Paranganat
  • Kommentare: 0
Protocol Videodrone AP Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide shows how to replace the camera module for the Protocol Videodrone AP Drone. This is a slightly lengthy process as you will have to disassemble most of your drone. The camera module itself is both the sensor housing + the circuit board connected it it. You will only have to replace the circuit board, as the sensor housing is attached to it.

Remember to use the included #0 Phillips head screwdriver that came with your drone.

A soldering iron is required, so keep one ready.

You will also need a replacement camera module.

  1. NvIJyr2DcDrSTb46

    • Power off the drone before proceeding with this repair.

  2. 1CqTFouRkeLJvKbr

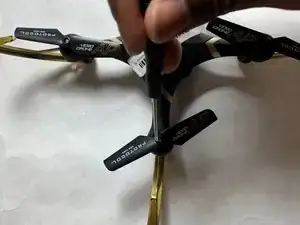

    • Remove the propeller screws (1 per propeller).

    • You can use the Phillips #0 screwdriver if you don't own the one included with drone.

  3. NjfwdoXrwtCdBmiE
    NjfwdoXrwtCdBmiE
    Xv2EtxcPsWjGkmEj

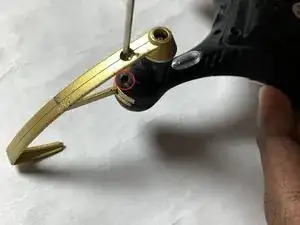

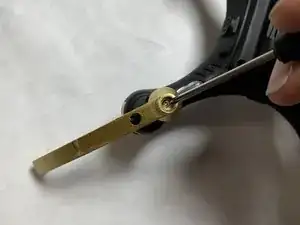

    • Remove the screws holding on the propeller guards using the Phillips #0 screwdriver (2 per propeller guard).

  4. olXQCoRipFqBrGXR
    olXQCoRipFqBrGXR
    WJUrO4OYqAIjKJRM

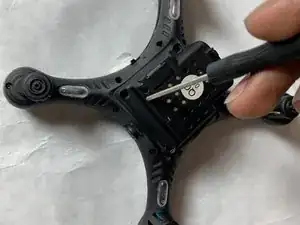

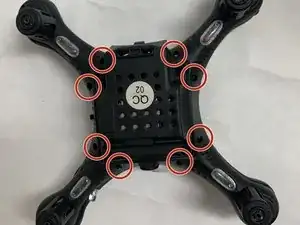

    • Using the Phillips #0 screwdriver to remove the eight screws securing the body of the drone.

  5. wiVQS3TupUYJYkmv

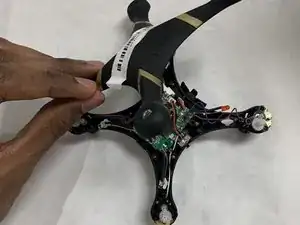

    • Remove the case.

  6. ma4ZbMcrHaWRSmVV

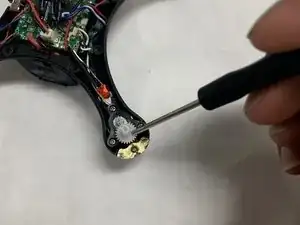

    • Remove the propeller motor screws (3 per motor).

    • The plastic screw housing is attached to the motor.

  7. 3A2JFAfXvbVmkGLv
    3A2JFAfXvbVmkGLv
    HUvpC6gccFfuH6CH
    AELDorLW3ySCTtvy

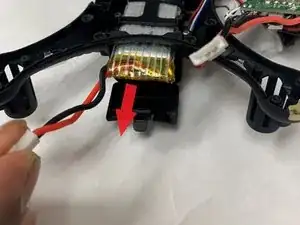

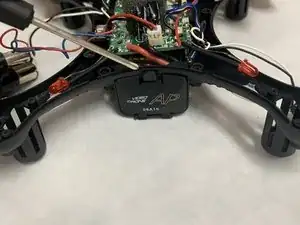

    • Depress the tab to open the battery housing.

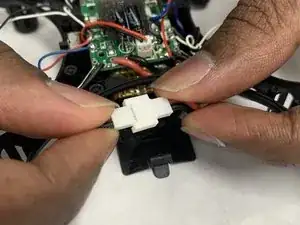

    • Disconnect the battery connectors

    • Remove the battery.

  8. L5Ji213JDXLXdCZP

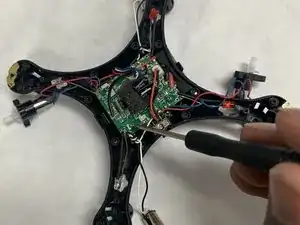

    • Using the Phillips #0 screwdriver, remove the four circuit board screws.

    • Remove circuit board.

  9. uehoTaSwxCxWSpoV
    uehoTaSwxCxWSpoV
    L3CtXN6HXnprla3y

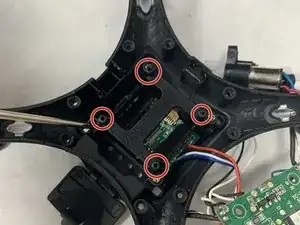

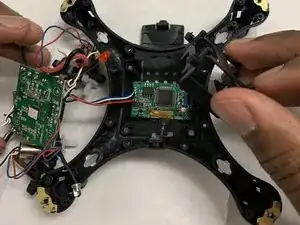

    • Remove the four battery housing screws with the Phillips #0 screwdriver.

    • Remove the battery housing to reveal the camera circuit board underneath.

  10. YLUGWTgRAWarrXqP

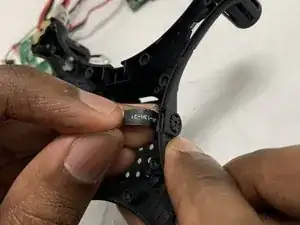

    • Pull upwards on the strip to remove the camera out of its slot.

  11. aTaVGiQXE2ogrp1m

    • Remove camera circuit board from housing.

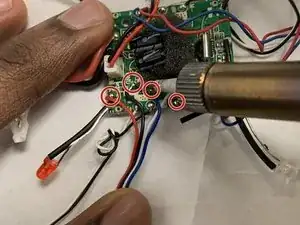

    • On the main circuit board, desolder the the connection points connecting to camera circuit board.

    • Four wires need to be desoldered. Colours include: Red, white, black and blue.

    • For more information on soldering connections, please visit the How to Solder and Desolder Connections guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
