The Pyle Astro's power button is a simple push button switch that is soldered onto the main PCB. Use this guide to replace your tablet's power button.
-
-

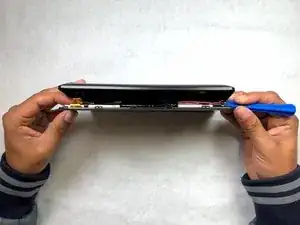

Using the plastic opening tool, work your way along the edge of the tablet.
-

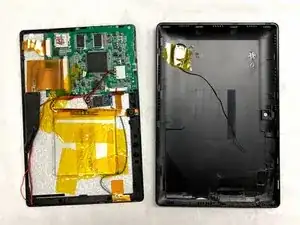

Once all clips are released, gently open and separate the front display assembly and the rear plastic panel.
-

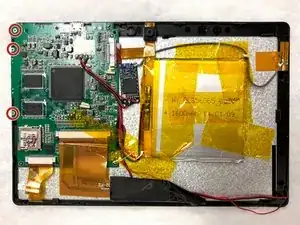

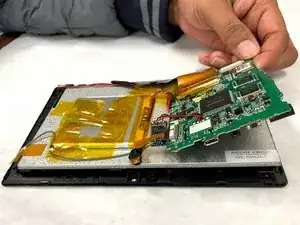

Place the front display assembly facing front side down to expose the inside.
-
-
-

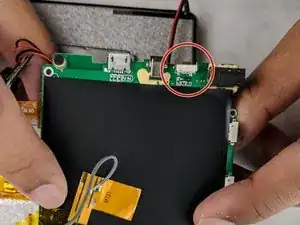

Flip the PCB board upside down to expose the solder joints for the power button.
-

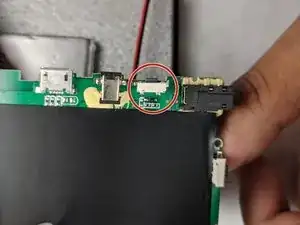

Gently de-solder the four solder joints of the push button switch (power button).
-
-
-
-
Install the new push button switch and solder all the connections back into place.
-
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
