Use this guide to replace the power port of the RCA Lyra X2400.

  1. bHHIBmyBOiG4SYLP
    bHHIBmyBOiG4SYLP
    qJ22BNWQdMbiygBl
    l1U1LjvxthUBFPPA
    • Using slight pressure with your finger on the word "OPEN", slide the battery plate down.

    • Remove the battery plate.

    • Place your finger at the bottom of the battery.

    • Lift up on the battery until it pops out from the LYRA X2400.

  2. drO36gfGoaPUWbBr
    drO36gfGoaPUWbBr
    dFrHjRoeqpKfJi3v
    • Remove the two Phillips screws from the silver cover at the top of the Lyra.

    • Slowly wiggle the silver cover while pulling it away from the device.

  3. mSWjogCEjHZNEsFV
    mSWjogCEjHZNEsFV
    NaYDx5uAWXQWNVSG
    • Remove the two Phillips screws from the bottom of the device, next to the charger port and Compact Flash release button.

    • Pull the silver case from the bottom of the device.

  4. PnVlGHOmxSNbGQGO
    PnVlGHOmxSNbGQGO
    3sWE4AsA61vymGr5
    sigmxLubsUfmNuXM
    • Carefully pry up the screen with a plastic opening tool.

    • Disconnect the screen's ribbon cable from the circuit board.

    • Remove the screen.

  5. XArOcxUANAqSXP4L
    XArOcxUANAqSXP4L
    PlL5Beh5D2qXcdCe
    • Open the case of the Lyra.

    • Remove the four screws that secure the motherboard to the frame of the Lyra X2400.

  6. Q1KWK1cvItouDxOk
    Q1KWK1cvItouDxOk
    EEPQhBKNbtWXXE6U

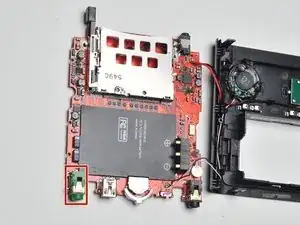

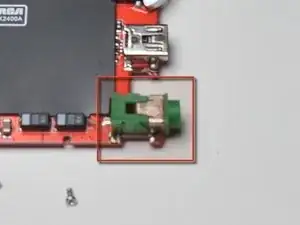

    • Locate the DC power adaptor component on your Lyra X2400. If you are having difficulty locating this component the picture to the left will show you where it is located.

    • Start using solder/desolder tools to remove the DC power adaptor.

    • If you need information on soldering, check out this guide.

    • Once removed replace it with the new working DC power adaptor.

    • Use the soldering tools to reattach the component back to the main logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
